Crankshaft End Play
GENERAL EQUIPMENT
| Dial indicator |
| Dial indicator fixture |
- Determine the end float

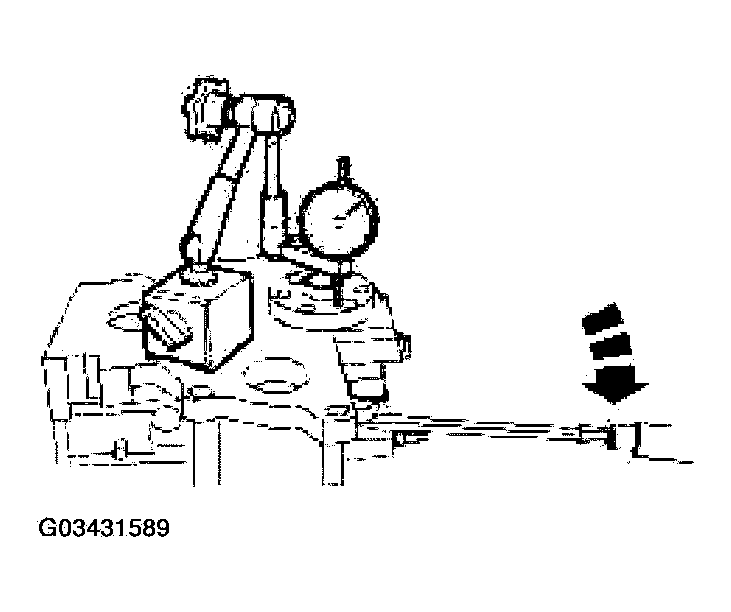

- Place on the dial indicator and bracket.
- Determine the end float by raising the crankshaft with the aid of a screwdriver.
- If necessary, correct the end float by using new thrust half washers.
NOTE:
Operation for vehicles with Zetec-E engines only. Dismantling the crank gear is not permitted on Zetec-SE engines.
