Shift Indicator

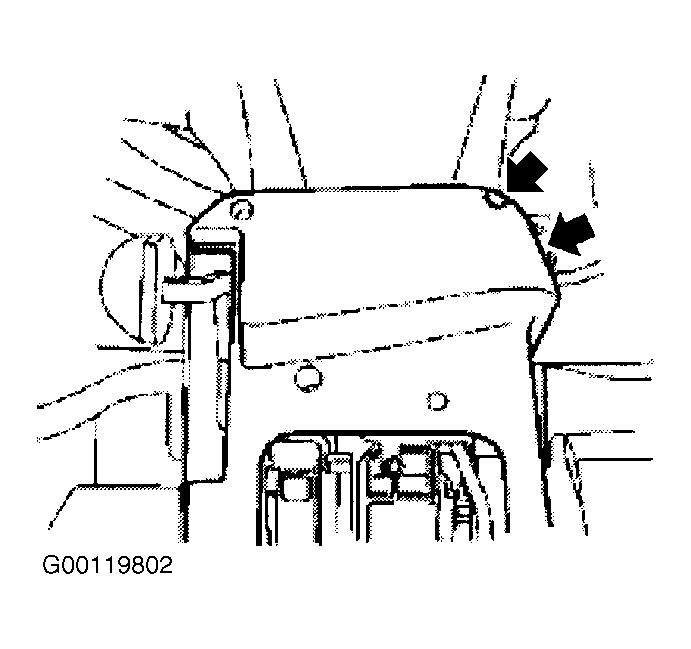

- Remove the screws and the lower steering column opening finish panel. Remove the 3 screws and the lower steering column shroud. See Fig 1

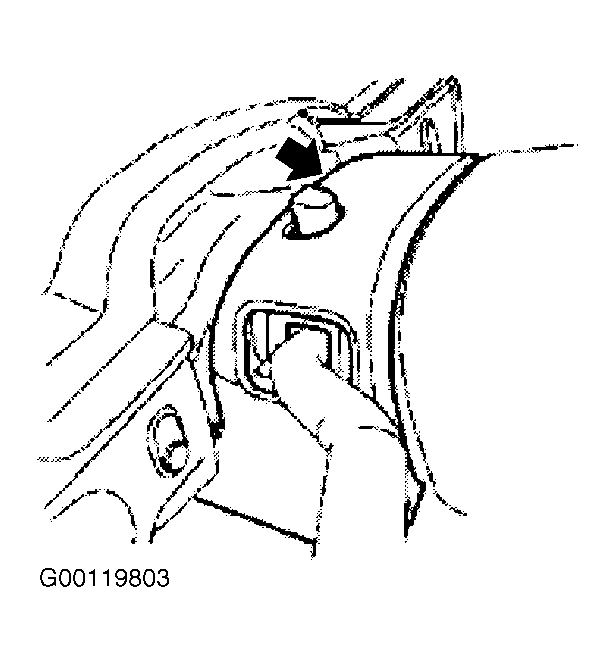

. Remove the screw retaining the upper steering column shroud to the steering column. See Fig 2
.

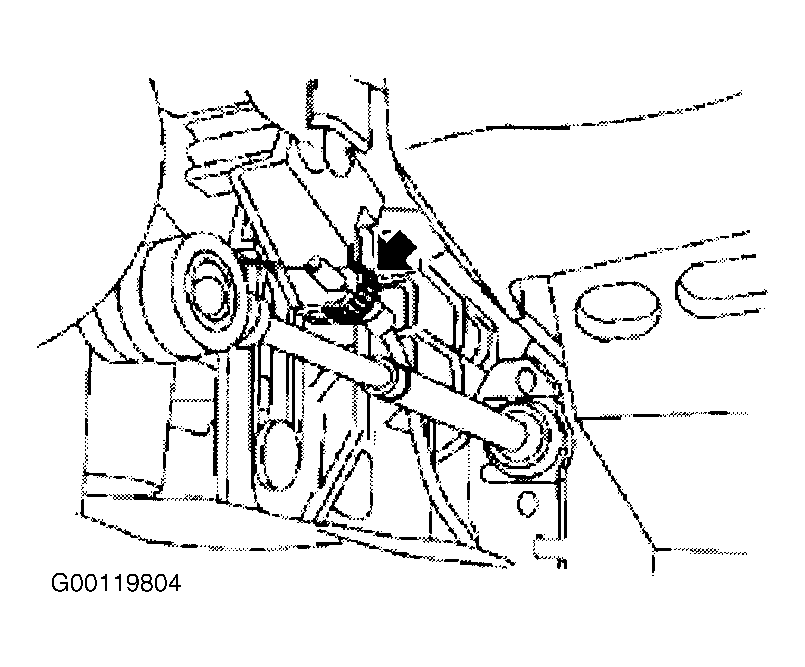

- Remove the upper steering column shroud. See Fig 3
. Rotate the gearshift lever clockwise until it bottoms out (1st gear), then rotate it counterclockwise 3 detents ("OD" position). Hang a 3 lb. (1.4 kg) weight on the gearshift lever.

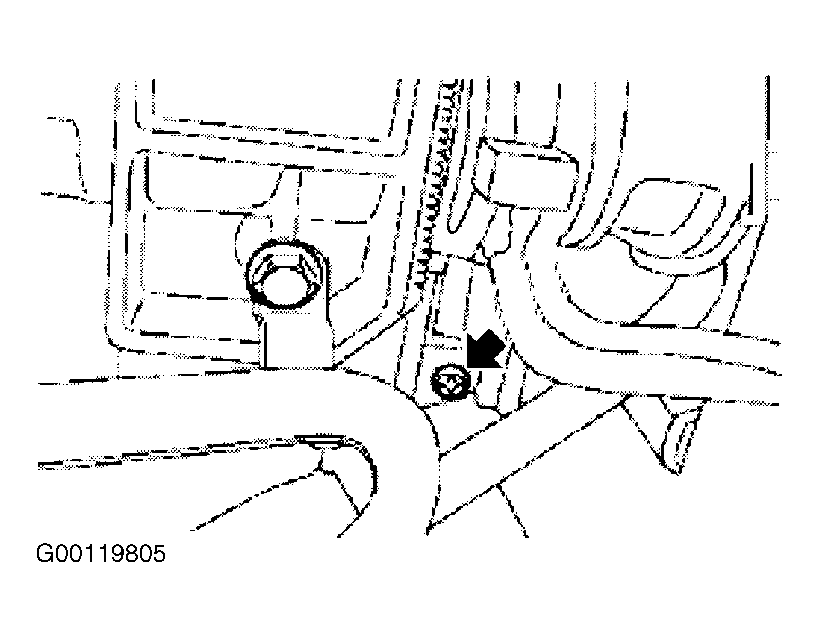

- Rotate the thumbwheel to center the gearshift lever indicator in the middle of the "OD" position. See Fig 4
. Remove the 3 lb. (1.4 kg) weight. Rotate the gearshift lever into each detent to verify that the gearshift lever indicator matches the selected range.
- Readjust, if necessary. Install the upper steering column shroud. See Fig 3
. Install the screw retaining the upper steering column shroud to the steering column. See Fig 2
. Position the lower steering column shroud and install the 3 screws. Position the lower steering column opening finish panel and install the screws.
