Checking Procedure

Vehicle ride height can only be measured accurately after accurate trim test has been performed using New Generation Star (NGS) tester, or equivalent scan tool. See appropriate ELECTRONIC article in SUSPENSION. To calculate ride height, see Fig 1 and Fig 2 . See RIDE HEIGHT SPECIFICATIONS table. If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.

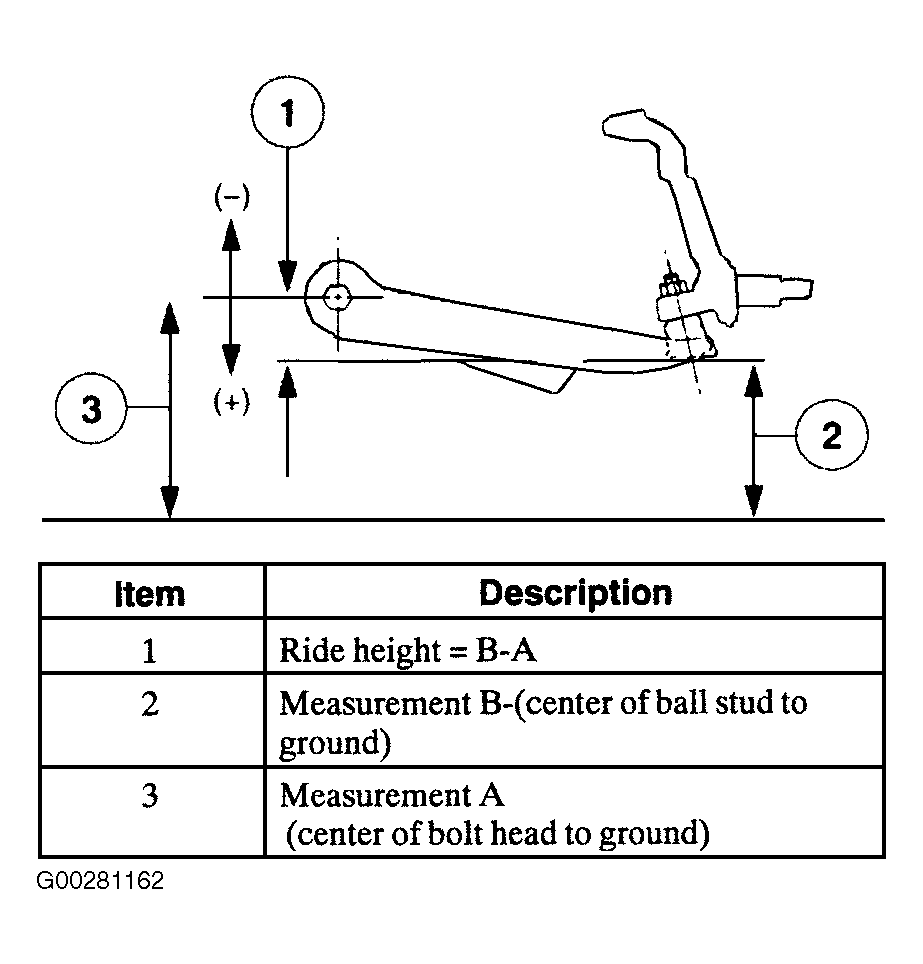

Fig 1: Front Ride Height Measurement

Courtesy of FORD MOTOR CO.

Fig 2: Rear Ride Height Measurement

Courtesy of FORD MOTOR CO.

RIDE HEIGHT SPECIFICATIONS

Application

⁽¹⁾ In. (mm)

Base

Front

0.67-1.67 (16.9-42.3)

Rear

5.13-4.73 (130.4-145.6)

Air Suspension

Front

0.58-1.58 (14.7-40.1)

Rear

4.91-5.51 (124.8-140)

Handling Package

Front

0.52-1.52 (13.3-38.7)

Rear

4.91-5.51 (124.8-140)

Police/NGV

Front

0.54-1.54 (13.7-39.1)

Rear

4.91-5.51 (124.7-139.9)

⁽¹⁾	See procedures for measurement calculations/points.
