Removal And Installation: Actuator: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio unit.
  2. Remove the LH instrument panel insulator. Refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the electronic actuator.
    1. Disconnect the connector.
    2. Remove the screws.
    3. Pull down to release the actuator shaft and remove the actuator.

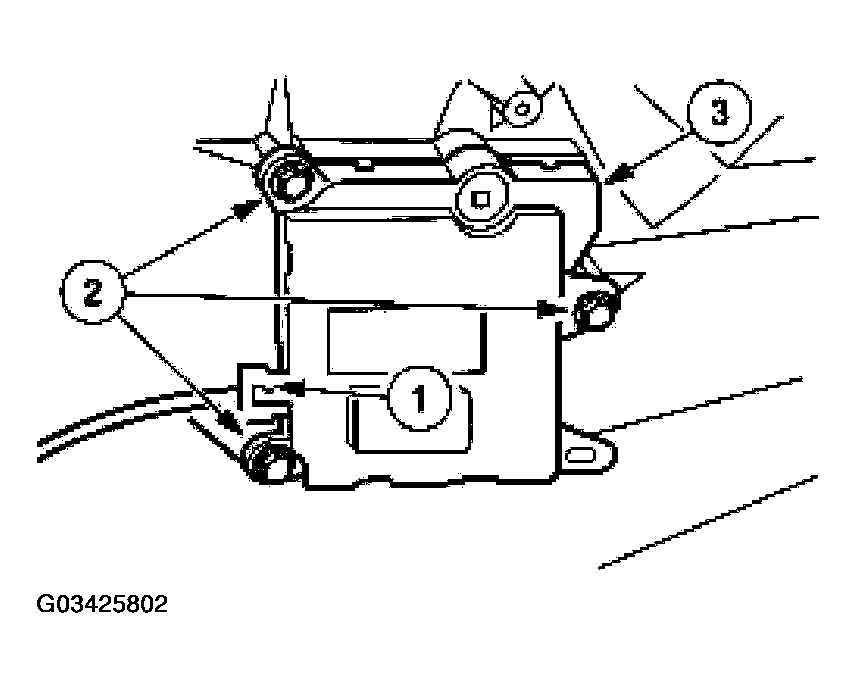

      Fig 1: Removing Electronic Actuator
      G03425802Courtesy of FORD MOTOR CO.
