Oil Pump: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
Install the engine front mount.

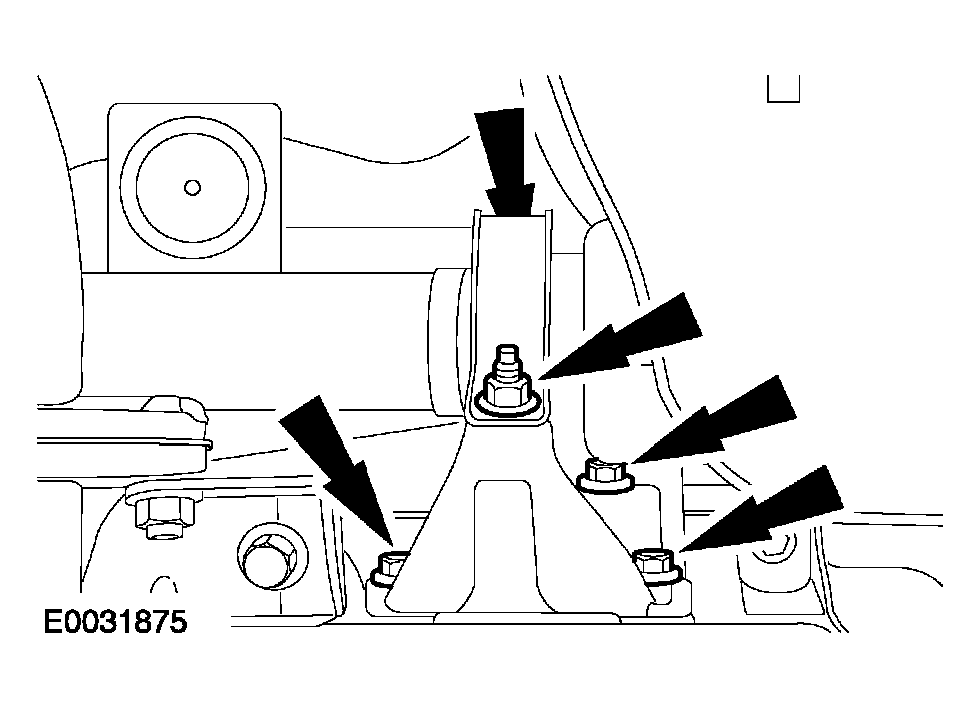

Fig 1: Installing Engine Front Mount
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
Detach the air conditioning (A/C) compressor from the bracket and secure it on the radiator crossmember.

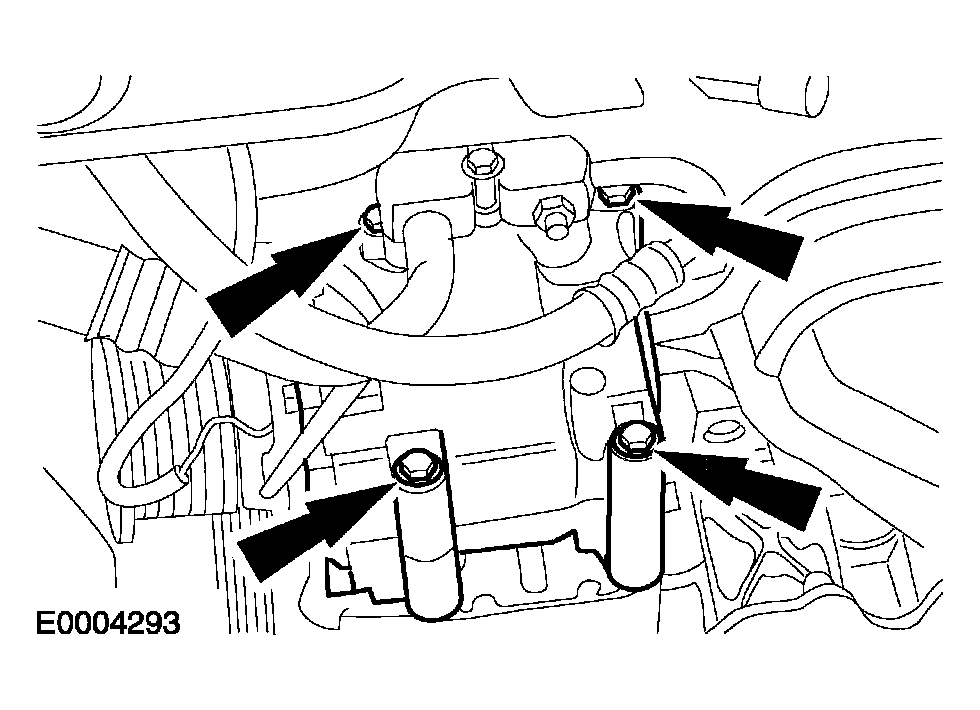

Fig 2: Detaching Air Conditioning Compressor From Bracket
Courtesy of FORD MOTOR CO.
Remove the A/C compressor bracket (engine shown removed for clarity).

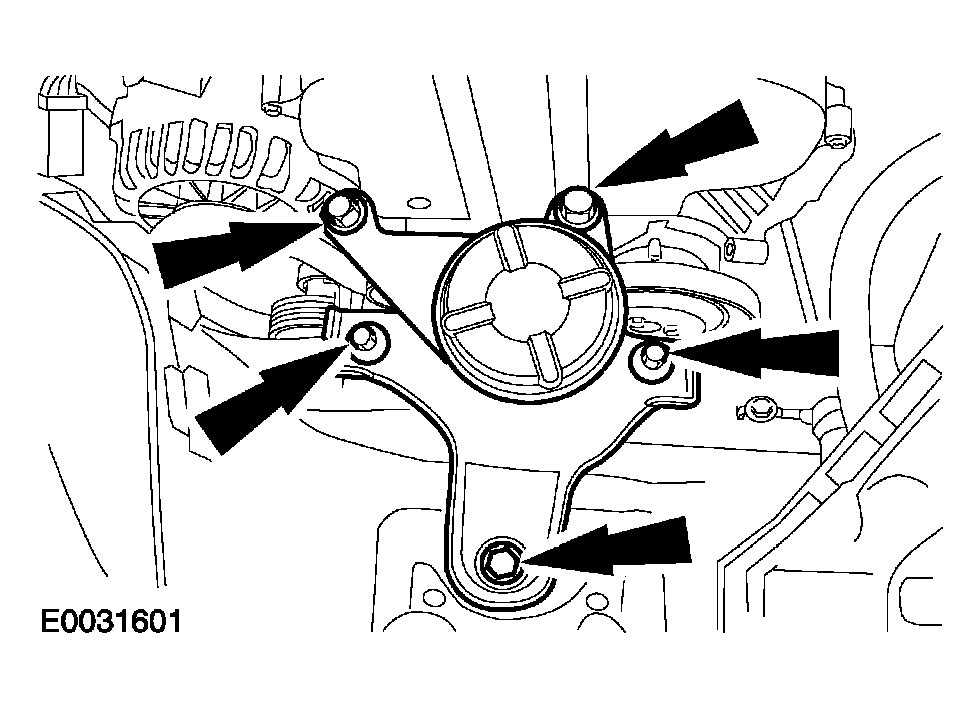

Fig 3: Removing A/C Compressor Bracket
Courtesy of FORD MOTOR CO.
Remove the intermediate shaft center bearing bracket.

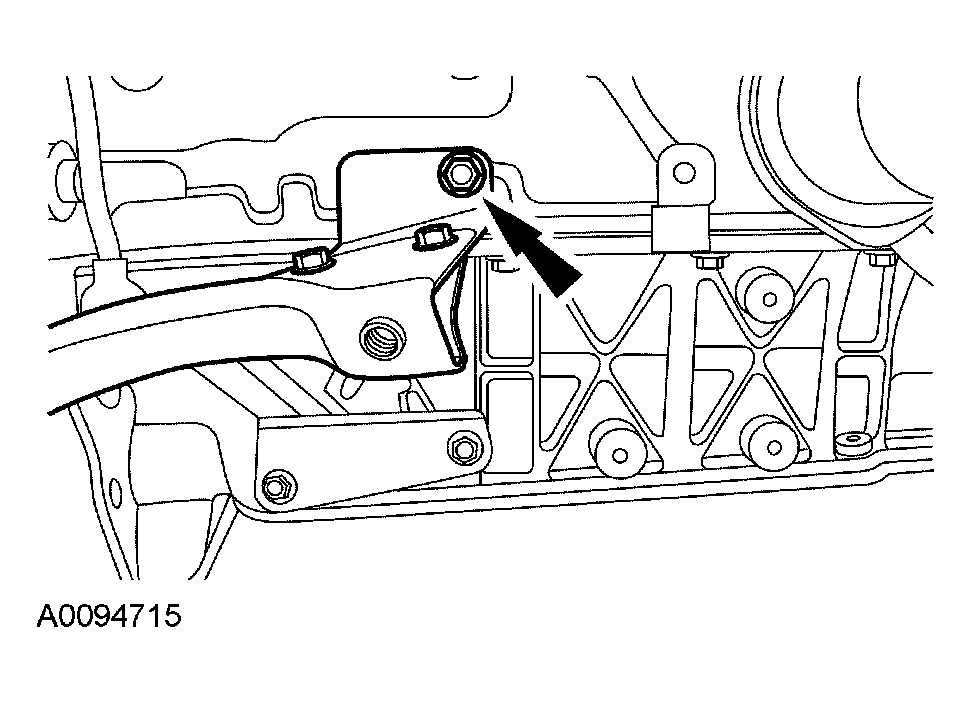

Fig 4: Removing Intermediate Shaft Center Bearing Bracket
Courtesy of FORD MOTOR CO.
Remove the catalytic converter bracket (engine shown removed for clarity).

Fig 5: Removing Catalytic Converter Bracket
Courtesy of FORD MOTOR CO.
Remove the oil pan. For additional information, refer to OIL PAN .
Remove the lower crankcase-to-transmission bolts.

Fig 6: Removing Lower Crankcase-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Note the location of any spacer shims between the transaxle and the lower crankcase to aid installation. The spacer shims must be installed in the same location during oil pump installation.

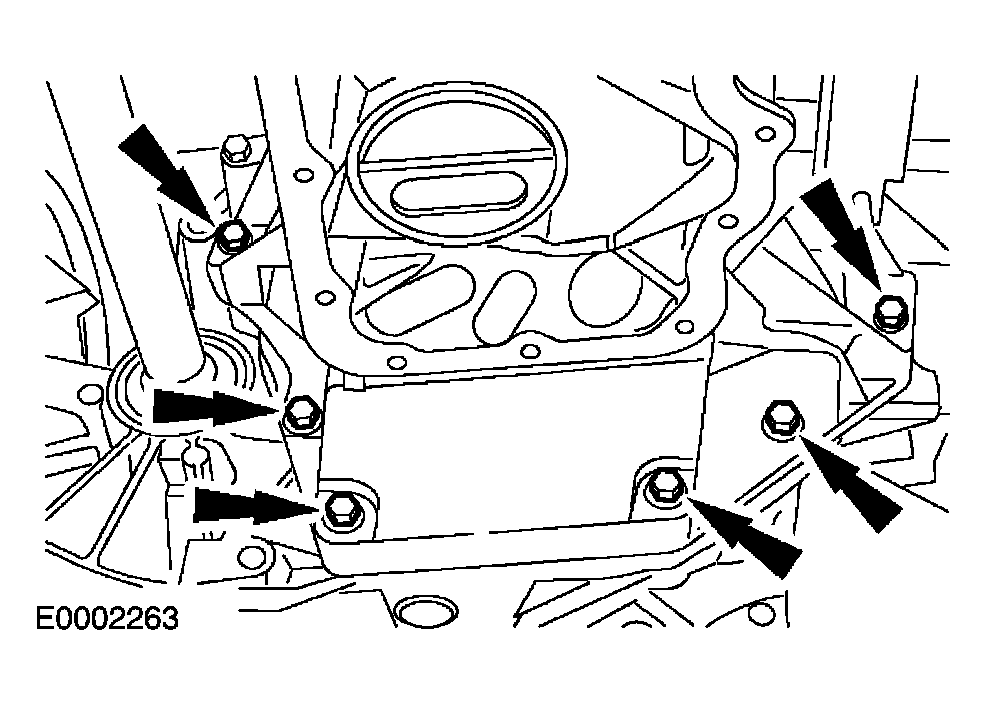

Fig 7: Removing Lower Crankcase Retaining Bolts

Courtesy of FORD MOTOR CO.

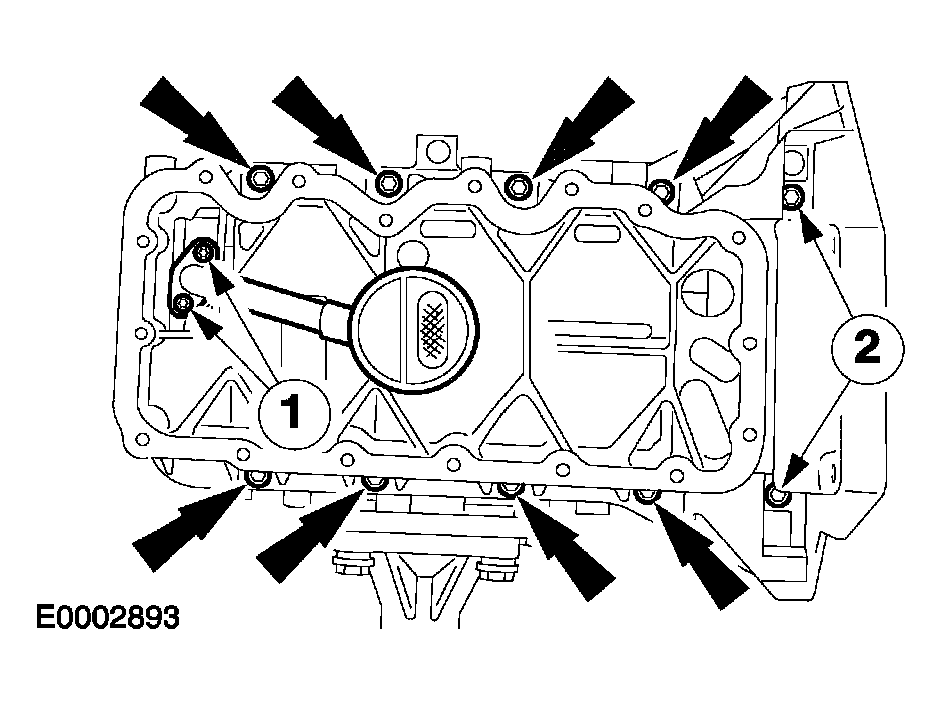

Remove the lower crankcase (engine shown removed for clarity).
1. Remove the oil pick-up tube.
2. Remove the lower crankcase retaining bolts.
- Discard the gasket.
Remove the accessory drive belt tensioner.

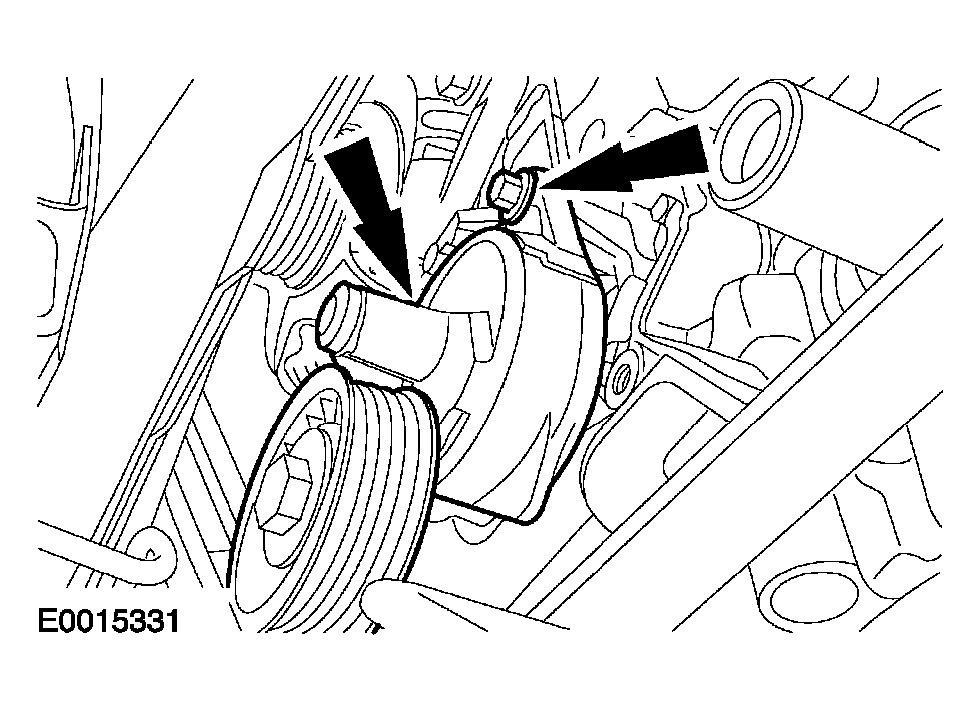

Fig 8: Removing Accessory Drive Belt Tensioner
Courtesy of FORD MOTOR CO.
Remove the oil pump (engine shown removed for clarity).
- Discard the gasket.

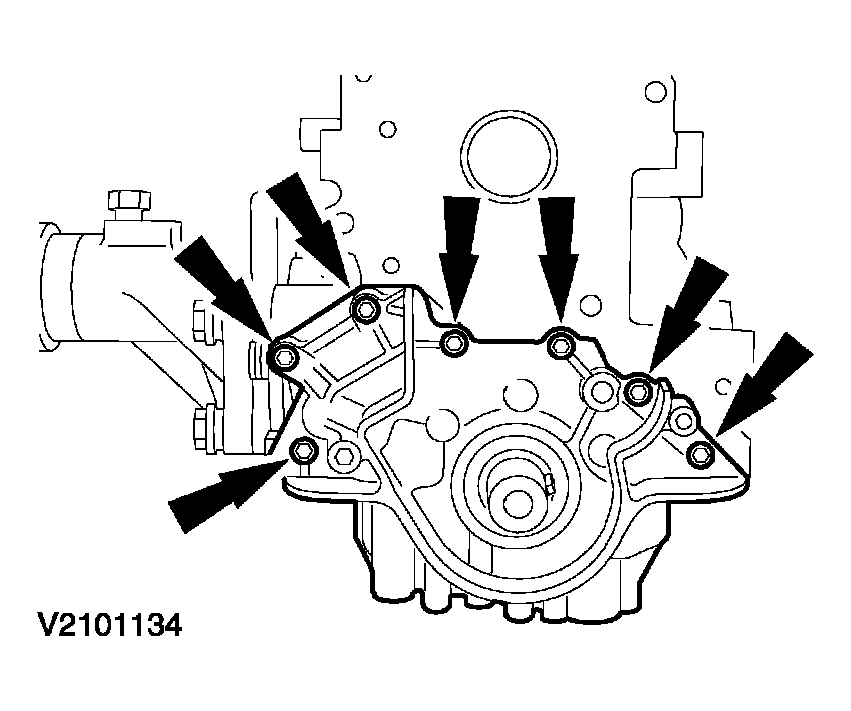

Fig 9: Removing Oil Pump
Courtesy of FORD MOTOR CO.
