Section 599 (Automatic Transmission - 4R100): Installation: Installation

WARNING: This page is about a different car, the 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

  1. Inspect the wiring harness and the connectors for damage, terminal condition, corrosion and seal integrity. Repair or install new components as required.
  2. CAUTION: Prior to installation of the transmission assembly, the torque converter pilot hub must be lubricated.

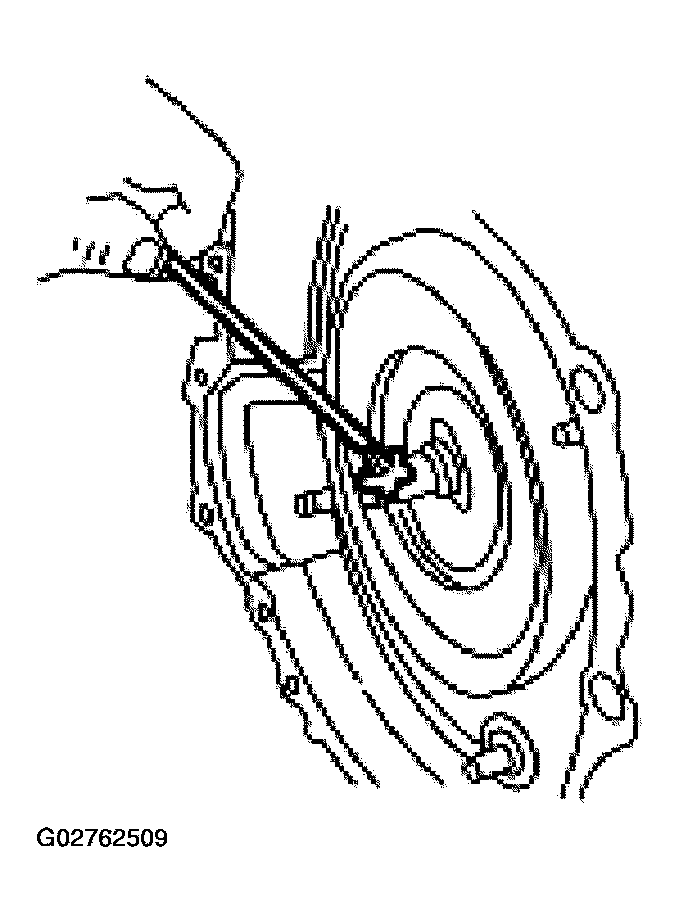

    Fig 1: Lubricating Torque Converter Pilot Hub With Multi-Purpose Grease
    G02762509Courtesy of FORD MOTOR CO.
  3. Lubricate the torque converter pilot hub with multi-purpose grease.
  4. Install the special tool.

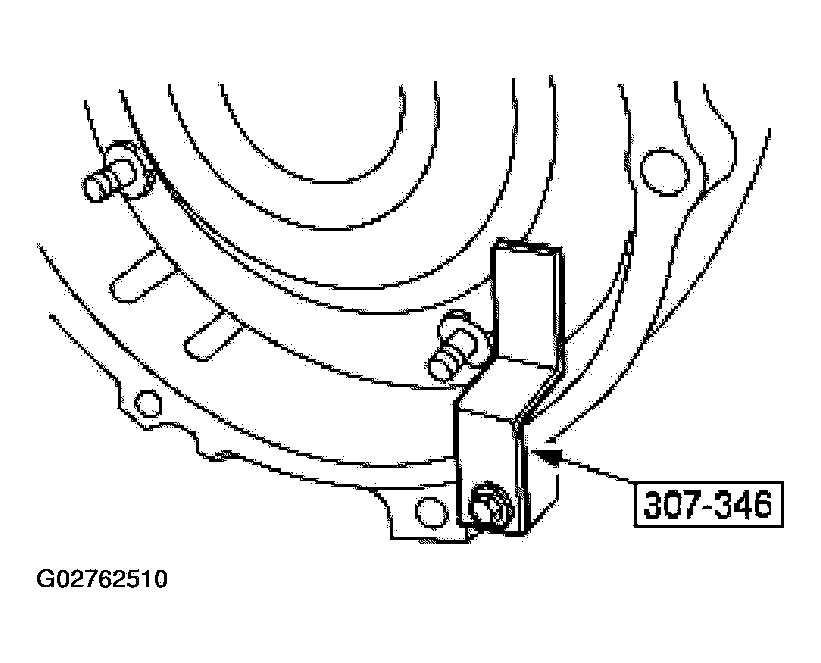

    Fig 2: Installing Special Tool
    G02762510Courtesy of FORD MOTOR CO.
  5. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the turbine shaft speed (TSS) sensor can occur.
    CAUTION: If a safety strap is being used to hold the transmission to the transmission jack, place the strap behind the cooler bypass valve (CBV) to prevent damage to the cooler bypass valve.
    NOTE: Due to the proximity of the exhaust pipe, the bolt must be installed into the converter housing mounting hole above the starter motor mounting area prior to raising the transmission into the vehicle.

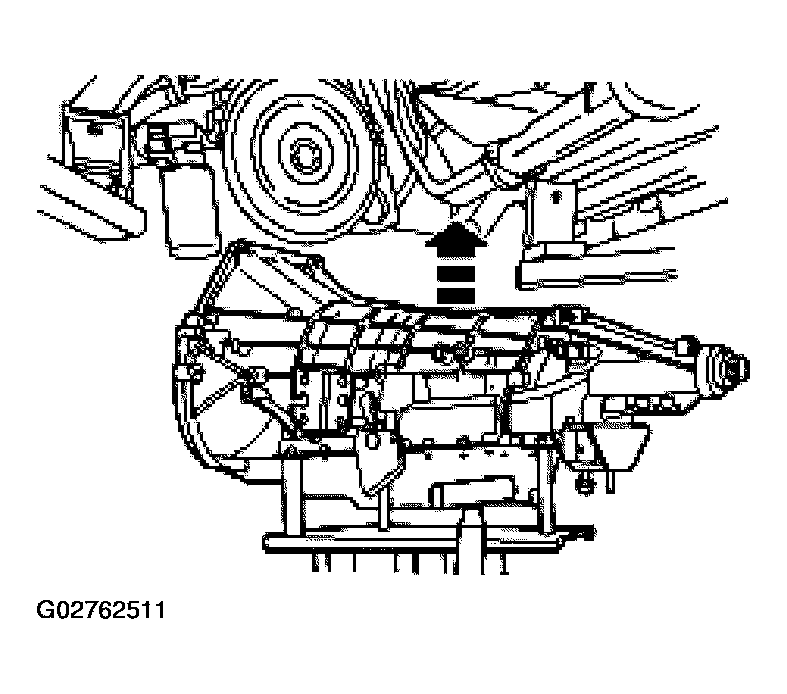

    Fig 3: Raising Transmission Into Vehicle
    G02762511Courtesy of FORD MOTOR CO.
  6. Using a suitable transmission jack, position, then raise the transmission into the vehicle while watching for obstructions.
  7. CAUTION: Do not allow the torque converter drive flats to disengage from the pump gear. Use care not to damage the flexplate and the converter pilot. The torque converter must rest squarely against the flexplate, indicating the converter pilot is not binding in the crankshaft.

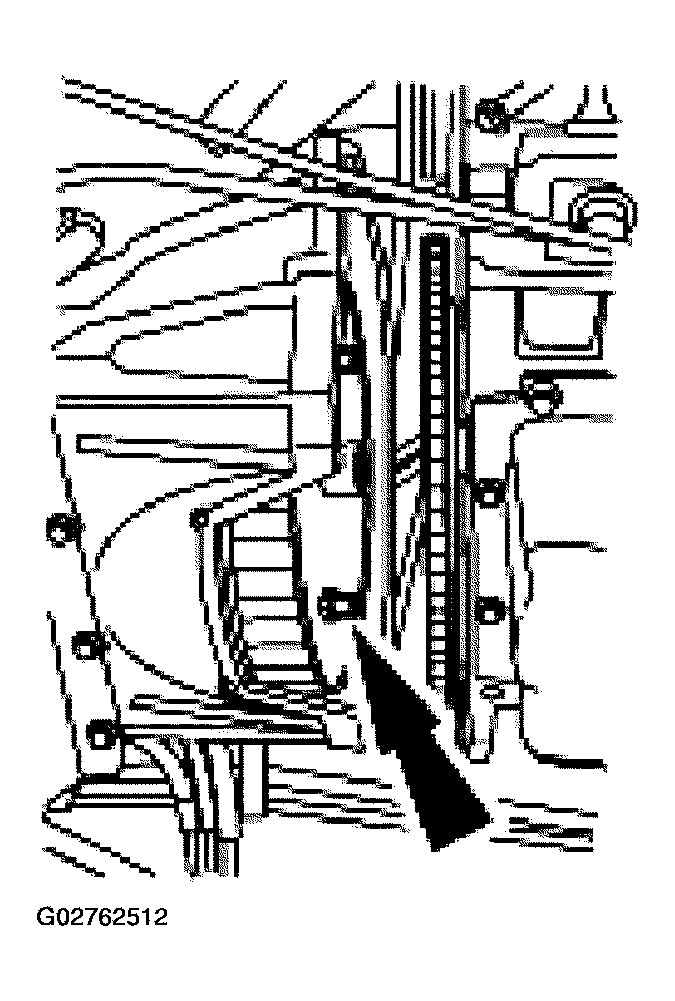

    Fig 4: Aligning Torque Converter Studs With Mounting Holes In Flexplate
    G02762512Courtesy of FORD MOTOR CO.
  8. While installing the transmission to the engine, align the torque converter studs with the mounting holes in the flexplate.
  9. Install and alternately snug the transmission-to-engine retaining bolts.

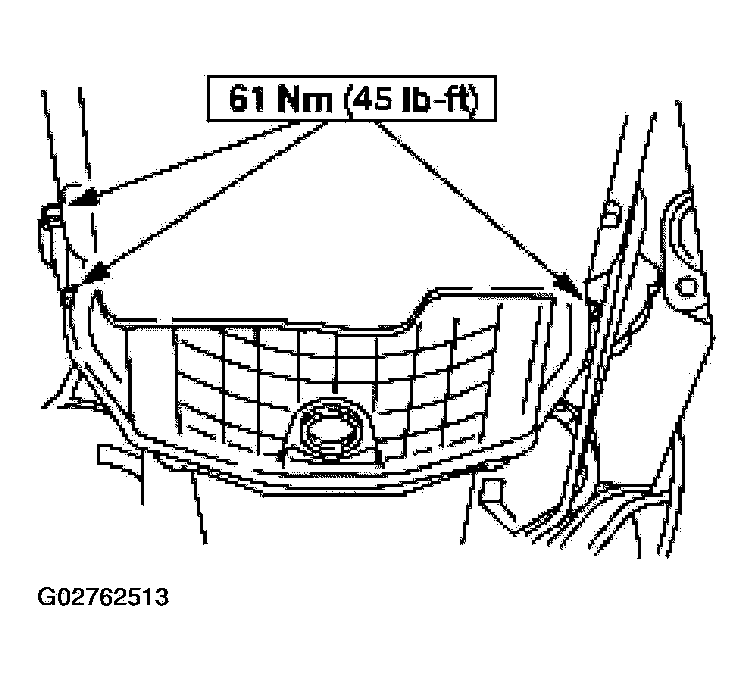

    Fig 5: Installing And Alternately Snug Transmission-To-Engine
    G02762513Courtesy of FORD MOTOR CO.
  10. Install new torque converter-to-flexplate nuts.

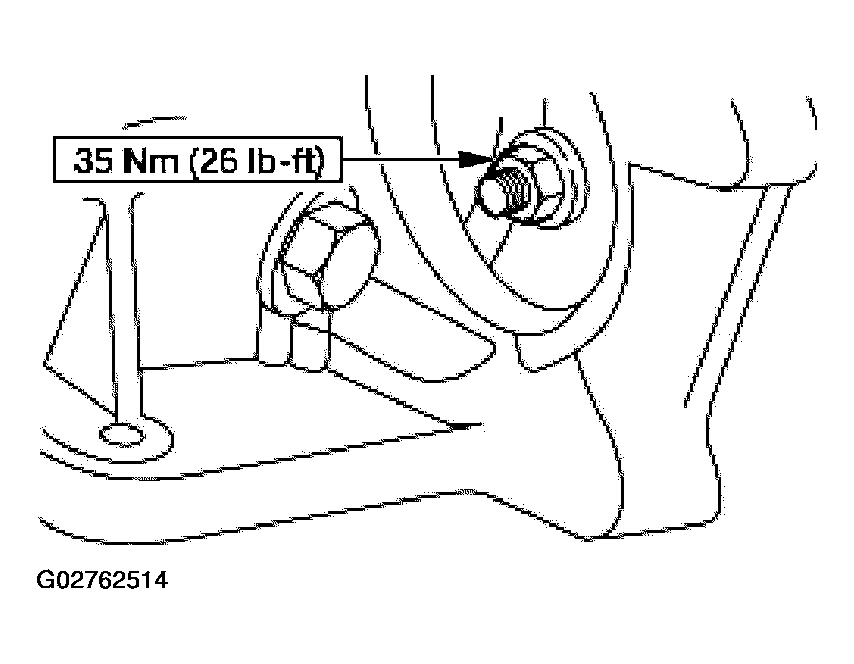

    Fig 6: Installing New Torque Converter-To-Flexplate Nuts
    G02762514Courtesy of FORD MOTOR CO.
  11. Install the cylinder block opening cover.

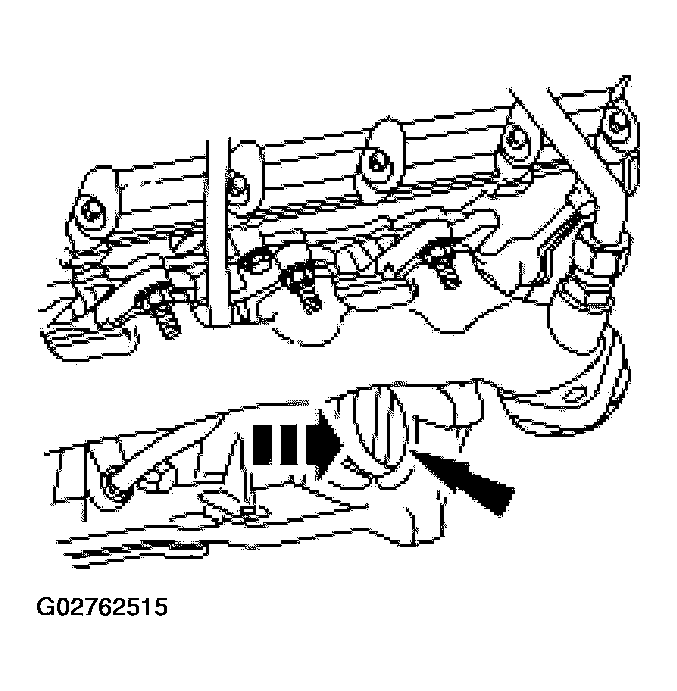

    Fig 7: Installing Cylinder Block Opening Cover
    G02762515Courtesy of FORD MOTOR CO.
  12. Install the flexplate inspection cover and bolts.

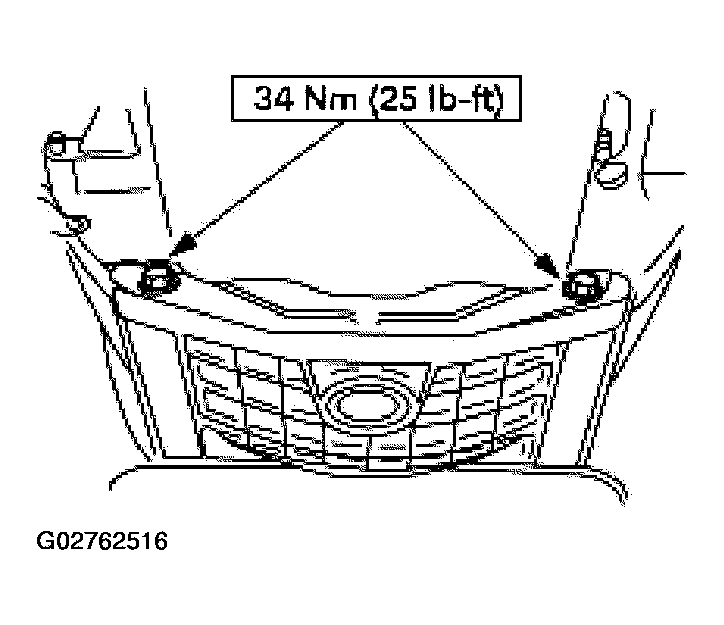

    Fig 8: Installing Flexplate Inspection Cover
    G02762516Courtesy of FORD MOTOR CO.
  13. NOTE: If the transmission fluid cooler, cooler tubes, or cooler bypass valve have not been flushed it would be necessary to do so at this time.

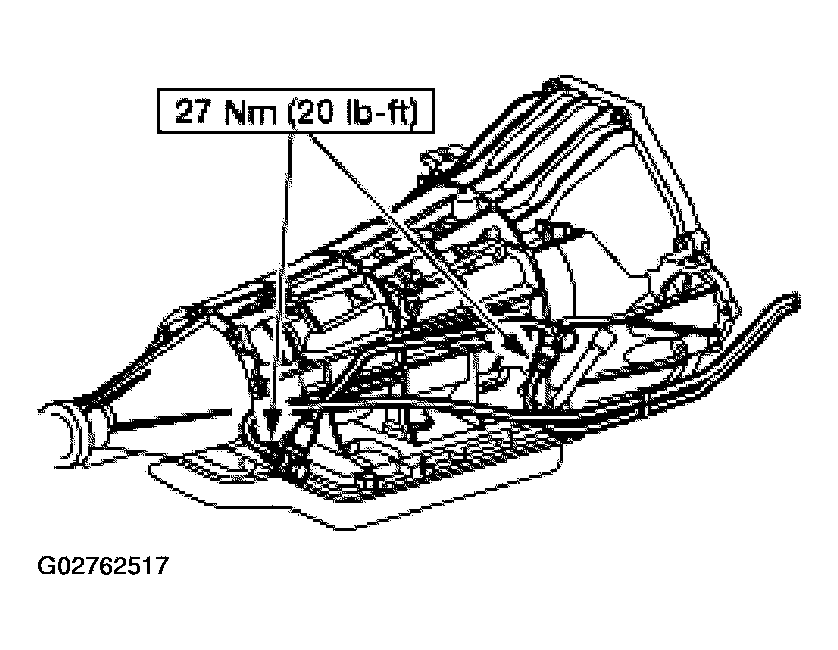

    Fig 9: Removing Plugs And Connect Fluid Cooler Tubes To CBV
    G02762517Courtesy of FORD MOTOR CO.
  14. Remove the plugs and connect the fluid cooler tubes to the CBV.
  15. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS sensor could occur.

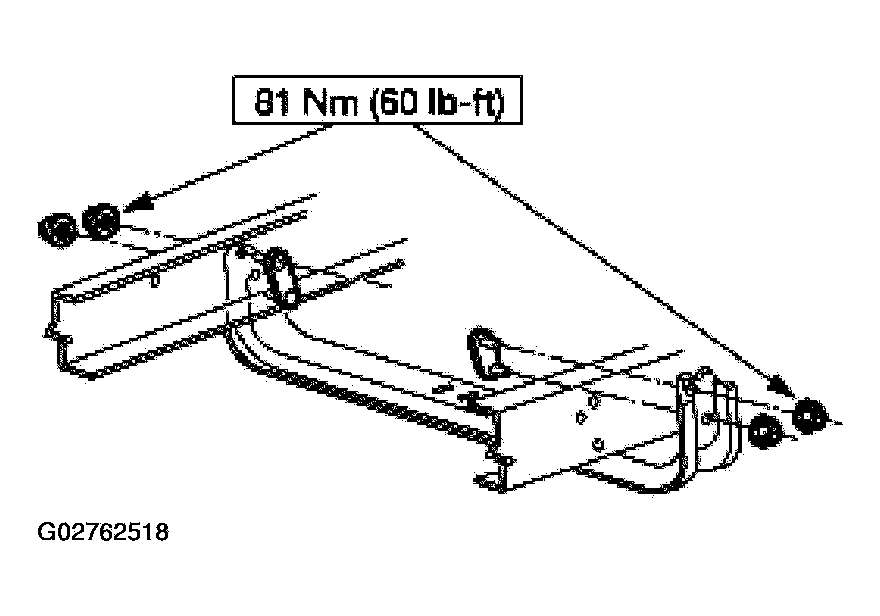

    Fig 10: Installing Transmission Support Crossmember
    G02762518Courtesy of FORD MOTOR CO.
  16. Install the transmission support crossmember.
  17. Install the rear transmission mount nuts.

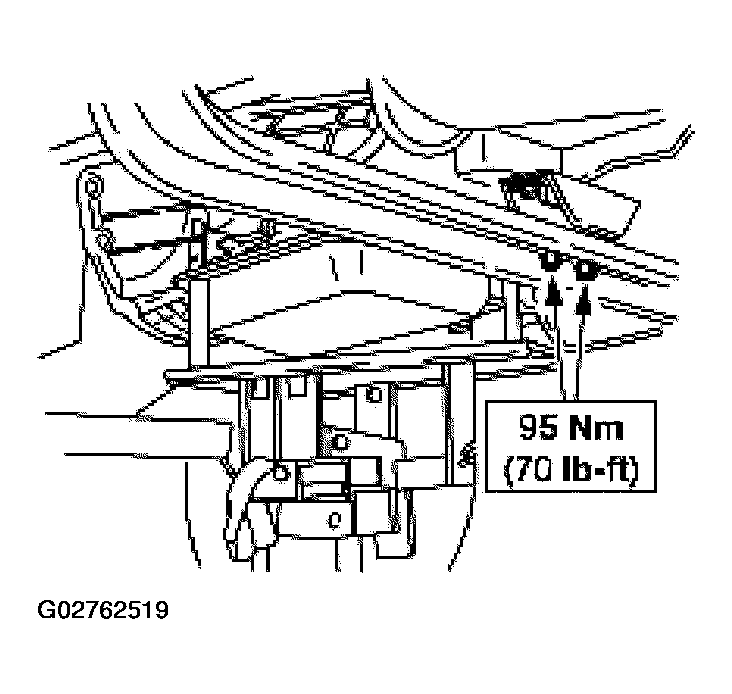

    Fig 11: Installing Rear Transmission Mount Nuts
    G02762519Courtesy of FORD MOTOR CO.
  18. Remove the high-lift transmission jack.
  19. Install the shift cable.
    Fig 12: Removing High-Lift Transmission Jack
    G02762520Courtesy of FORD MOTOR CO.
  20. Connect the digital transmission range (TR) sensor connector.

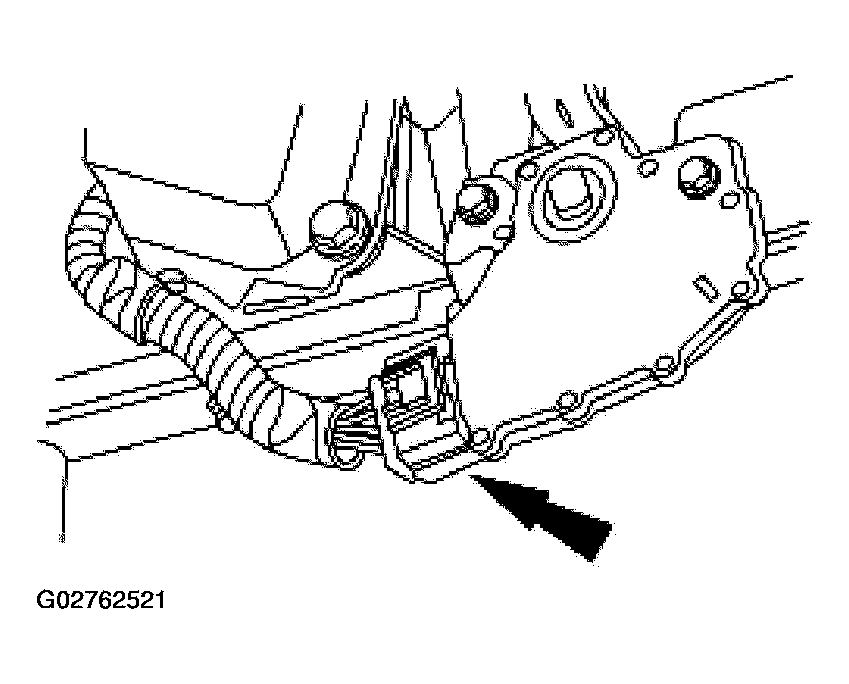

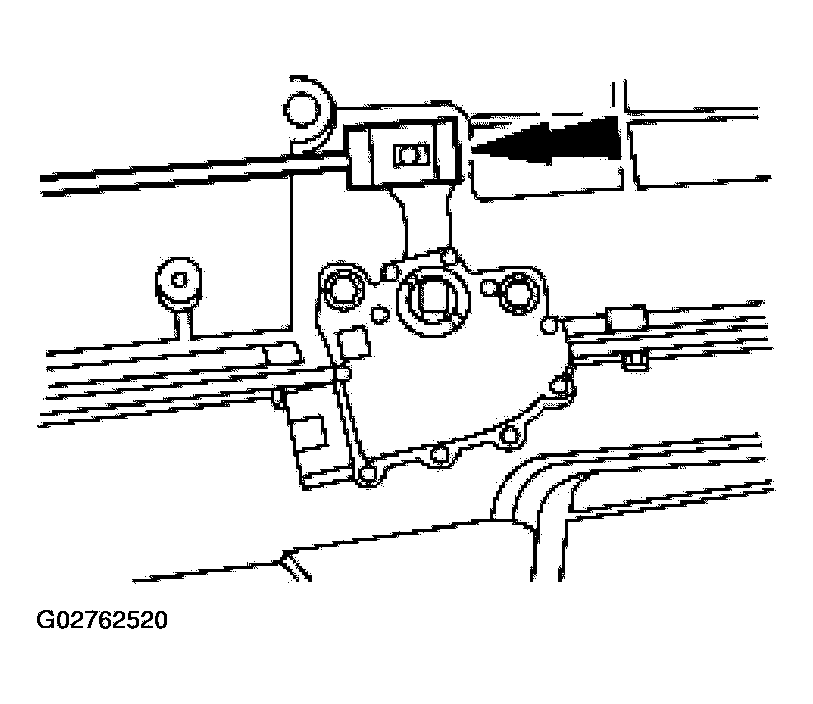

    Fig 13: Connecting Digital Transmission Range (TR) Sensor Connector
    G02762521Courtesy of FORD MOTOR CO.
  21. Connect the solenoid body connector.

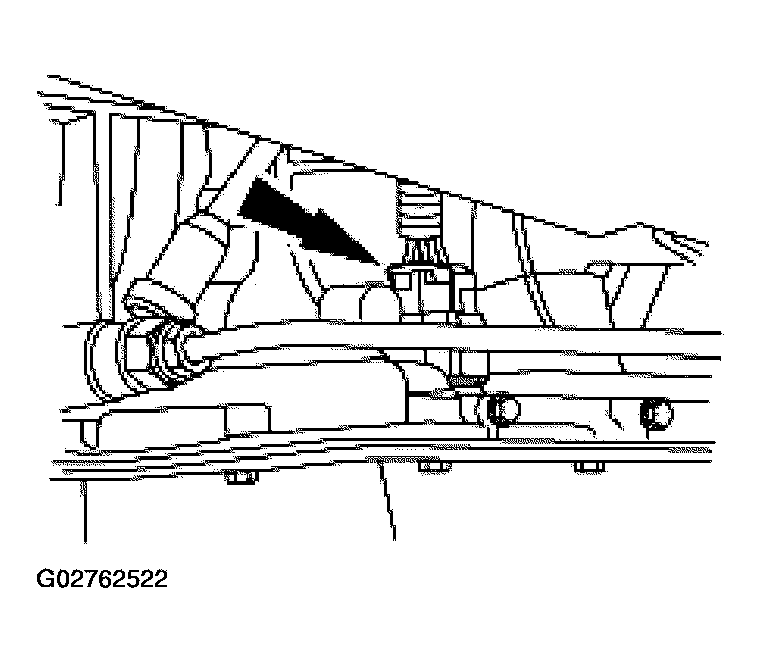

    Fig 14: Connecting Solenoid Body Connector
    G02762522Courtesy of FORD MOTOR CO.
  22. If equipped, install the exhaust heat shield and bolts.

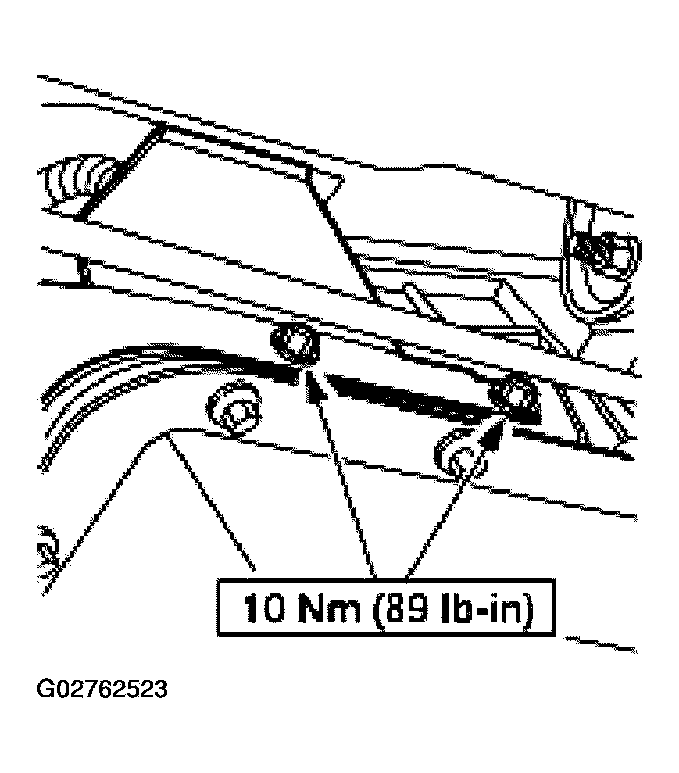

    Fig 15: Installing Exhaust Heat Shield
    G02762523Courtesy of FORD MOTOR CO.
  23. Install the starter motor. For additional information, refer to STARTERS - EXCEPT DIESEL .
  24. Install the driveshaft. For additional information, refer to DRIVESHAFT .

    VEHICLES EQUIPPED WITH A TRANSMISSION-MOUNTED PARKING BRAKE

  25. If removed, install the parking brake.
    1. Position the parking brake assembly with a new gasket on the transmission extension housing.
    2. Install six new bolts.

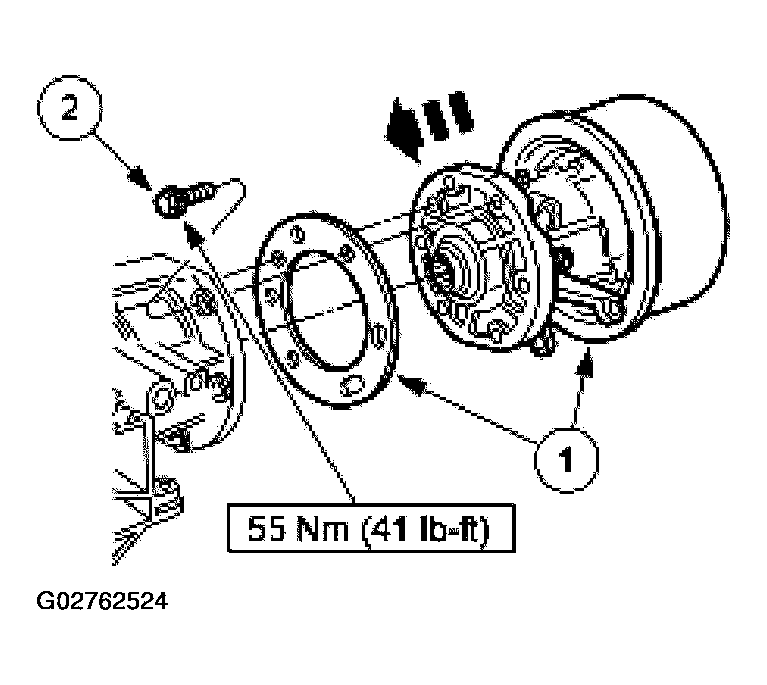

    Fig 16: Installing Parking Brake
    G02762524Courtesy of FORD MOTOR CO.

    ALL VEHICLES

  26. Use the following guidelines for the in-line transmission fluid filter:
    • If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
    • If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
    • If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
    • If installing a new or a Ford-authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.

      Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information, refer to TRANSMISSION FLUID IN-LINE FILTER .

  27. Remove the supports and lower the vehicle.
  28. Install and alternately snug, then tighten the transmission-to-engine bolts.

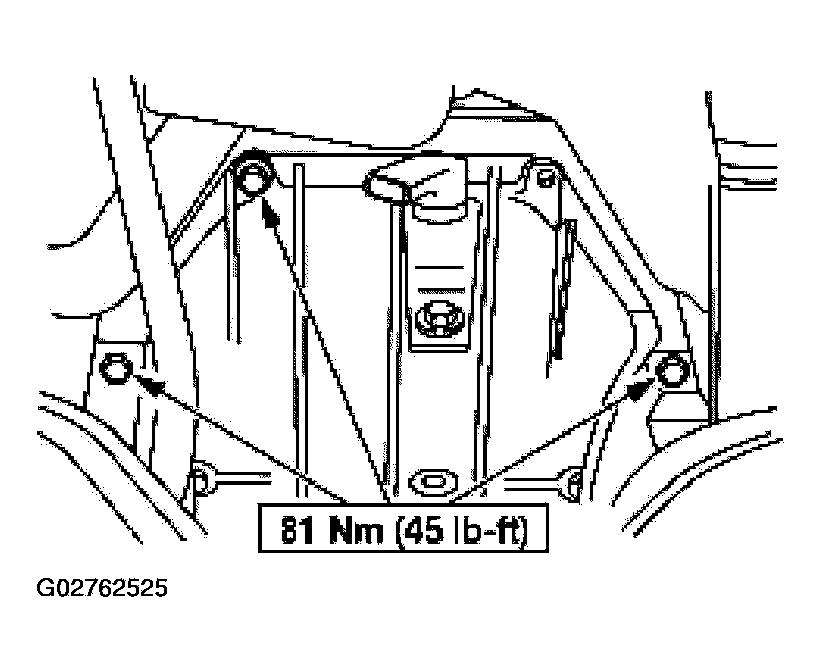

    Fig 17: Installing And Alternately Snug Tighten Transmission-To-Engine
    G02762525Courtesy of FORD MOTOR CO.
  29. Connect the electrical harness connectors.

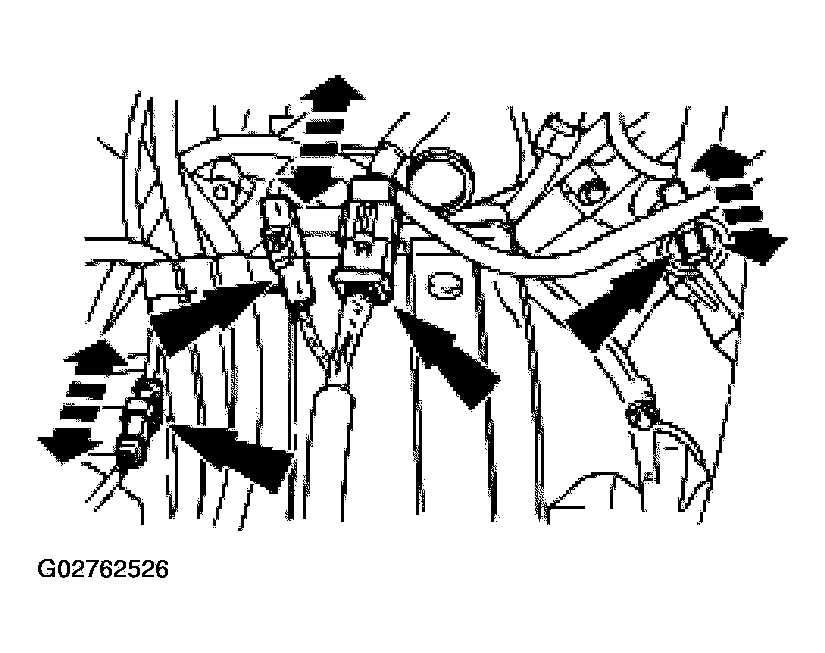

    Fig 18: Connecting Electrical Harness Connectors
    G02762526Courtesy of FORD MOTOR CO.
  30. NOTE: Prior to installation, check the condition of the transmission fluid filler tube O-ring. Install new if damaged.

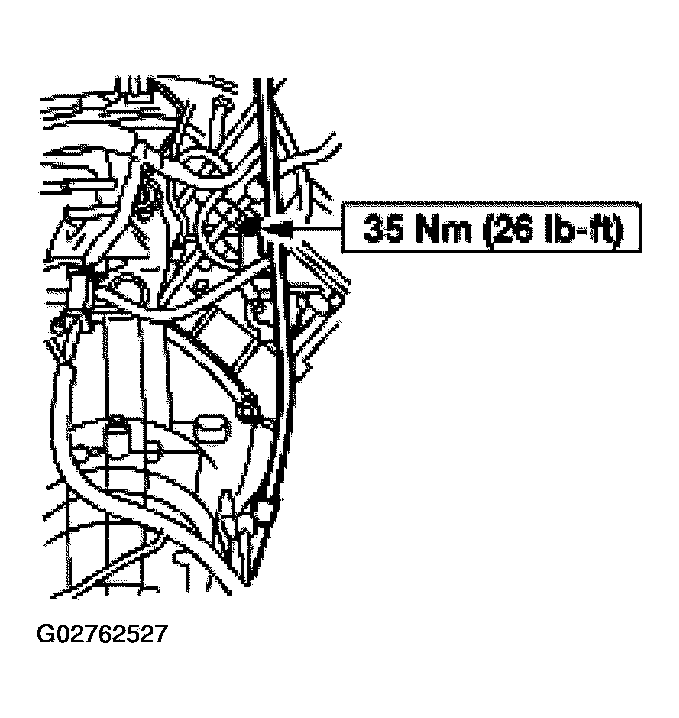

    Fig 19: Installing Fluid Filler Tube Into Short Fluid Inlet Tube
    G02762527Courtesy of FORD MOTOR CO.
  31. Install the fluid filler tube into the short fluid inlet tube. Tighten the nut.
  32. Position the retaining bracket for the fluid filler tube and install the nut.

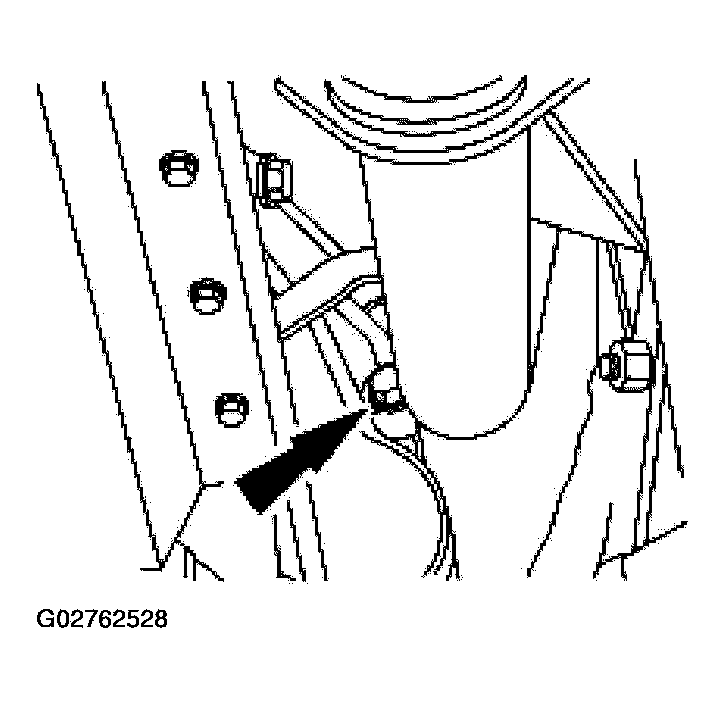

    Fig 20: Positioning Retaining Bracket For Fluid Filler Tube
    G02762528Courtesy of FORD MOTOR CO.
  33. Install the vapor management valve.

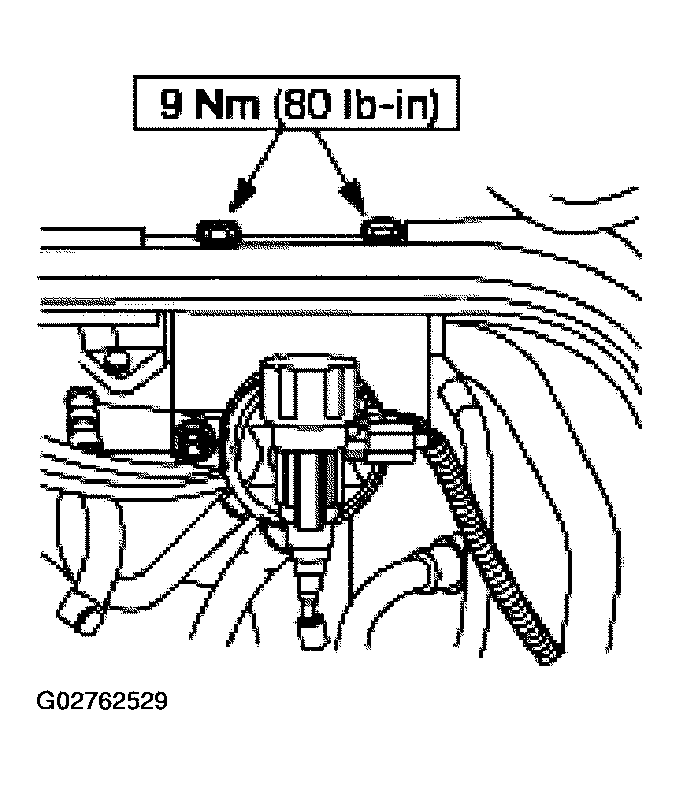

    Fig 21: Installing Vapor Management Valve
    G02762529Courtesy of FORD MOTOR CO.
  34. Install the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  35. NOTE: This vehicle has adaptive shift strategies. Whenever the battery has been disconnected and reconnected, some abnormal drive symptoms will occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts (either soft or firm) and that this is a temporary condition that will eventually return to normal operating condition.
  36. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  37. Install the transmission fluid level indicator.

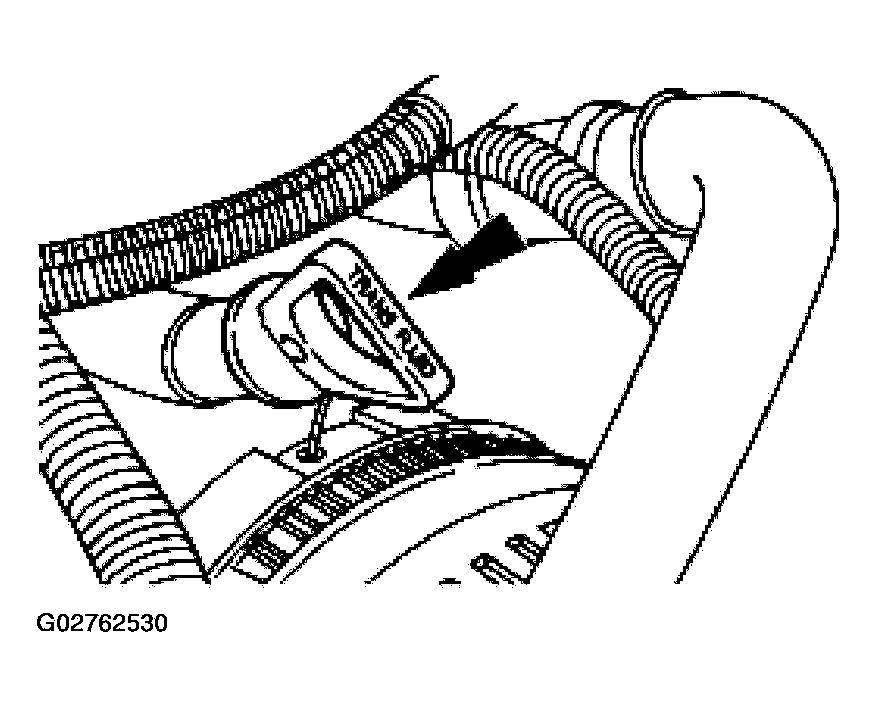

    Fig 22: Installing Transmission Fluid Level Indicator
    G02762530Courtesy of FORD MOTOR CO.
  38. Install the air cleaner air intake duct assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  39. Fill the transmission to the specified level using clean automatic transmission fluid.
