Anti-Lock Brake System (ABS) Module: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

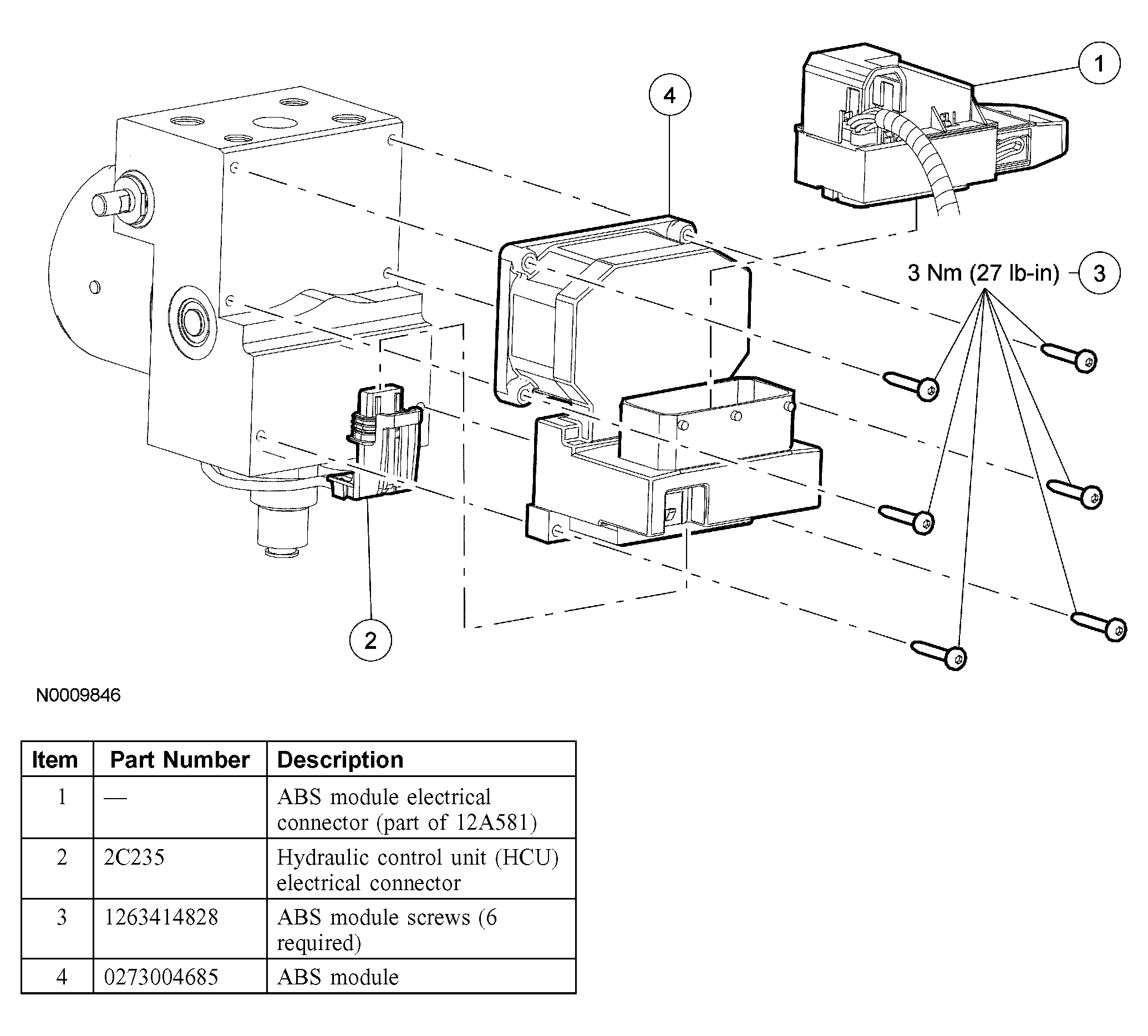

Fig 1: Removing/Installing Anti-Lock Brake System (ABS) Module
G03961355Courtesy of FORD MOTOR CO.
