Camber Adjustment (Front)

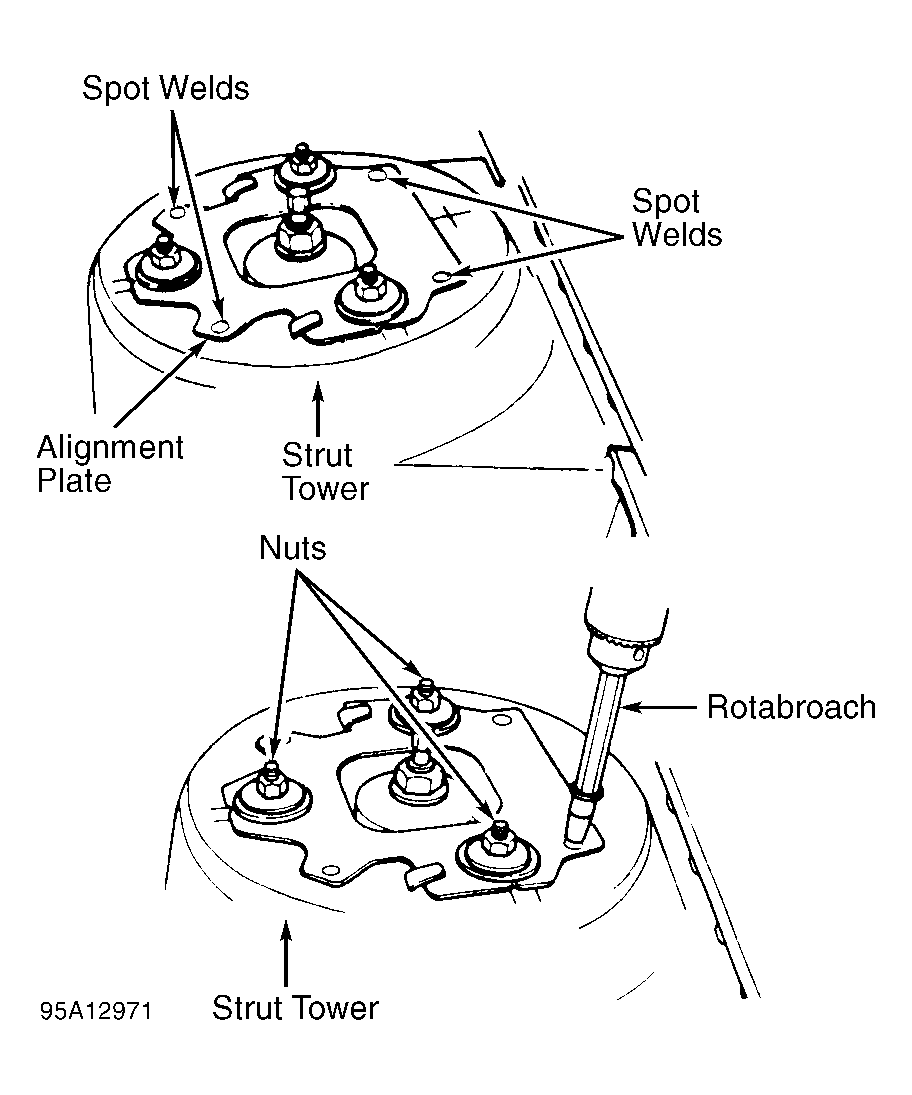

- For minor adjustments to camber and caster, loosen subframe mount bolts, and shift subframe. If this does not allow enough adjustment, loosen 3 upper strut mounting bracket-to-strut tower attaching nuts. Drill out 4 or 5 spot welds at upper strut alignment plate. See Fig 1.
- DO NOT drill deeper than necessary to move alignment plate. Remove 3 upper strut mounting bracket-to-strut tower attaching nuts and alignment plate. Clean burrs from strut tower and alignment plate. Paint exposed metal surfaces.
- Position strut and alignment plate. Loosely install attaching nuts. Adjust camber/caster by moving top of strut. Tighten attaching nuts to specification. Drill 3 holes for rivets in perimeter of alignment plate. See Fig 2. Install 3 rivets.
CAUTION:
DO NOT
drill deeper than 3/8" (9.6 mm) into strut tower.
