Power Door Lock Switch
- Disconnect negative battery cable. Remove switch. See DOOR LOCK SWITCHES
under REMOVAL & INSTALLATION.

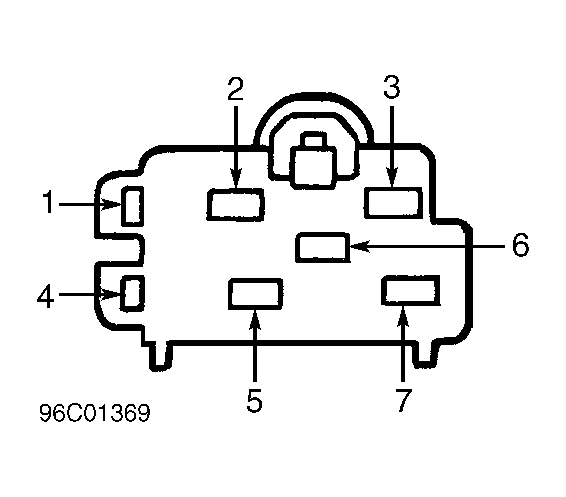

- With switch in neutral position, continuity should exist between terminals No. 2 and 3, and between terminals No. 5 and 7. See Fig 1
. Continuity should not exist between terminal No. 6 and any other terminal.
- Press and hold switch in lock position. Continuity should exist between terminals No. 2 and 3, and between terminals No. 5 and 6. Continuity should not exist between terminal No. 7 and any other terminal.
- Press and hold switch in unlock position. Continuity should exist between terminals No. 3 and 6, and between terminals No. 5 and 7. Continuity should not exist between terminal No. 2 and any other terminal. Replace switch if continuity is not as specified.
Courtesy of FORD MOTOR CO.
