Clutch Pedal Height

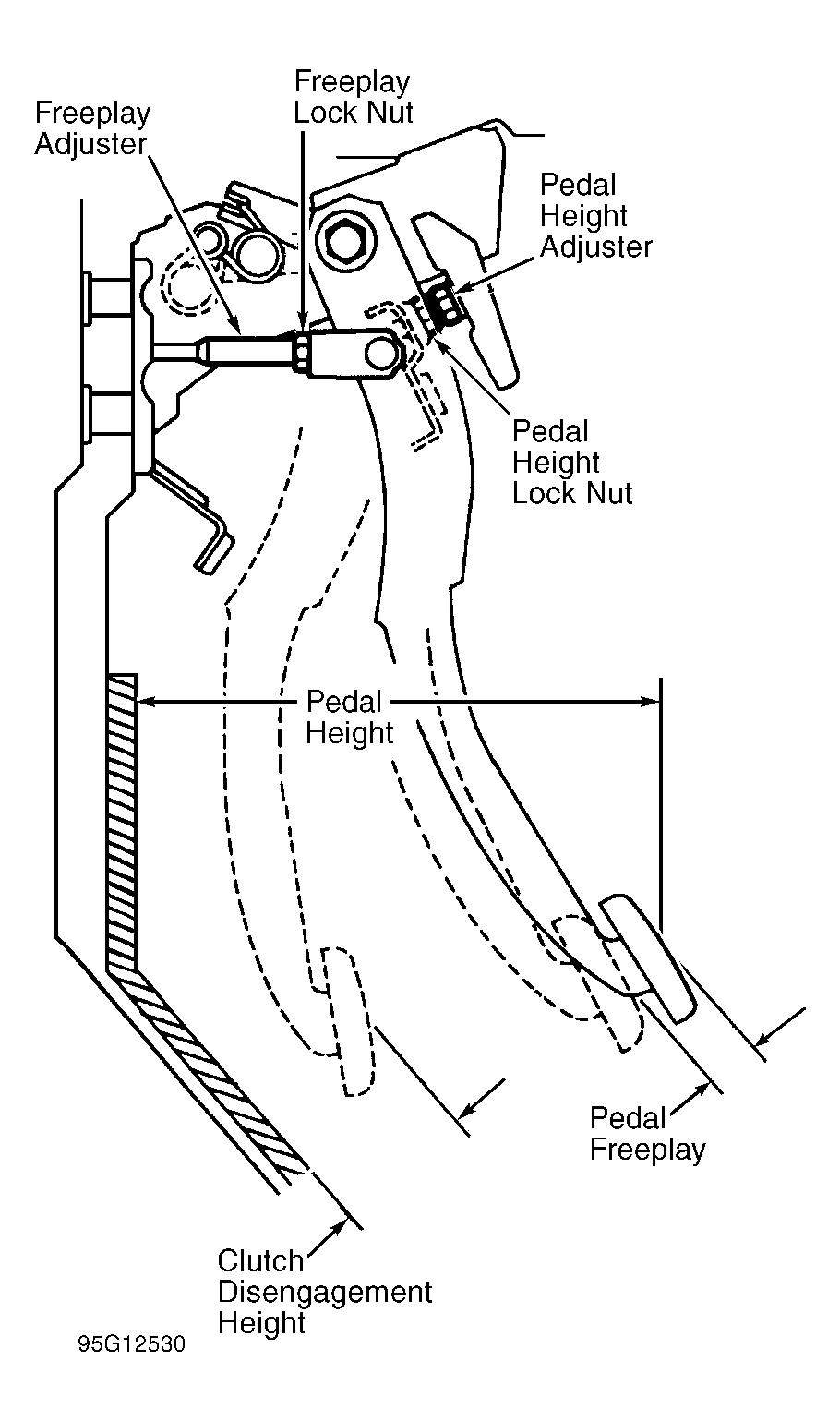

Measure distance from instrument panel to center of pedal pad. See Figure . Distance should be 7.32-8.31" (186-211 mm). If distance is not as specified, loosen pedal height lock nut and turn pedal height adjuster, until height is correct. Tighten lock nut to 122-156 INCH lbs. (14-18 N.m). Depress clutch pedal several times and measure height again. Readjust if necessary.
