Section 24 (Rear Electronic Suspension System): Operation: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Mercury Grand Marquis, 1997 Lincoln Town Car, 1997 Ford Crown Victoria, 1996 Mercury Grand Marquis, and 1996 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Rear air suspension system is operational with ignition switch in RUN position and has limited operation for one hour after ignition is turned off. The air suspension switch, located on right side of trunk, must be turned off when vehicle is being hoisted, towed or jump-started.
A CHECK AIR SUSPENSION warning light is located in instrument panel message center, to right of speedometer. Warning light flashes 5 times, and then stays on when air suspension switch is turned off or a system malfunction is detected.

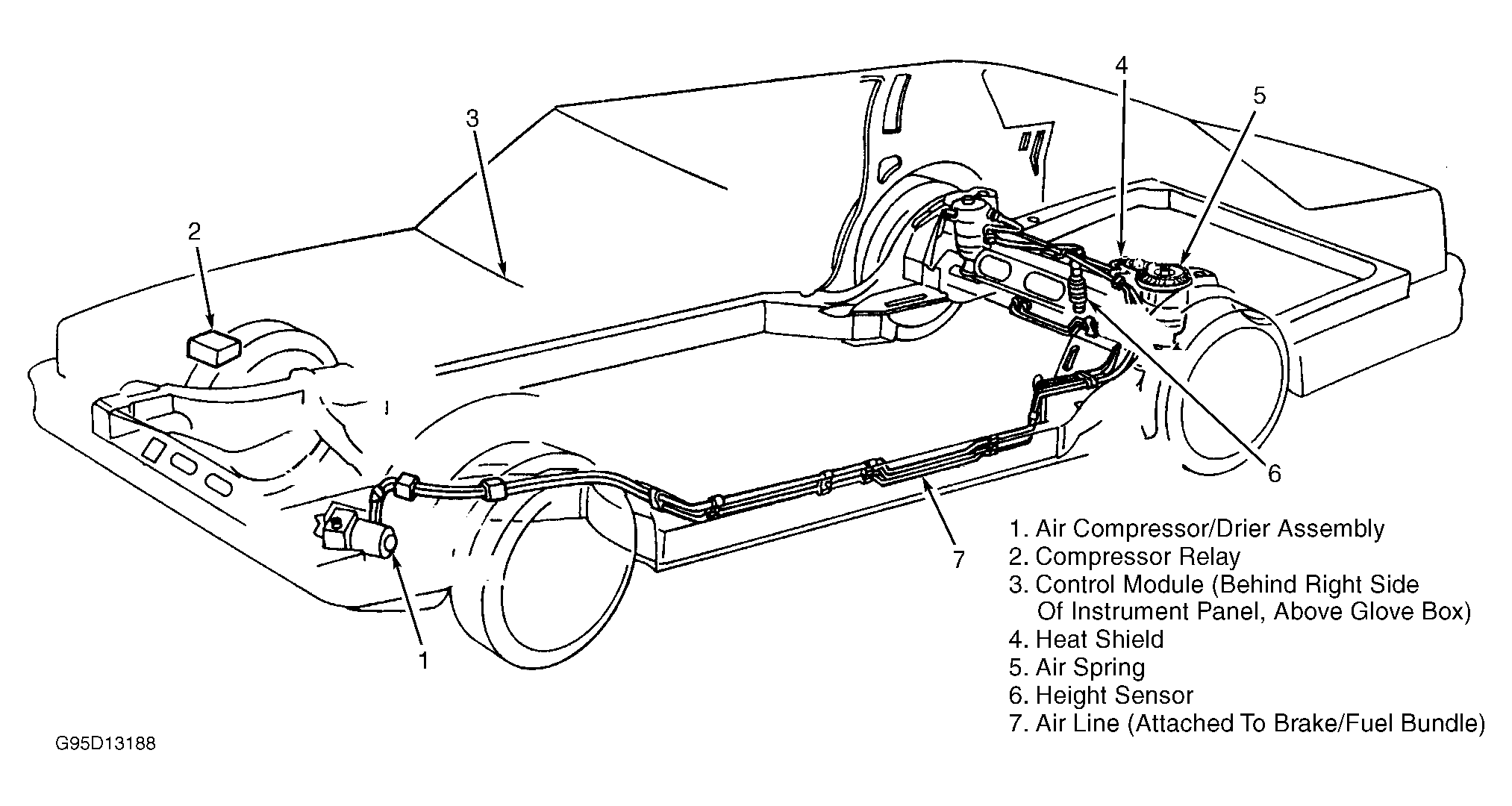

Air required for leveling vehicle is distributed from air compressor to the air springs by nylon air line, which runs from compressor drier through a "Y" fitting to each individual air spring.
