Connector Identification

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Mercury Grand Marquis, 1997 Lincoln Town Car, 1997 Ford Crown Victoria, 1996 Mercury Grand Marquis, and 1996 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

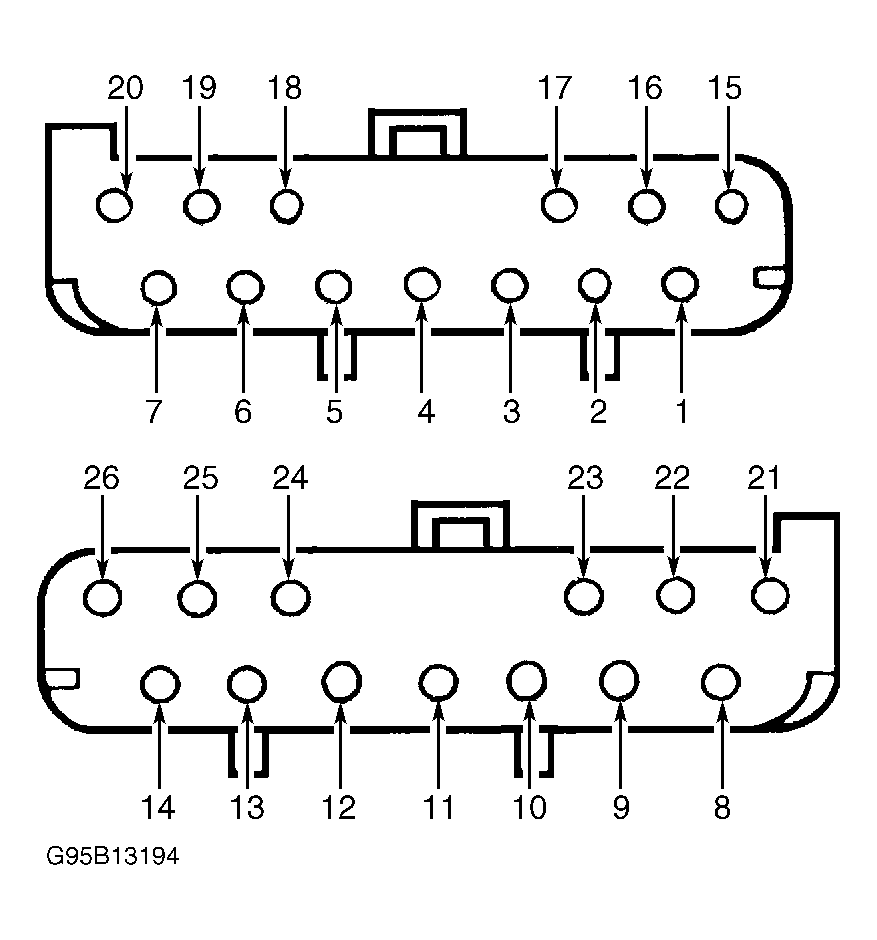

Fig 1: Identifying Suspension Control Module Connector Terminals
G95B13194Courtesy of FORD MOTOR CO.

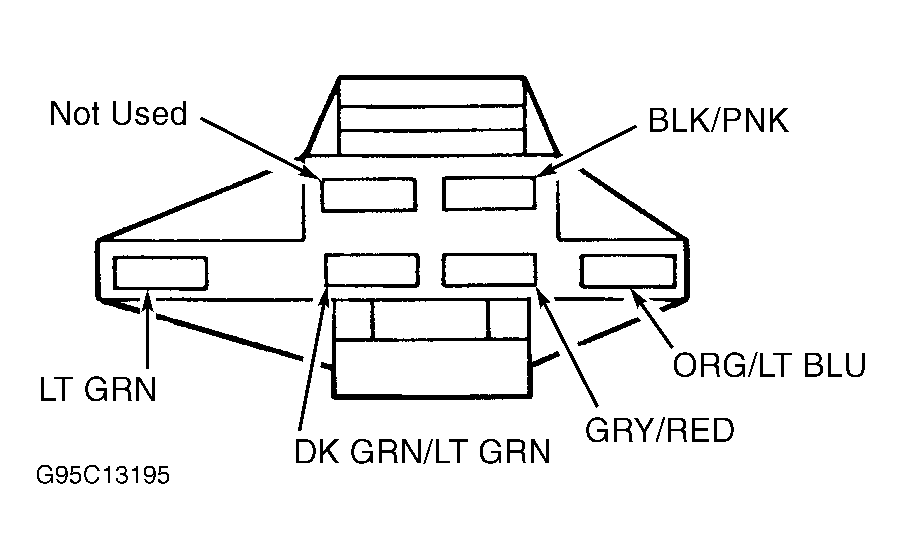

Fig 2: Identifying Air Suspension Test Connector Terminals
G95C13195Courtesy of FORD MOTOR CO.

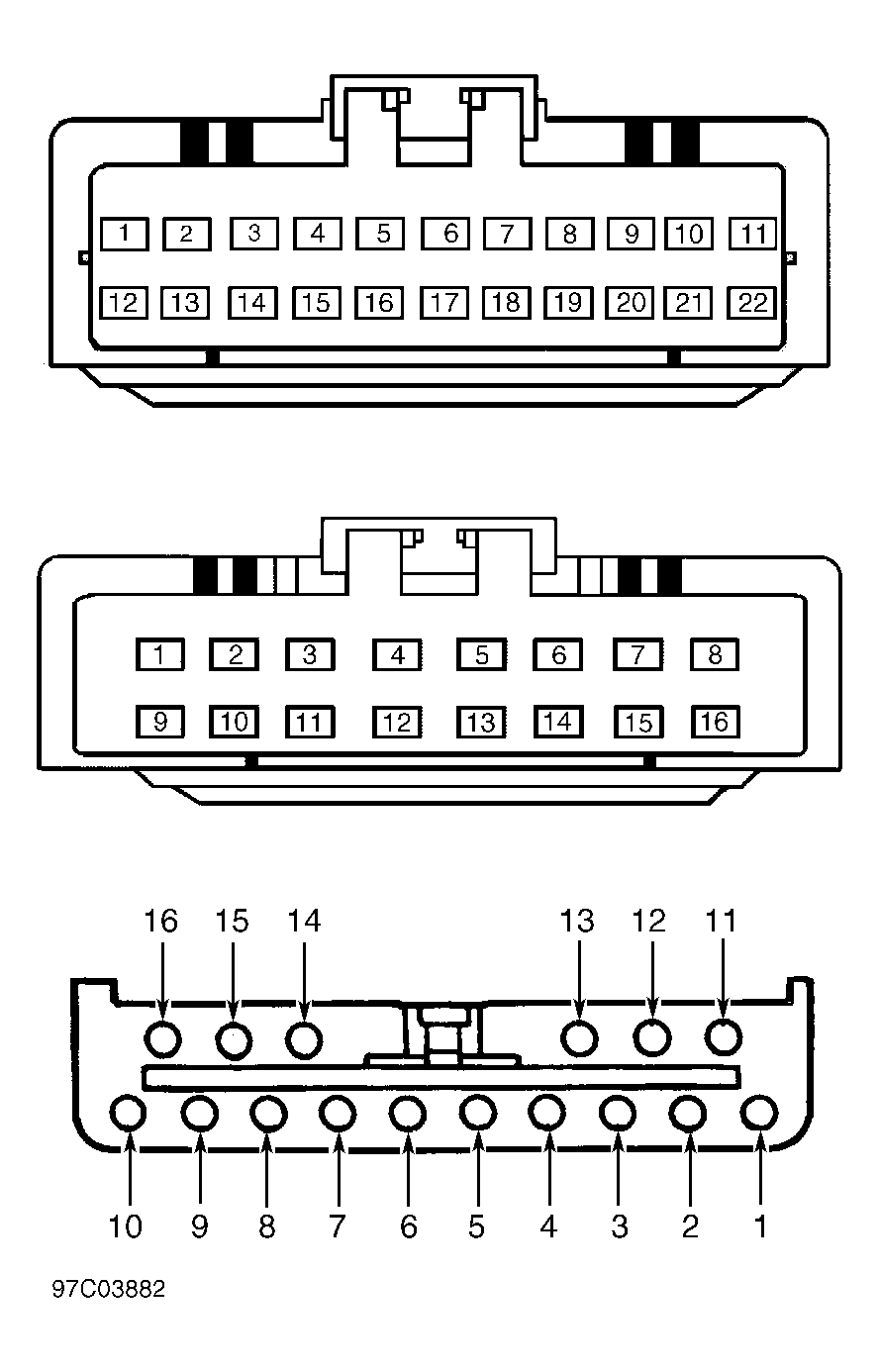

Fig 3: Identifying Lighting Control Module Connector Terminals
G97C03882Courtesy of FORD MOTOR CO.
