Pinpoint Test P - Abs System Timeout
Pinpoint Test P - Abs System Timeout

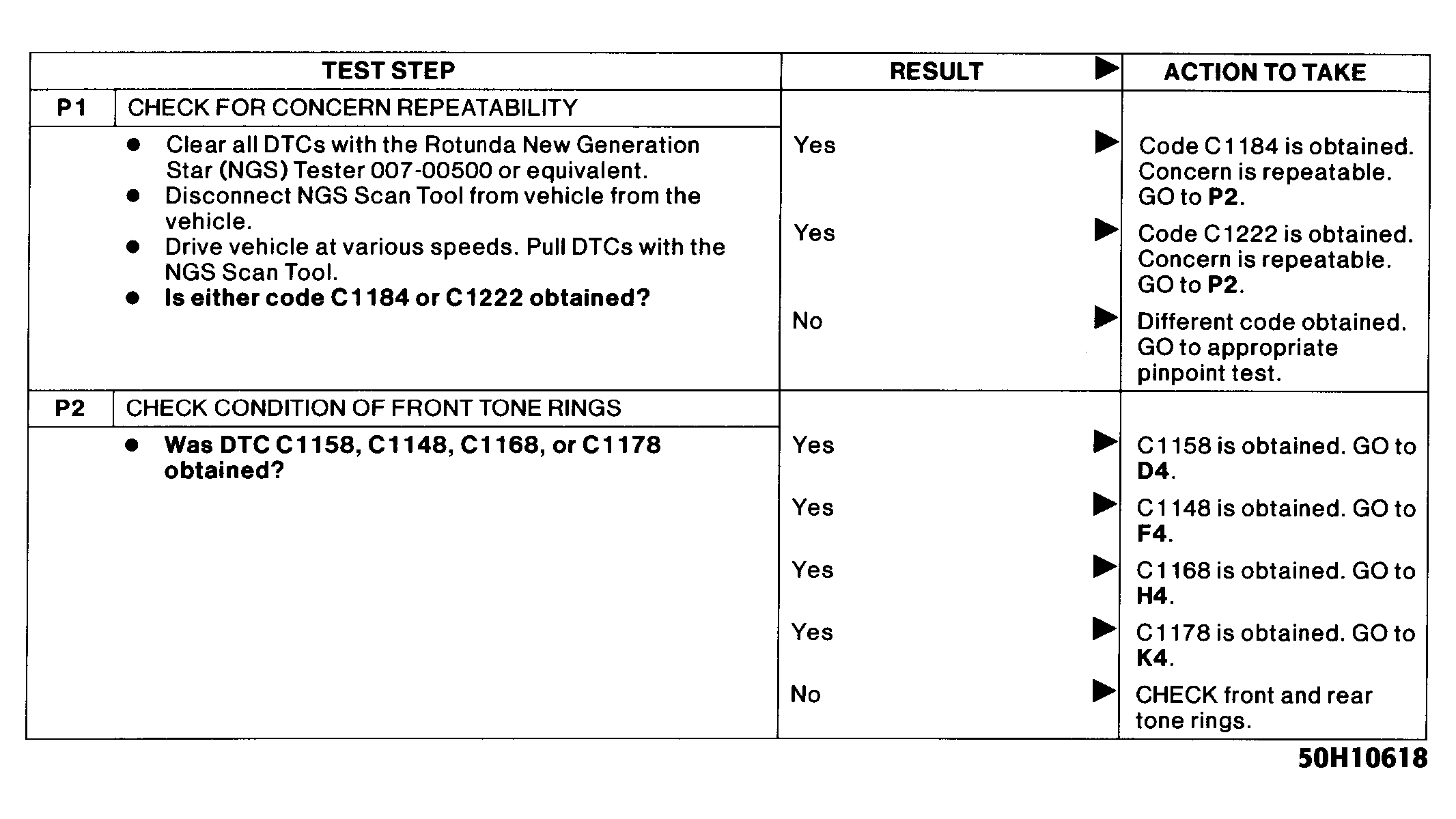

Fig 1: Tests P1-P2 - ABS System Timeout
