Pinpoint Test C - Front Left Brake Sensor

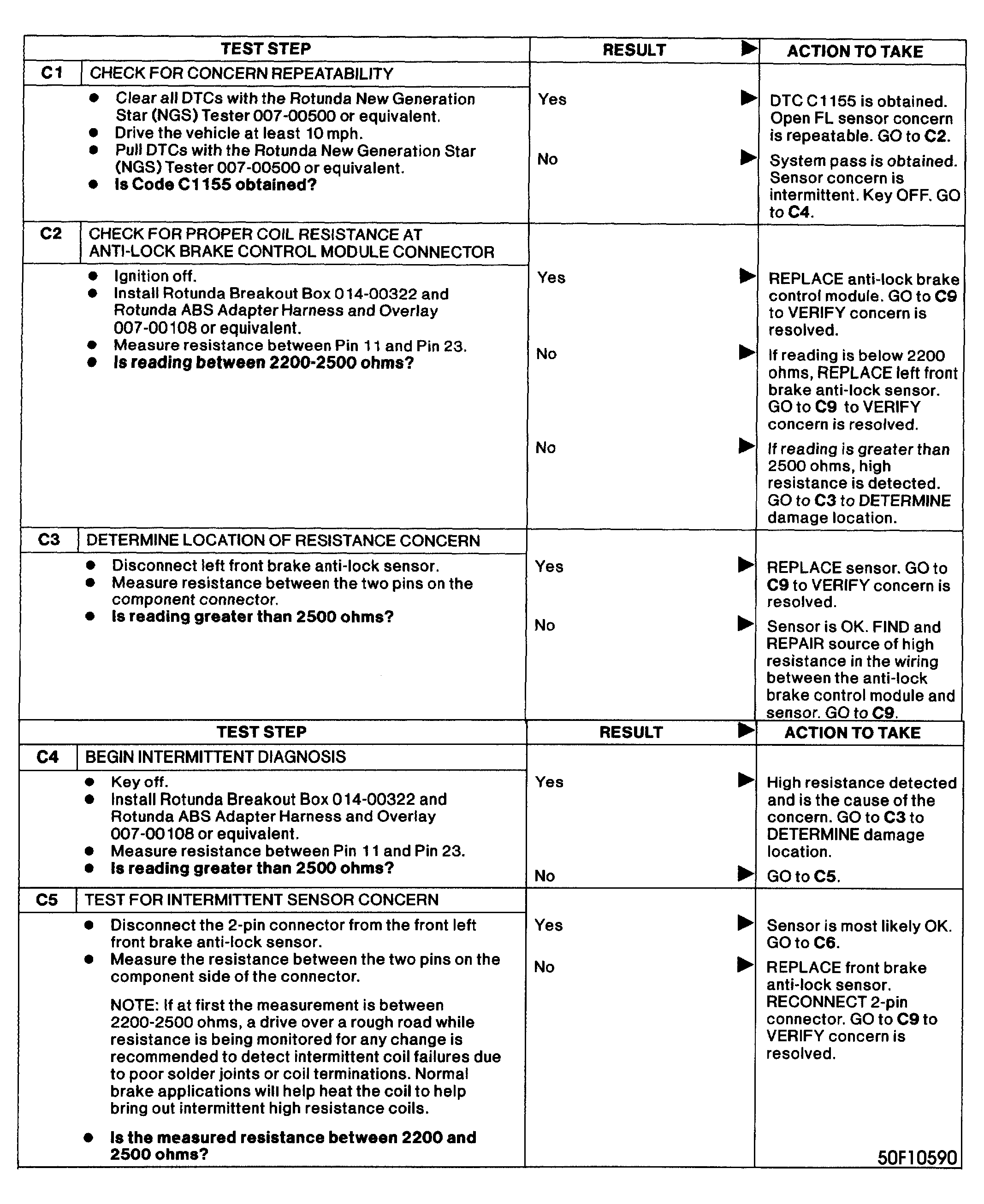

Fig 1: Tests C1-C5 - Front Left Brake Sensor (1 of 2)

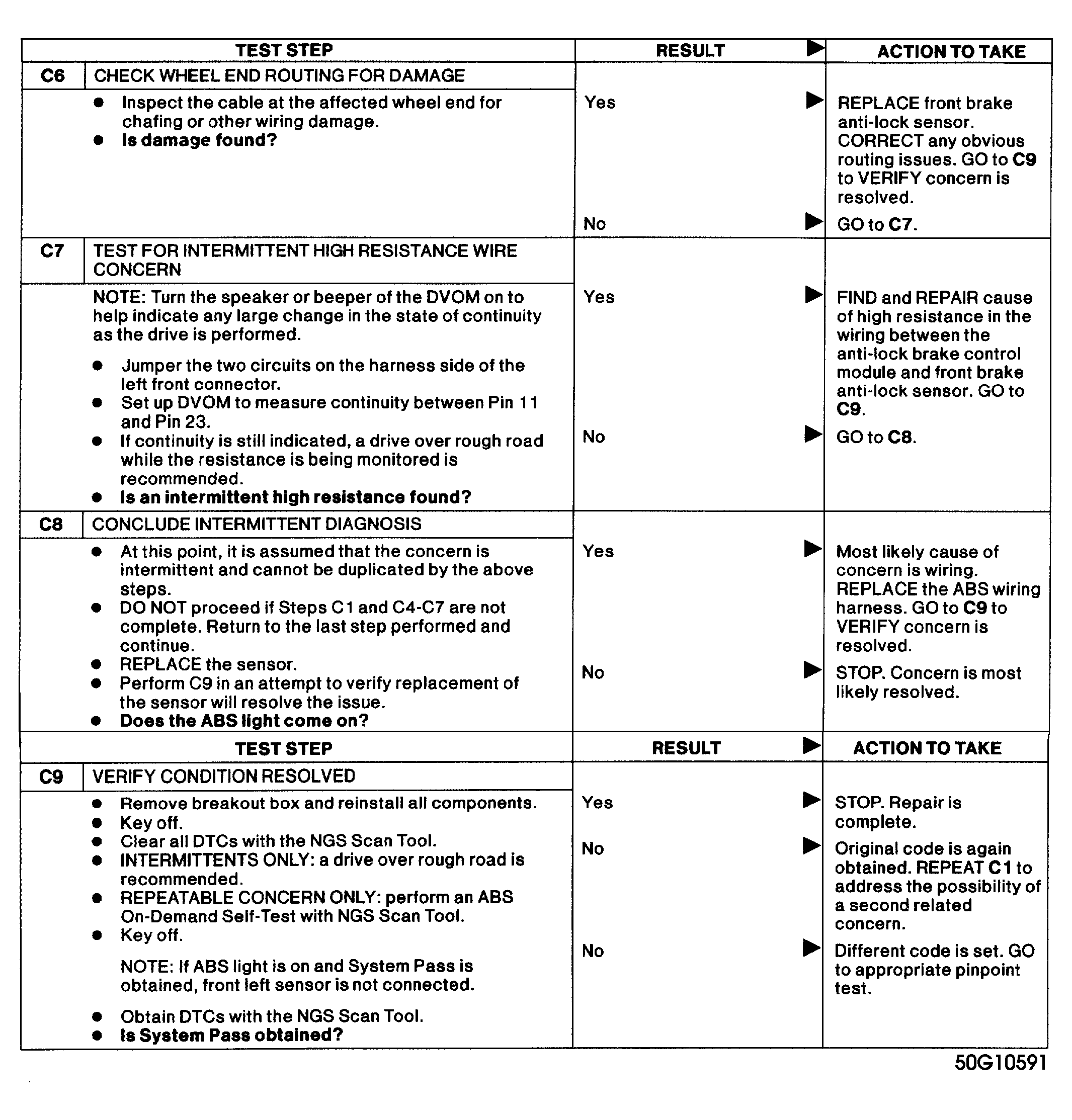

Fig 2: Tests C6-C9 - Front Left Brake Sensor (2 of 2)
