Switch Test
WARNING: This page is about a different car, the 1995 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

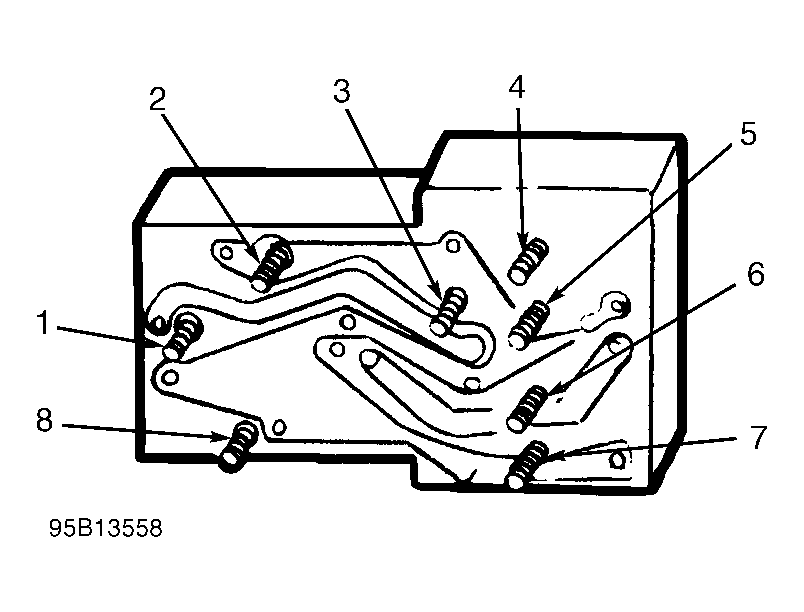

Test for continuity between indicated switch terminals when switch is operated as specified. See POWER SEAT SWITCH CONTINUITY table. See Fig 1 . Replace switch if continuity is not as specified.
POWER SEAT SWITCH CONTINUITY
| Switch Position | Continuity | |||
|---|---|---|---|---|
| 4-Way Lever | ||||
| Neutral (1) | 1, 2, 4, 5, 6, 7 & 8 | |||
| Forward | 2 & 3; 1, 4, 5, 6, 7 & 8 | |||
| Rearward | 3 & 8; 1, 2, 4, 5, 6 & 7 | |||
| Up | 3, 4 & 6; 1, 2, 4, 6 & 8 | |||
| Down | 3, 5 & 7; 1, 2, 4, 6 & 8 | |||
| Rear Tilt | ||||
| Up | 3 & 6; 1, 2, 4, 5, 7 & 8 | |||
| Down | 3 & 7; 1, 2, 4, 5, 6 & 8 | |||
| Front Tilt | ||||
| Up | 3 & 4; 1, 2, 5, 6, 7 & 8 | |||
| Down | 3 & 5; 1, 2, 4, 6, 7 & 8 | |||
|
||||
