Connector Identification

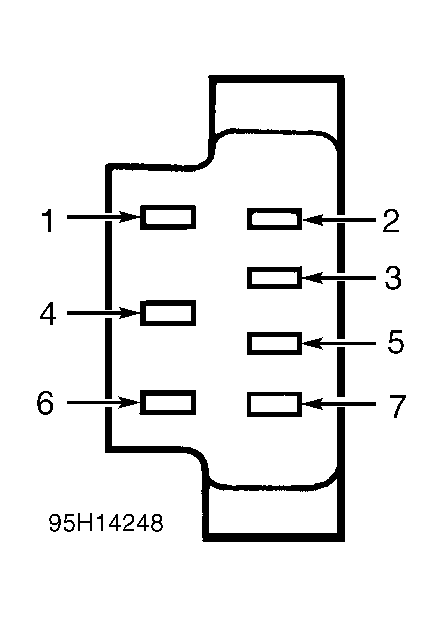

Fig 1: Multi-Function Switch 7-Pin Connector Terminal ID
G95H14248Courtesy of FORD MOTOR CO.

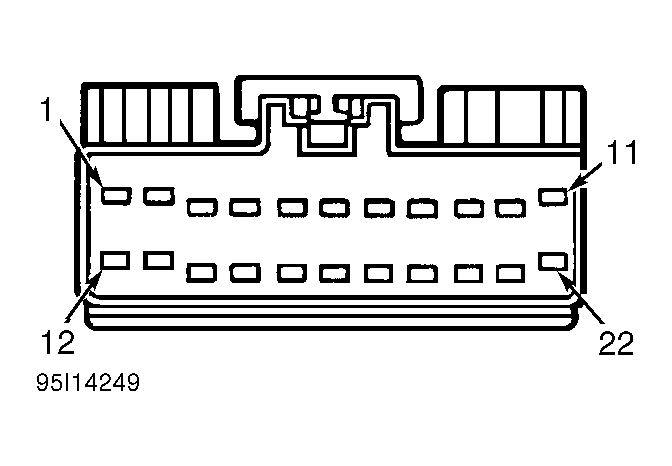

Fig 2: Lighting Control Module (LCM) Connector C2 & Terminal ID
G95I14249Courtesy of FORD MOTOR CO.

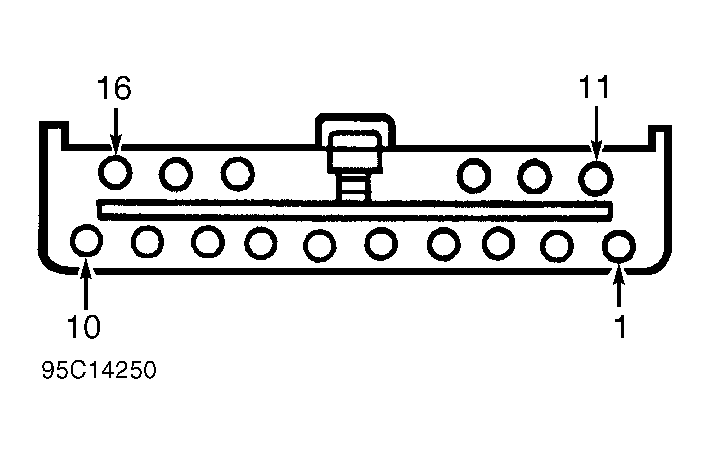

Fig 3: Lighting Control Module (LCM) Connector C3 & Terminal ID
G95C14250Courtesy of FORD MOTOR CO.
Fig 4: Lighting Control Module (LCM) Connector C4 & Terminal ID
G95D14251Courtesy of FORD MOTOR CO.
