Transmission Reassembly: Notes
NOTE:

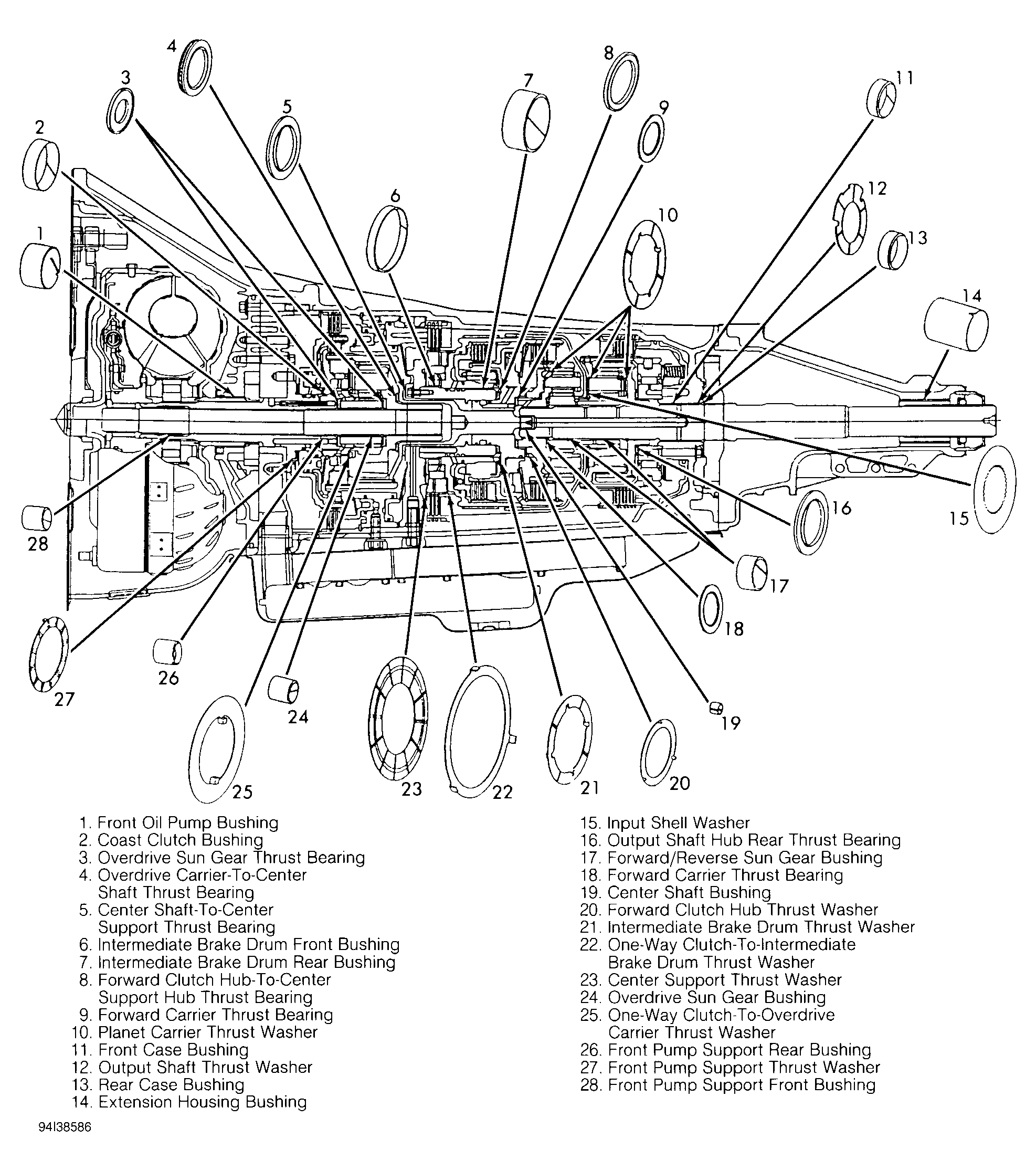

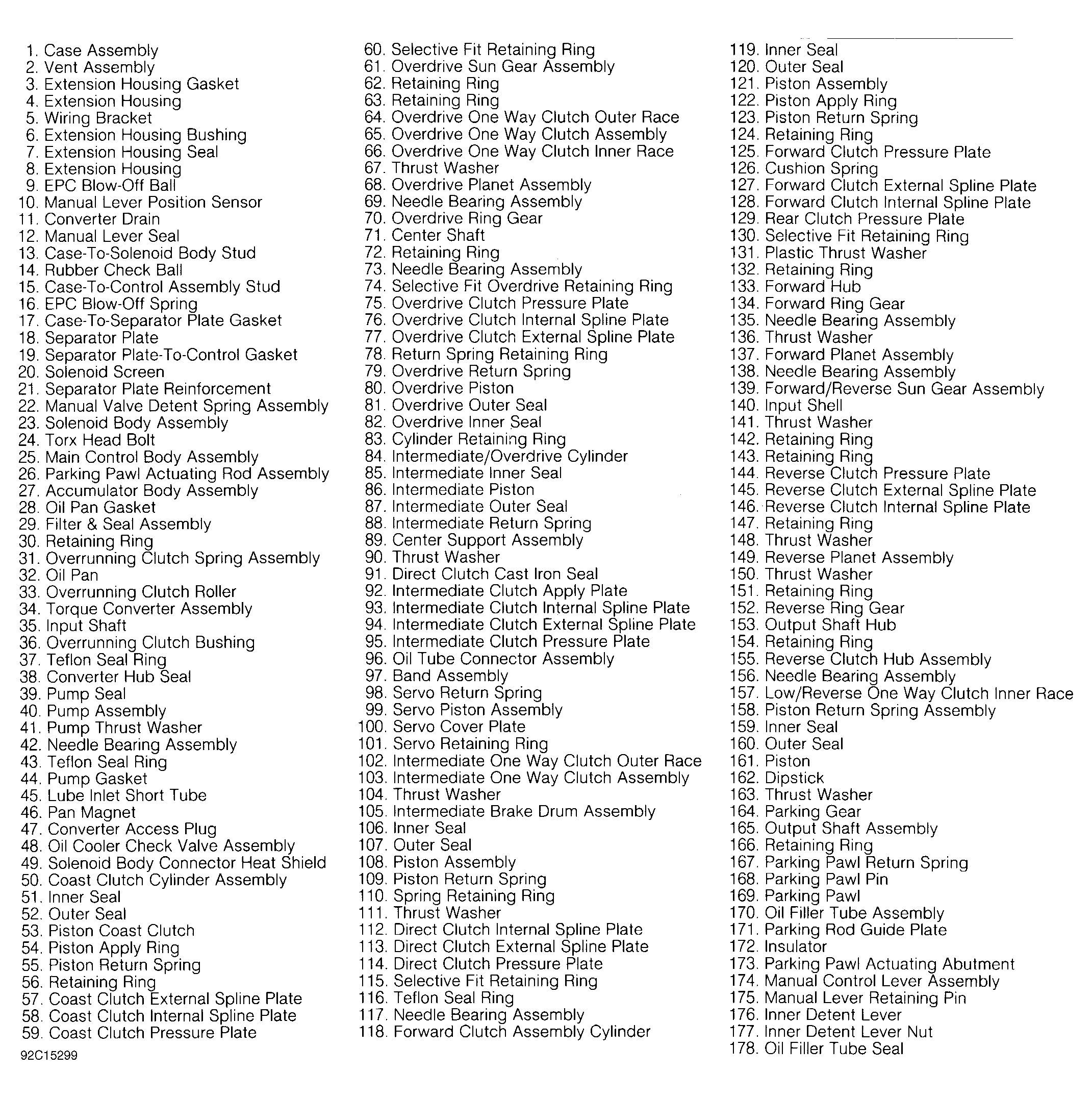

Exploded views of internal parts, thrust washer and needle bearing locations can be found in Figure-Figure
. Lubricate all thrust washers and needle bearings with transmission fluid during reassembly. Thrust washers and gaskets should be held in place with petroleum jelly.
