Line Pressure Test

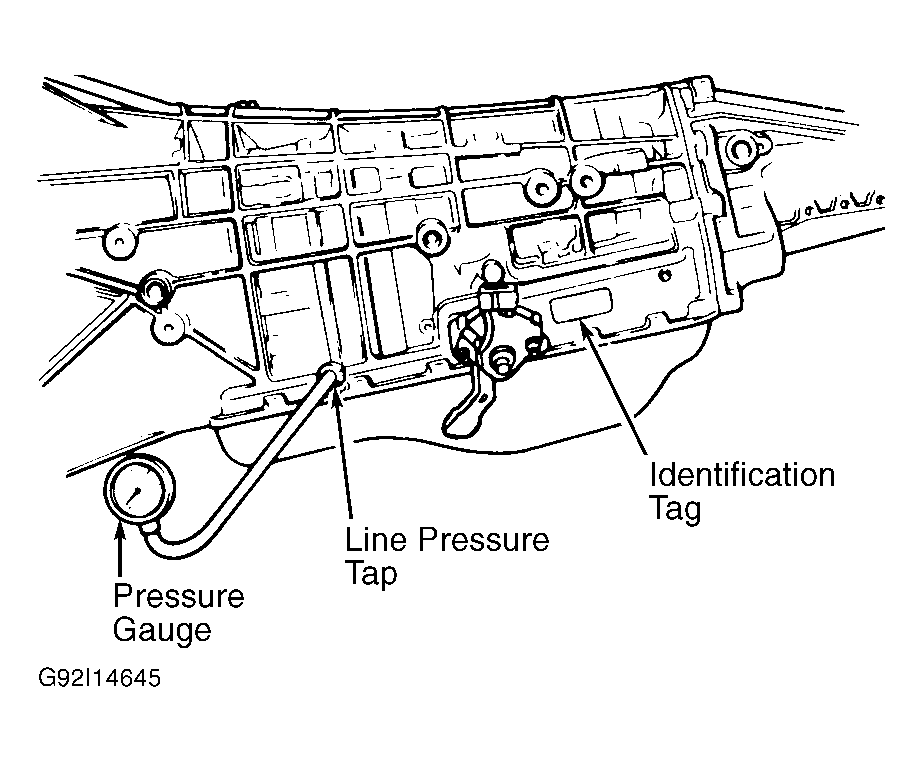

- Connect a 0-300 psi (0-21.1 kg/cm2 ) pressure gauge to line pressure tap on left side of transmission case just forward of control levers. See Fig 1.
- With engine at normal operating temperature, apply parking and service brakes. Check line pressure in all ranges. Pressure should be approximately as specified. See LINE PRESSURE SPECIFICATIONS .
LINE PRESSURE SPECIFICATIONS
| Drive Range | Idle psi (kg/cm2 ) | WOT Stall psi (kg/cm2 ) |
|---|---|---|
| "P", "N" | 55-65 (3.87-4.57) | (Not Applicable) |
| "R" | 75-99 (5.27-6.96) | 240-265 (16.87-18.63) |
| O/D, 2 | 55-65 (3.87-4.57) | 156-174 (10.97-12.23) |
| 1 | 75-99 (5.27-6.96) | 161-186 (11.34-13.08) |
