Sable & Taurus

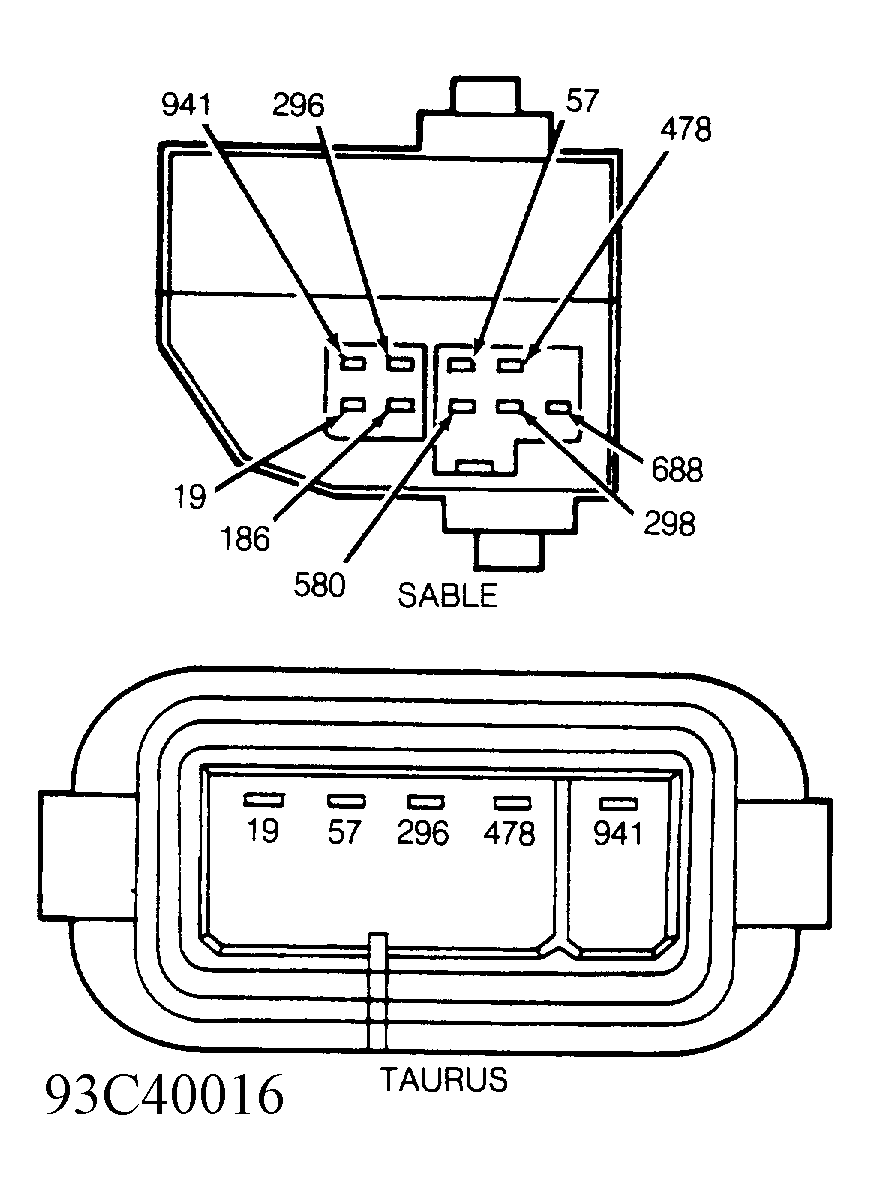

- Remove wiper/washer switch. See WIPER/WASHER SWITCH under REMOVAL & INSTALLATION. Check for continuity between specified terminals with switch in each position. See WIPER/WASHER SWITCH CONTINUITY TEST table. See Fig 1 .
- Check switch operation by moving switch lever during each measurement. If continuity does not exist or is poor in any switch position, replace wiper/washer switch.
WIPER/WASHER SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Sable | ||
| OFF | 57 & 478 | |
| ON | 296, 478 & 941 | |
| Taurus | ||
| OFF | 57 & 478 | |
| ON | 296 & 478 | |
| WASH | 296, 478 & 941 | |
