Track & Motor Assembly: Removal

  1. Remove the two screws that attach each of the motors to the mounting brackets. See Fig 2 .
  2. Disconnect the motor cables from the tracks and remove the motors from the assembly.
  3. Remove the cables. See Fig 3 .
  4. Remove the two retainer screws from each end of the motor. See Fig 4 .
  5. Remove the retainer and cable housing from each end of the motor.
  6. Pull the clips from the cable housing and remove the clips and retainer. See Fig 5 .
  7. Remove the two motor mounting brackets from the tracks.

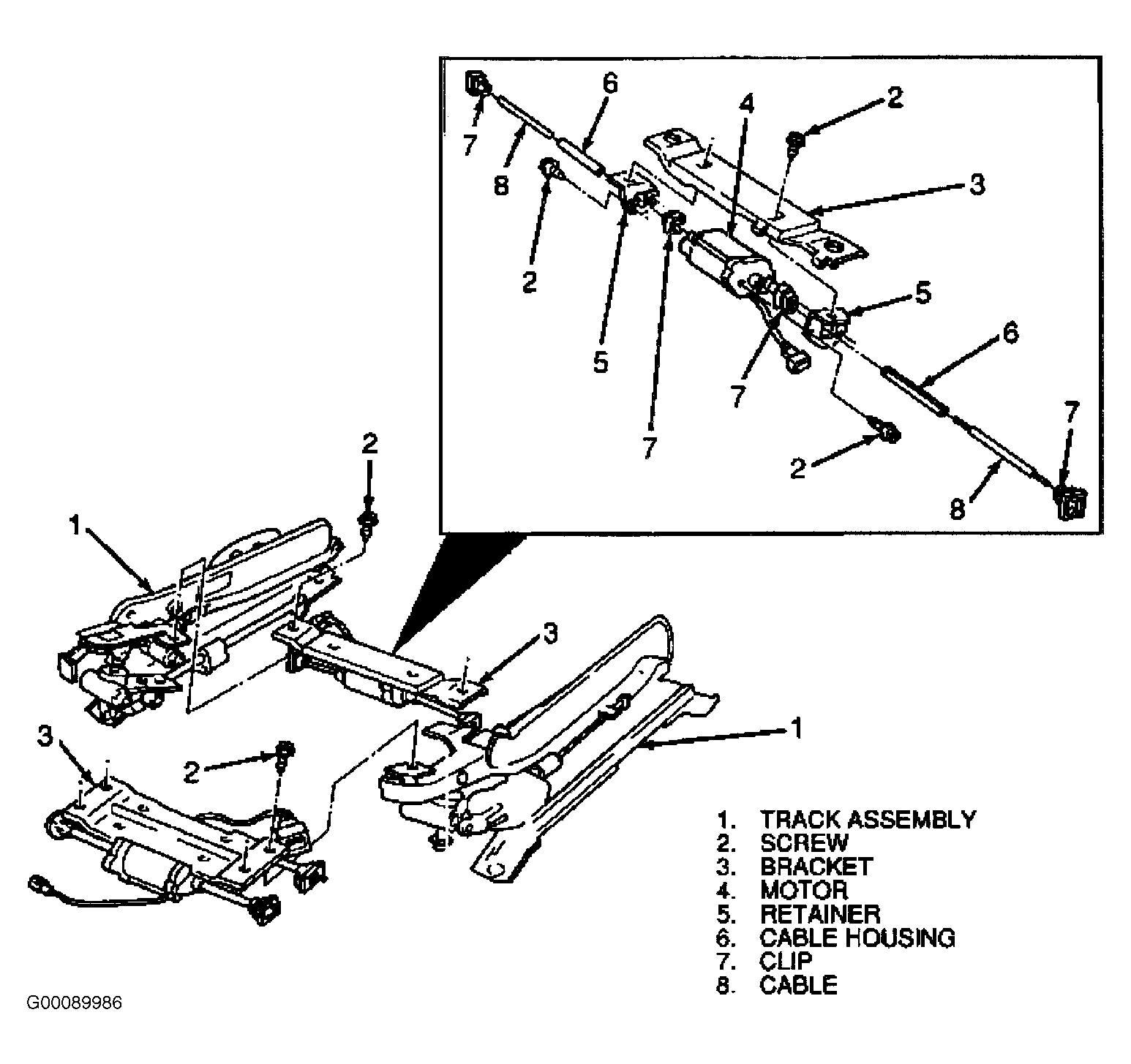

Fig 1: Exploded View Of Seat Track & Motor Assembly
G00089986Courtesy of FORD MOTOR CO.

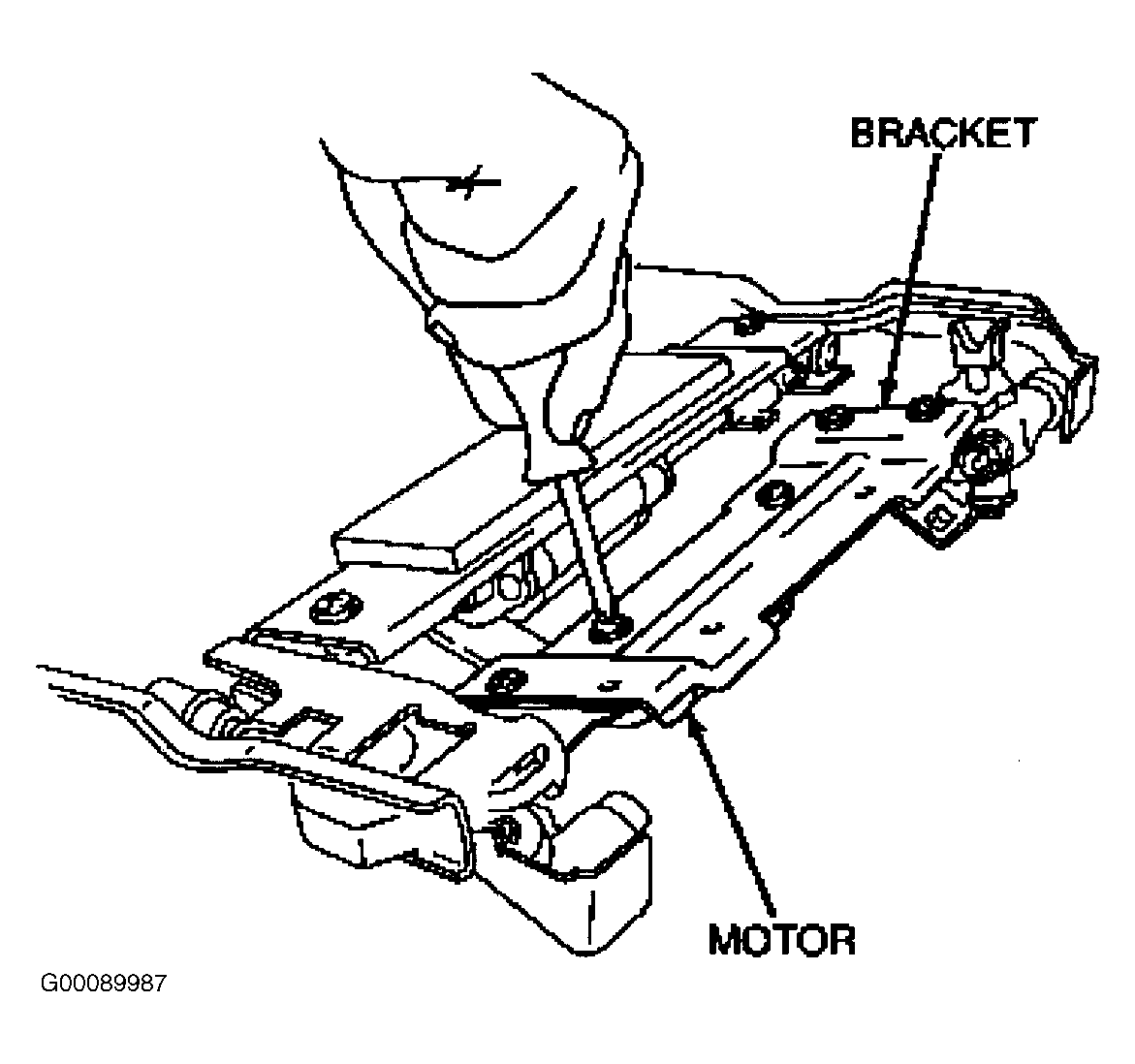

Fig 2: Disconnecting Motors From Mounting Brackets
G00089987Courtesy of FORD MOTOR CO.

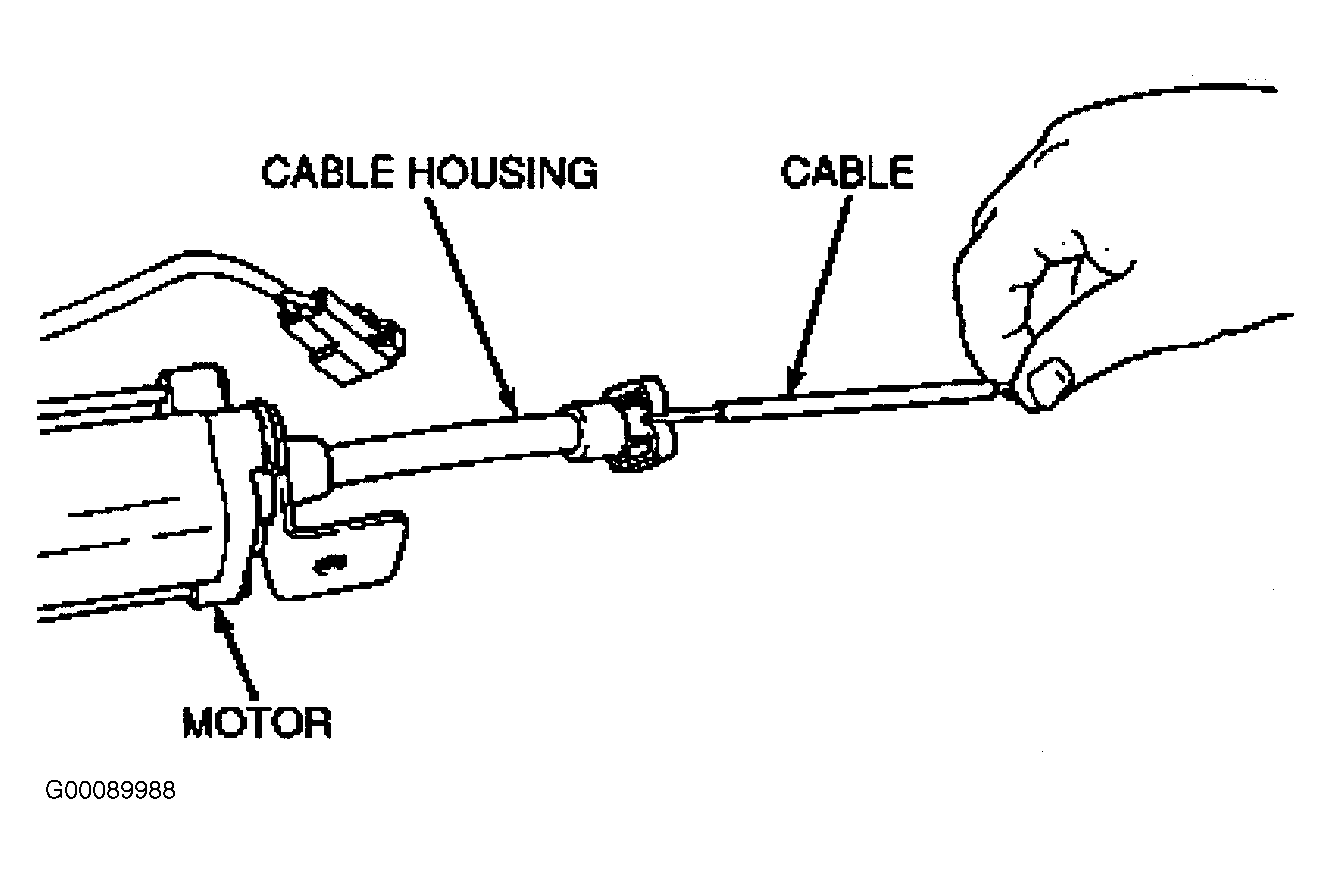

Fig 3: Removing Cable From Cable Housing
G00089988Courtesy of FORD MOTOR CO.

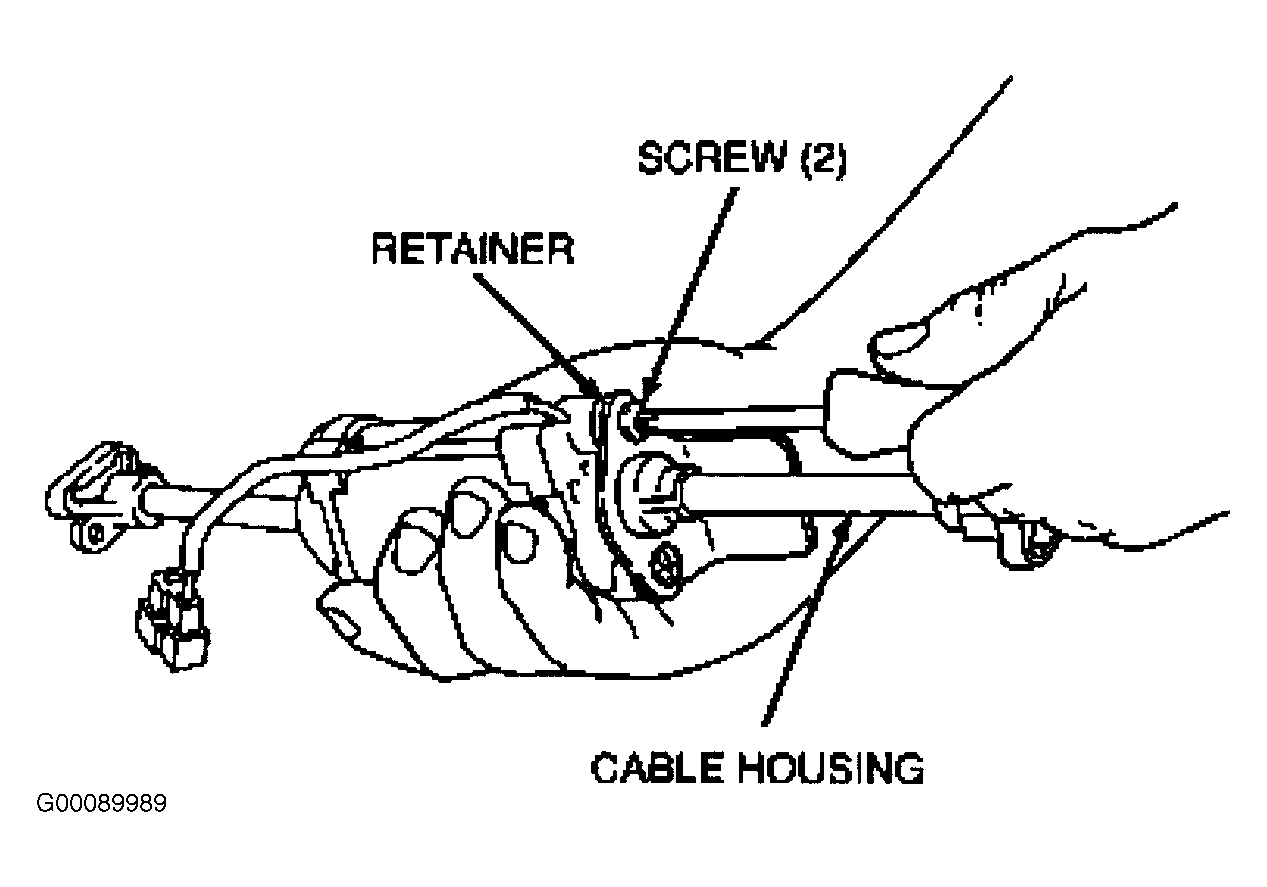

Fig 4: Removing Motor Housing Retainer Screws
G00089989Courtesy of FORD MOTOR CO.

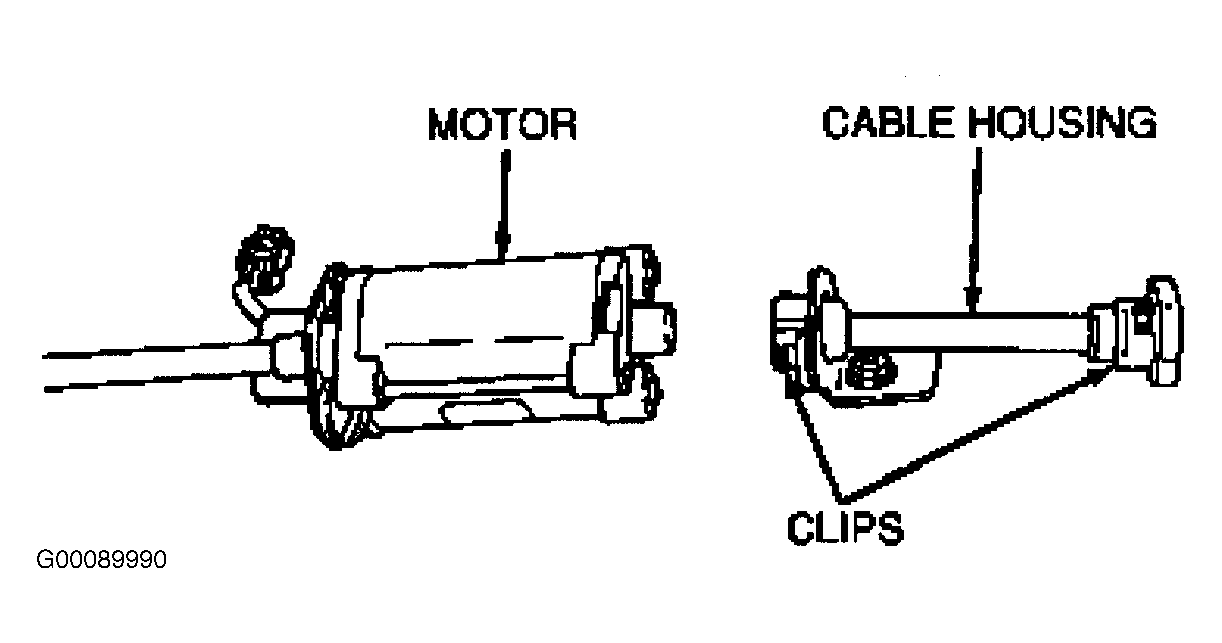

Fig 5: Removing Cable Housing From Motor
G00089990Courtesy of FORD MOTOR CO.
