Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

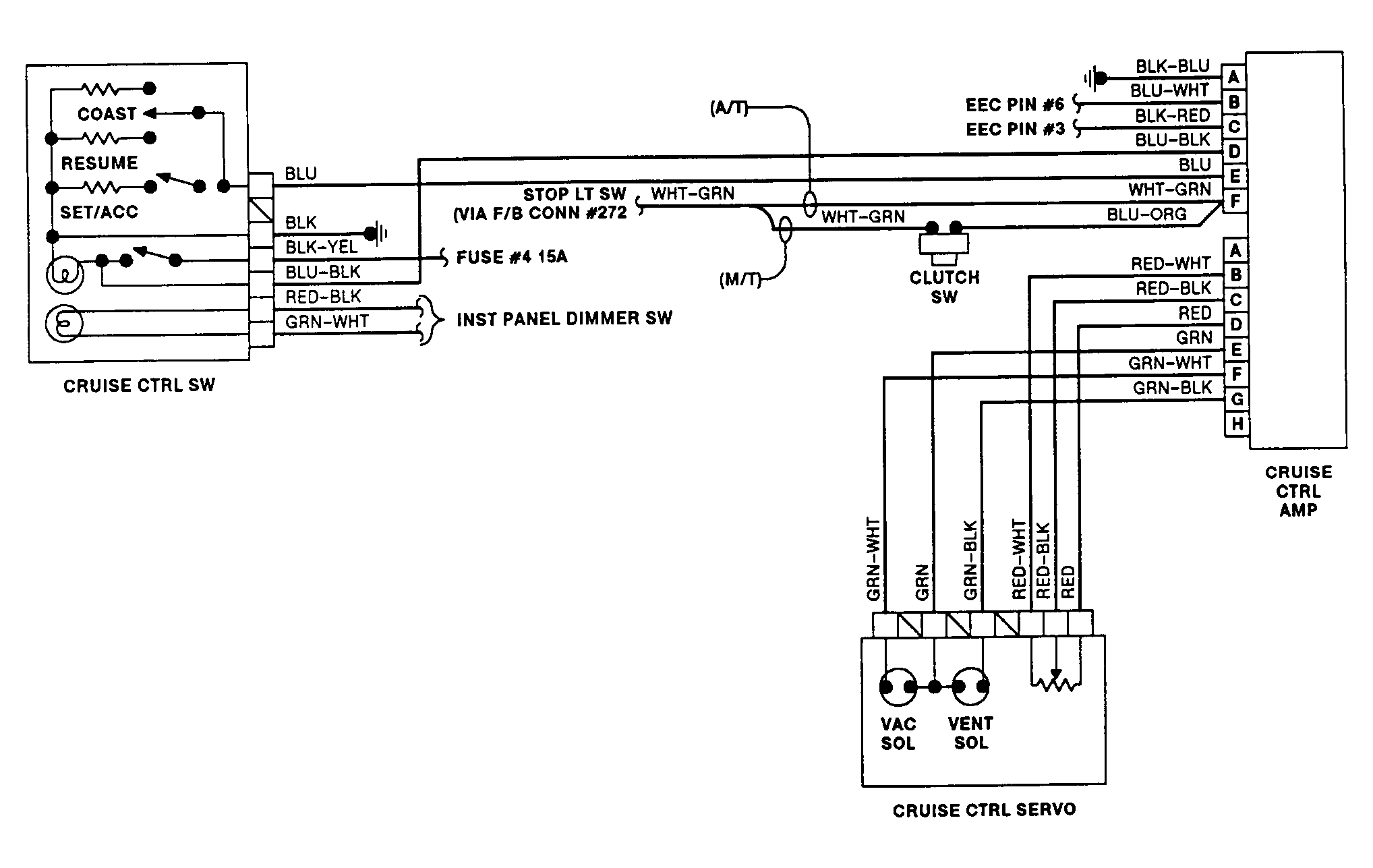

Fig 1: 1991 Cruise Control System (2.2L)

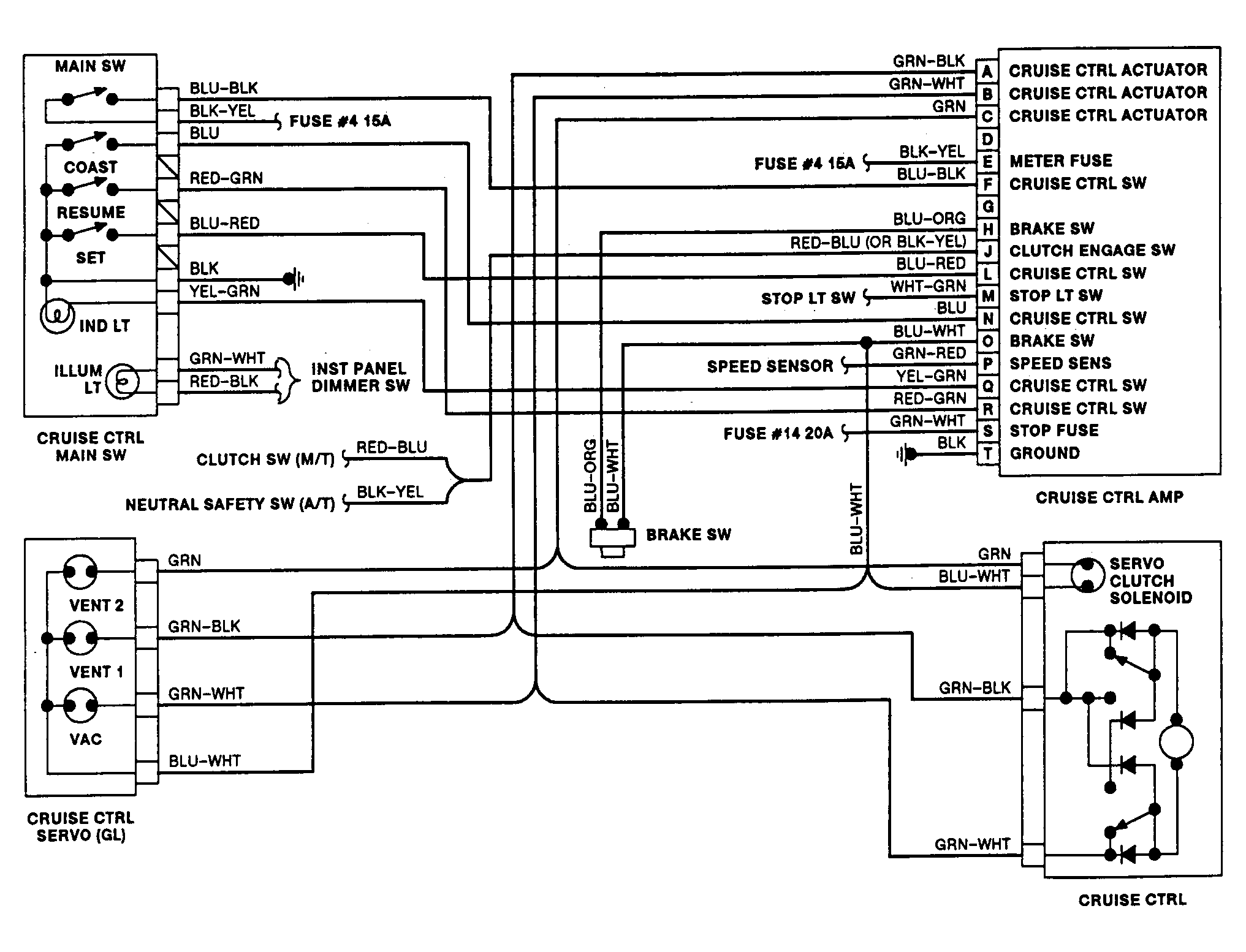

Fig 2: 1991 Cruise Control System (3.0L)

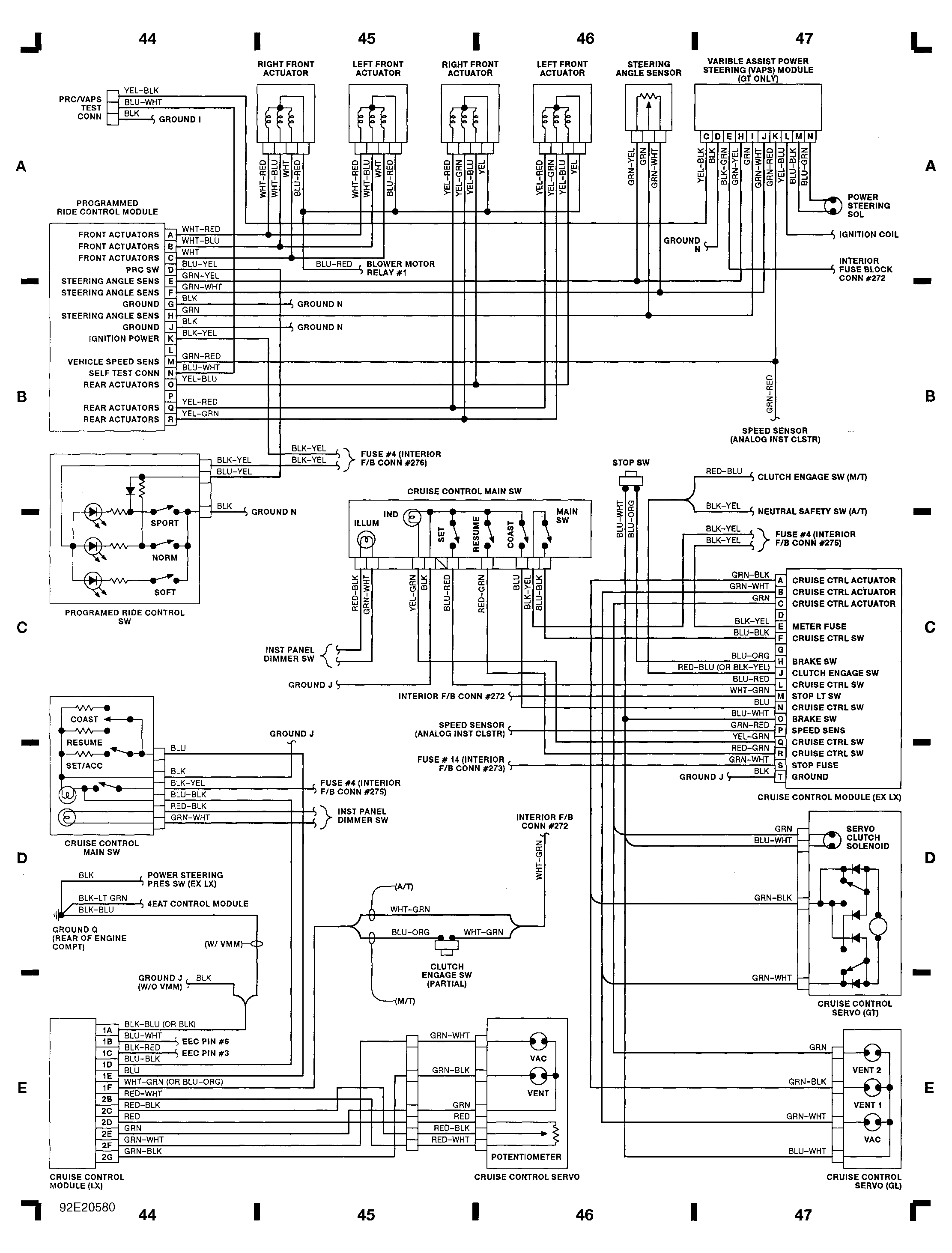

Fig 3: 1992 Cruise Control System (Grid B-E 44-47)
