Alternator - Models W/External Regulator: Description
NOTE:
Unless otherwise specified, references to Pickup include the F350 Super Duty commercial chassis.

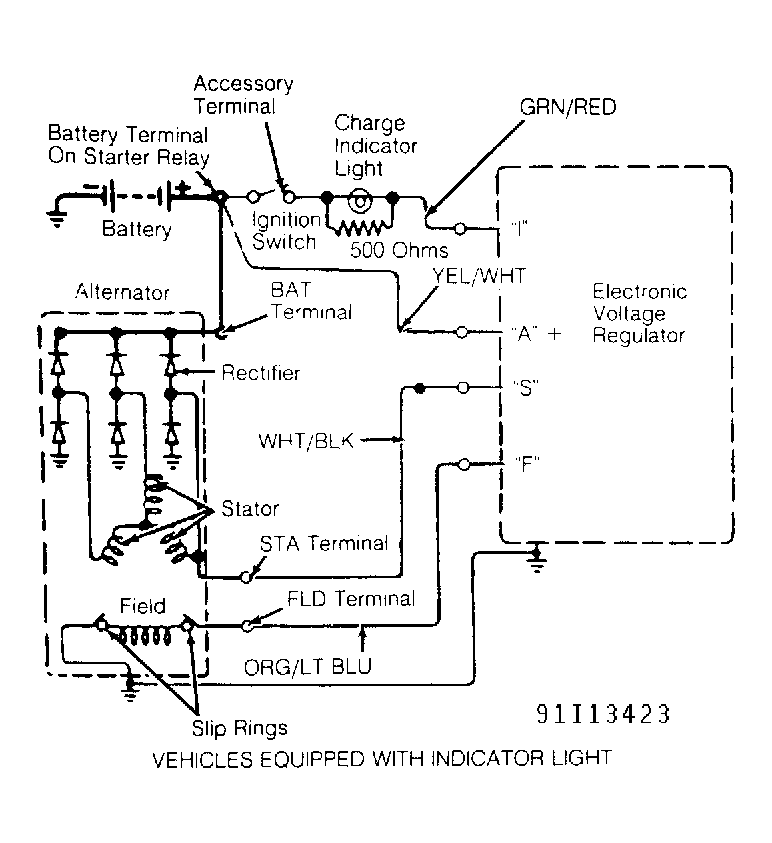

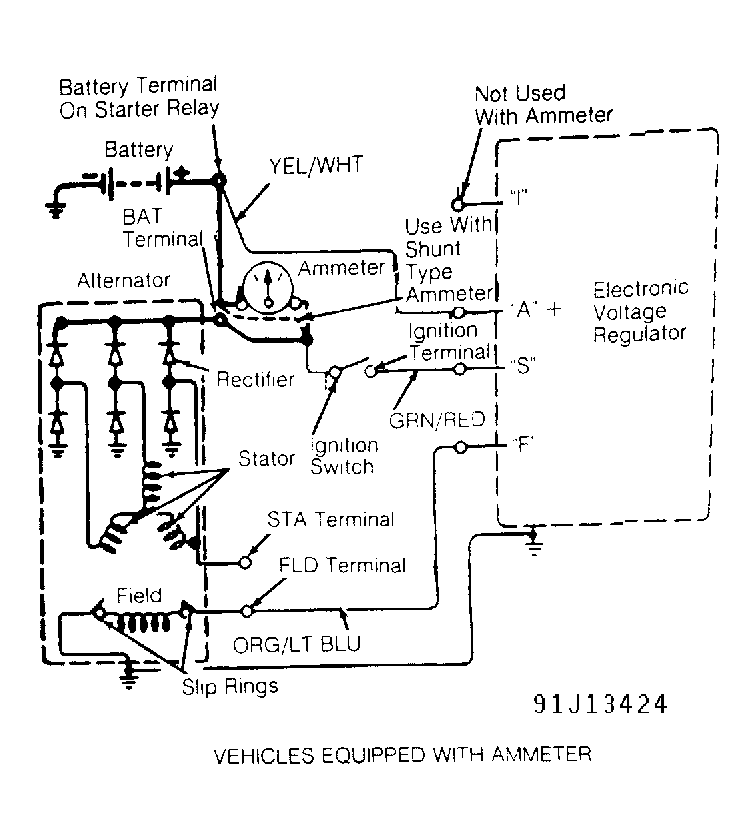

Major components of the alternator are a rotor, stator, rectifier assembly and end housings. An external regulator controls alternator output. See Fig 1 & 2.
