Wiper Switch/Interval Wiper Module: Removal

1. Remove the combination switch. See 1990 STEERING FORD MOTOR CO. - STEERING COLUMN article in STEERING.
2. Remove the attaching screws and the switch. See Fig 1 and Fig 2 .

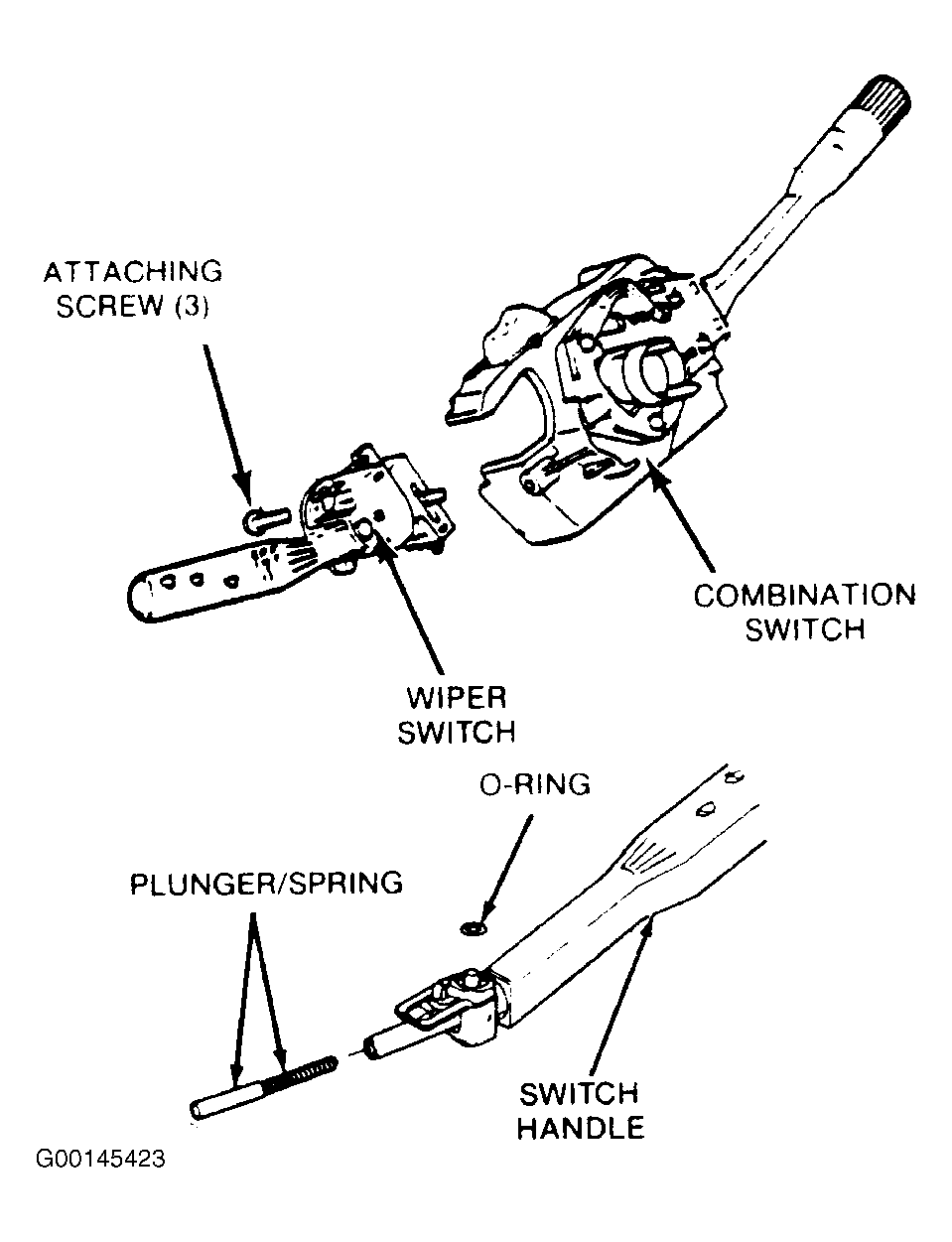

Fig 1: Exploded View Of Wiper Switch Components

Courtesy of FORD MOTOR CO.

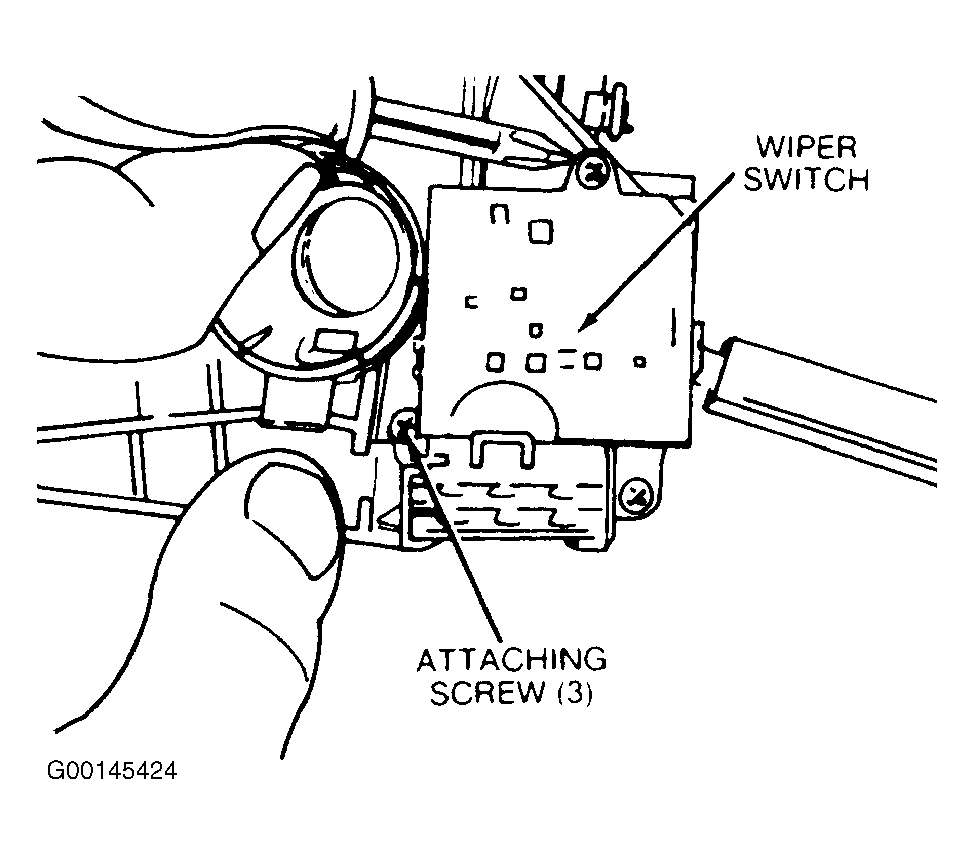

Fig 2: Removing Attaching Screws & Switch

Courtesy of FORD MOTOR CO.
