Exhaust Heat Control Valve

Used to divert hot gases from the exhaust manifold to the intake manifold riser pad to heat the incoming air/fuel charge. Two types are used, a bi-metallic spring type and a vacuum actuated type.

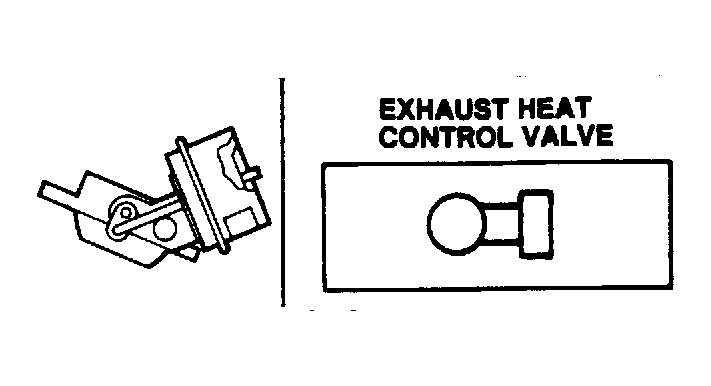

Fig 1: Exhaust Heat Control Valve
G13261
