Wipers Inoperative

Check wiper fuse and replace if necessary. If fuse blows again, check for short to ground in BLU wires at wiper/washer switch, interval governor and front wiper motor. Repair BLU wire as necessary. If fuse is okay, proceed to INTERMITTENT SUPPLY CHECK.

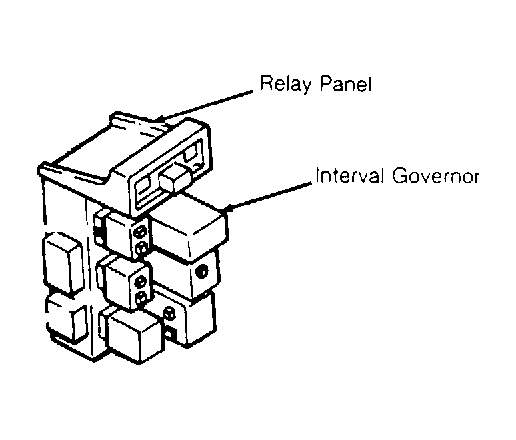

Fig 1: Interval Governor Location
G109033Courtesy of FORD MOTOR CO.
