Circuit Breaker Test

  1. Remove circuit breaker from fuse panel. Connect tester to circuit breaker. Adjust tester to 6 amps and leave on for 10 minutes. Replace circuit breaker if it opens.
    Fig 1: Motor Current Draw Test
    G1017

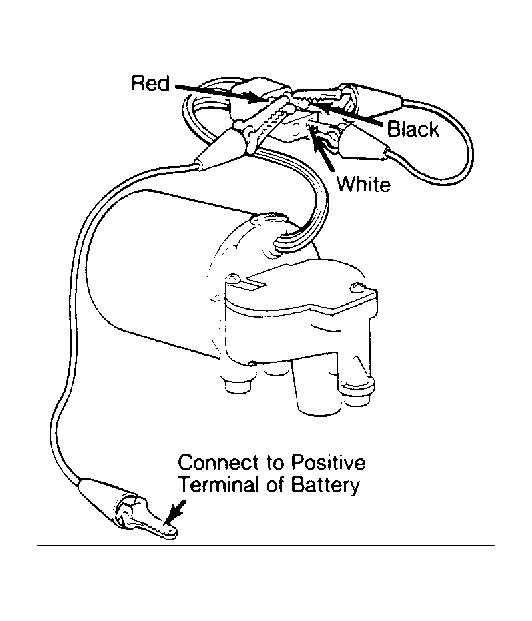

    Fig 2: Motor Park Test
    G1015
  2. Adjust tester so current flow is 12 amps. Breaker should open within 30 seconds. If breaker does not open, replace breaker.
