"E" Models
NOTE:
"E" models switch assembly is identified by the letter "U" stamped on outside surface of assembly.

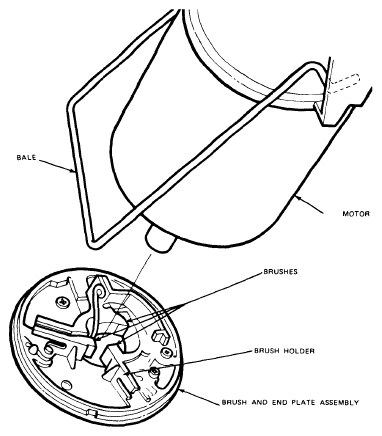

To remove cover and switch assembly, remove four cover attaching screws and replace using the appropriate kit, making sure ground strap is reinstalled under cover screw. To remove brush end plate, observe position of bale retainer, then pry off using a screwdriver. Remove end plate and plug, then replace using the appropriate kit while noting the following: Use a fine wire probe through hub opening to position brushes on commutator. Rotate end plate to position key in notch and assemble plug. Do not overbend bale retainer when installing.
