Mount, Motor: Removal: Left

  1. Raise the vehicle. Refer to HOISTING .
  2. Remove the left front wheel and tire assembly.
  3. Support the Electric Drive Unit (EDU) using a suitable transmission jack, or similar.

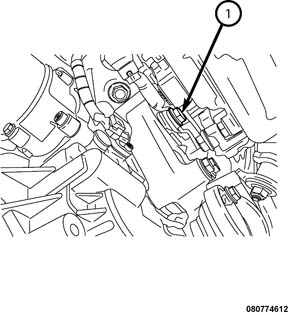

    Fig 1: LH Motor Mount Through-Bolt
    GC0157666Courtesy of CHRYSLER GROUP, LLC
  4. Remove the left motor mount through-bolt (1).
  5. Remove the three left motor mount bolts, and remove the left motor mount.
