Radiator, Power Electronics Coolant: Installation: Installation

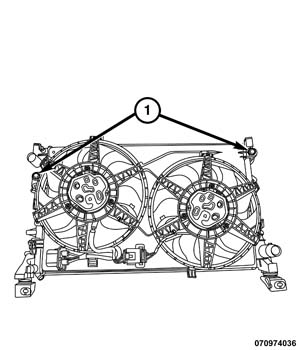

Fig 1: Cooling Fan Assembly Bolts

Courtesy of CHRYSLER GROUP, LLC

1. Install the cooling fan to the power electronics coolant radiator.
2. Install the two cooling fan assembly screws (1), and tighten to 8 N.m (71 in. lbs.).
   Fig 2: Cooling Module Lower Bracket & Bolt

   Courtesy of CHRYSLER GROUP, LLC
3. Install the two lower power electronics coolant radiator brackets (2) on the radiator.
4. Position the power electronics coolant radiator, and install the two lower power electronics coolant radiator bracket screws (1). Tighten the screws to 8 N.m (71 in. lbs.).
   Fig 3: Engine Cooling Fan, Connector & Fasteners

   Courtesy of CHRYSLER GROUP, LLC
5. Connect the cooling fan assembly electrical connector (3).
6. Connect the two power electronics coolant radiator hoses.
7. Install the A/C condenser. Refer to CONDENSER, A/C, INSTALLATION .
8. Connect the negative 12-volt battery cable.
9. Power up the high-voltage system. Refer to HOISTING, STANDARD PROCEDURE .
10. Fill the power electronics cooling system. Refer to HIGH-VOLTAGE BATTERY COOLING AND HEATING SYSTEM, STANDARD PROCEDURE .
11. Install the electric motor trim cover. Refer to COVER, BEAUTY, INSTALLATION .
