Blower Resistor Test

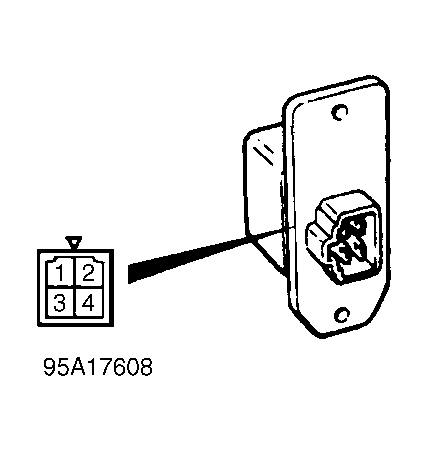

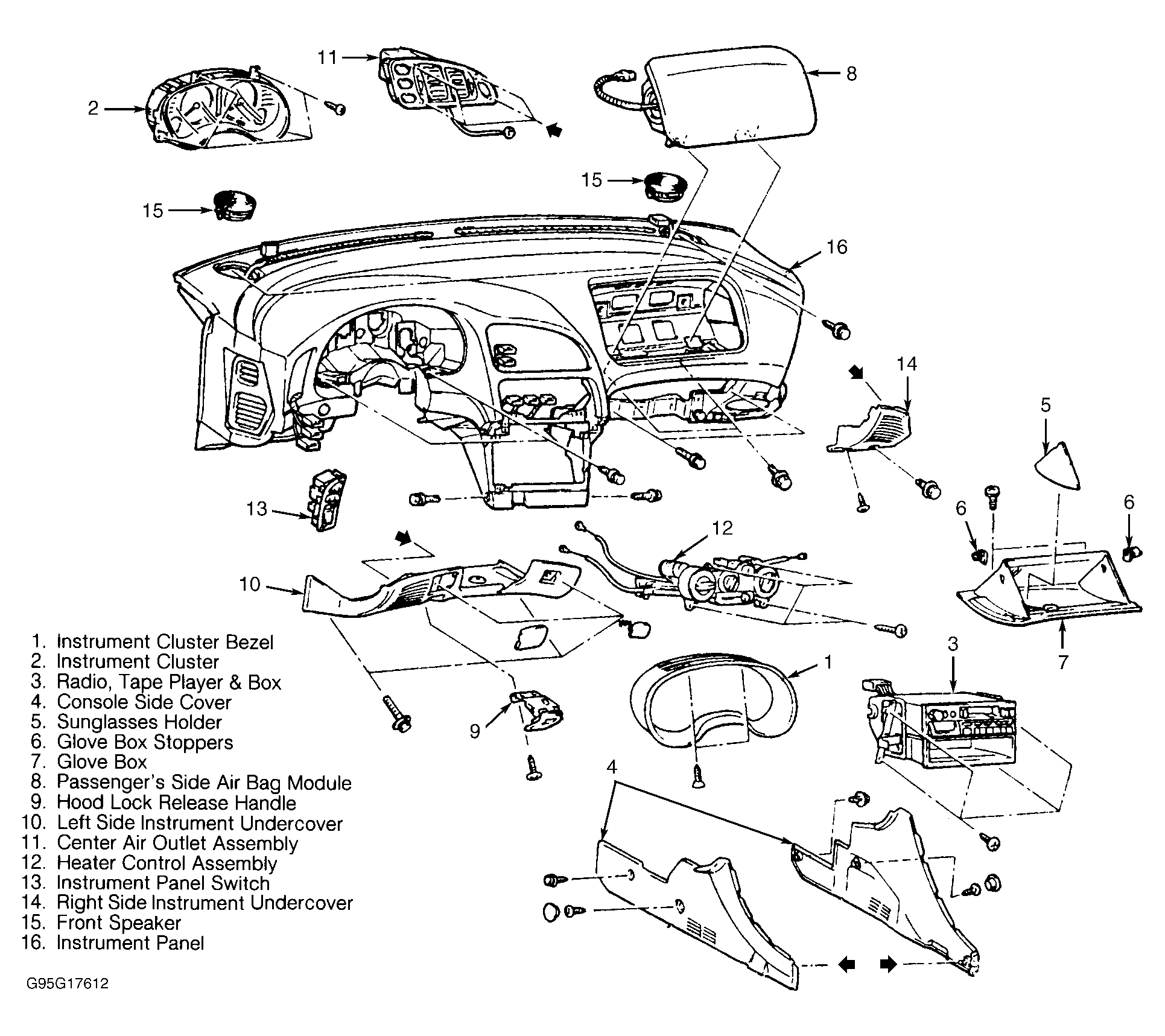

Open glove box, and remove stoppers. See Figure. Tilt glove box down and forward. Disconnect blower resistor connector. See Fig 1. Using an ohmmeter, measure resistance between specified resistor terminals. See BLOWER RESISTOR SPECIFICATIONS table. If resistance is not within specification, replace blower resistor.
BLOWER RESISTOR SPECIFICATIONS
| Terminal No. | Ohms |
|---|---|
| 3 & 2 | 1.83 |
| 3 & 4 | 0.87 |
| 3 & 1 | 0.31 |
