Removal & Installation

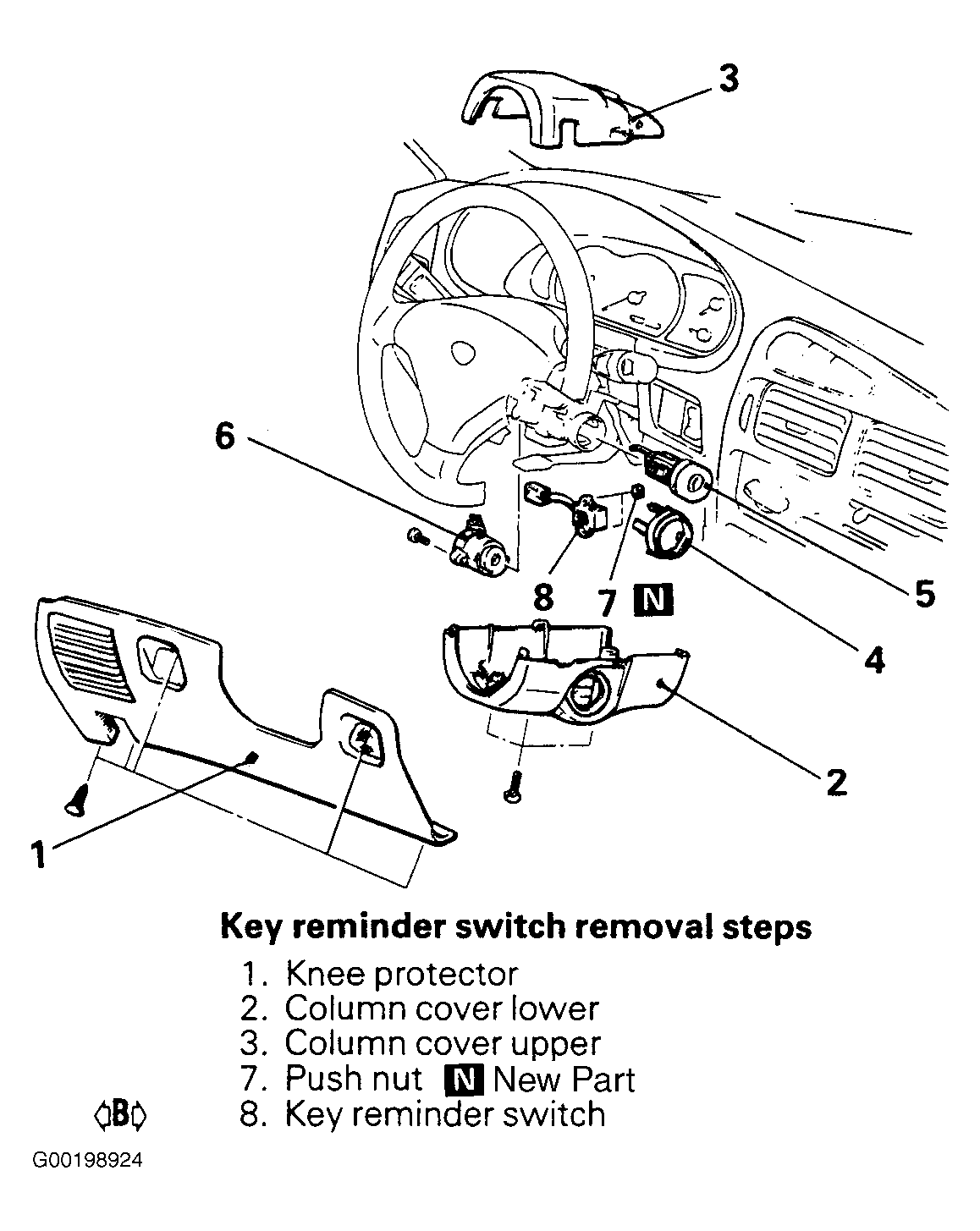

- For removal procedures, follow numbered steps in illustration. See Fig 1
.
- For installation procedures, follow the numbered steps in in reverse order. See Fig 1
.
- Numbered steps in illustration refer to service points to observe while removing and installing components. Some illustrations have "ARROWS" pointing AWAY from each other, refer to service points to be observed while performing that step of the removal procedure. Some illustrations have "ARROWS" pointing TOWARD each other, refer to service points to be observed while performing that step of the installation procedure.
- More detail on specific step(s) is covered, as necessary, under Points Of Removal
.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
