Wiring Diagrams

NOTE: Due to the size and complexity of the Wiring Diagrams it is recommended that the Diagram be printed.

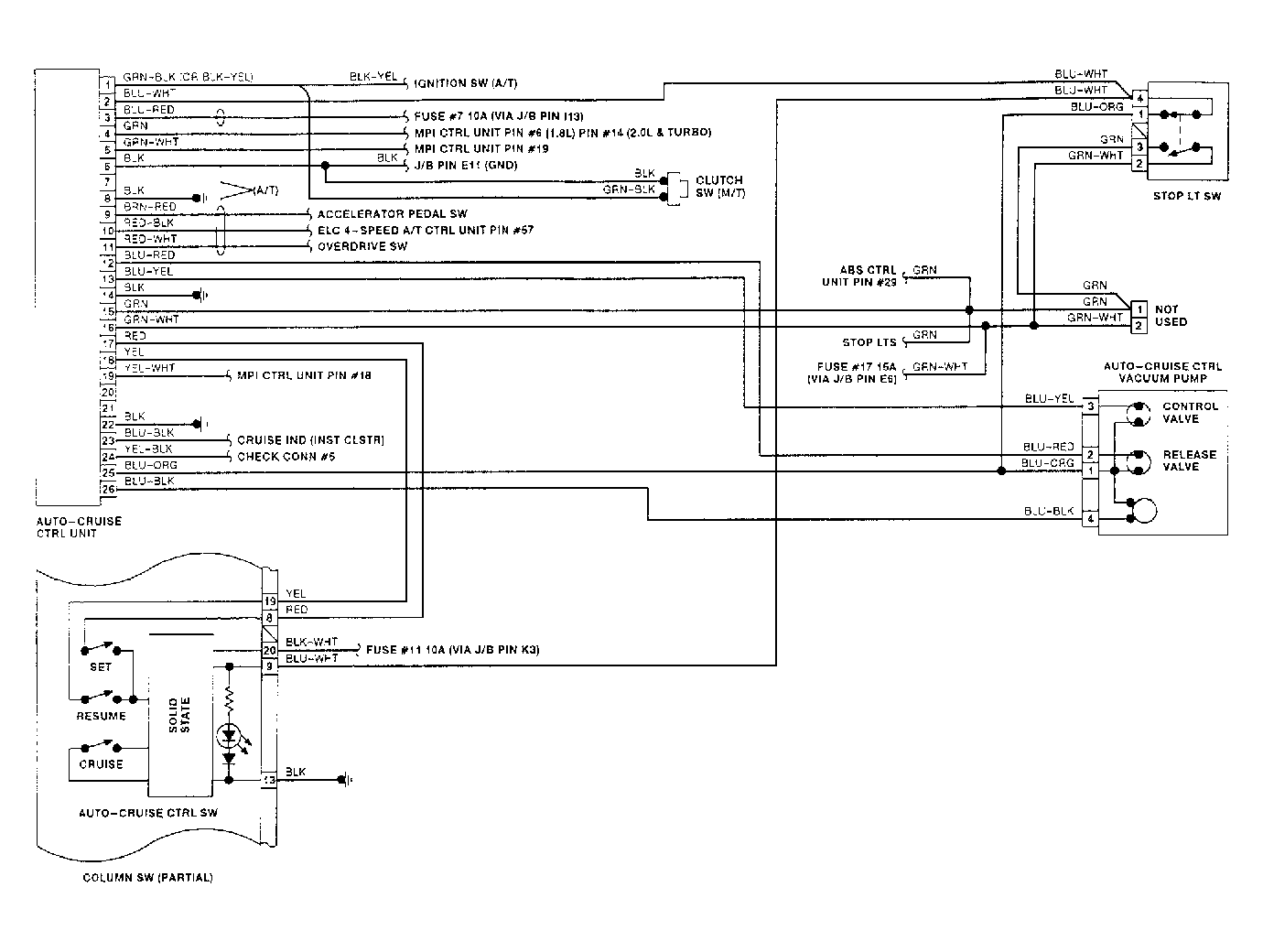

Fig 1: Cruise Control System Wiring Diagram (1991)
G92G05133

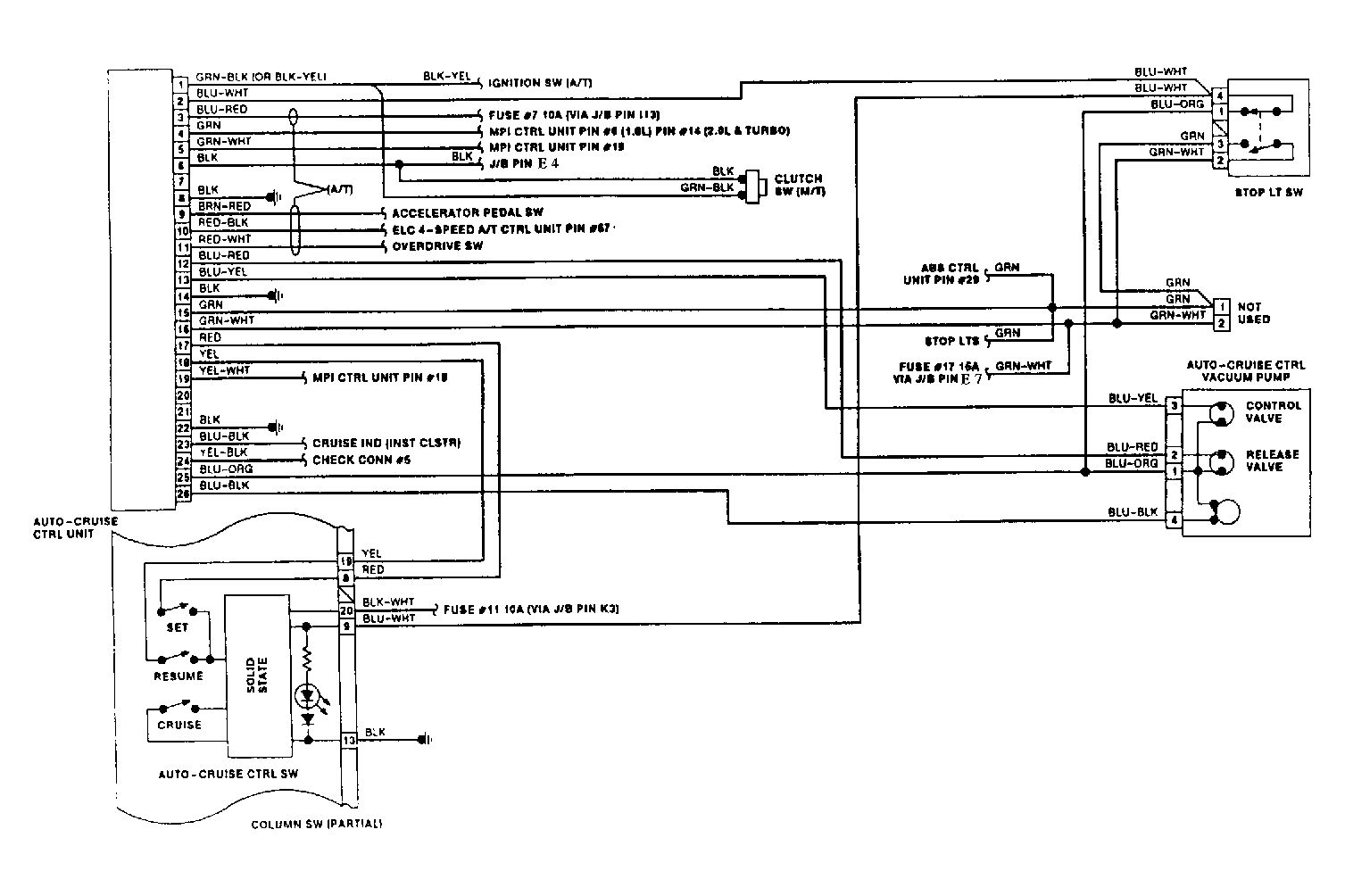

Fig 2: Cruise Control System Wiring Diagram (1992)
G92F06293
