Summit Base, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Wiring Diagrams
Wiring Diagrams

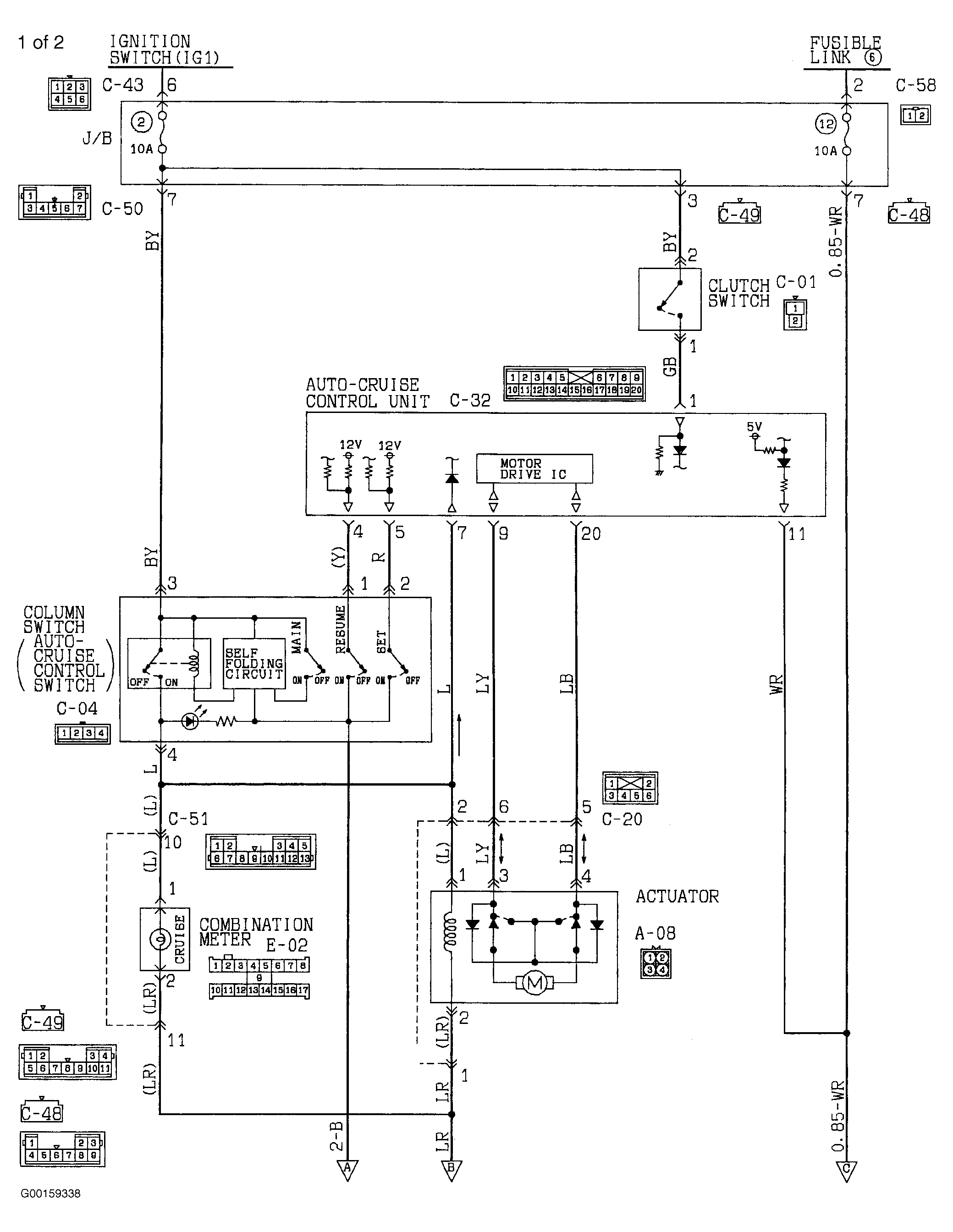

Fig 1: Auto-Cruise Control Circuit - 1.6L Engine (M/T -1 Of 2)
Courtesy of CHRYSLER CORP.

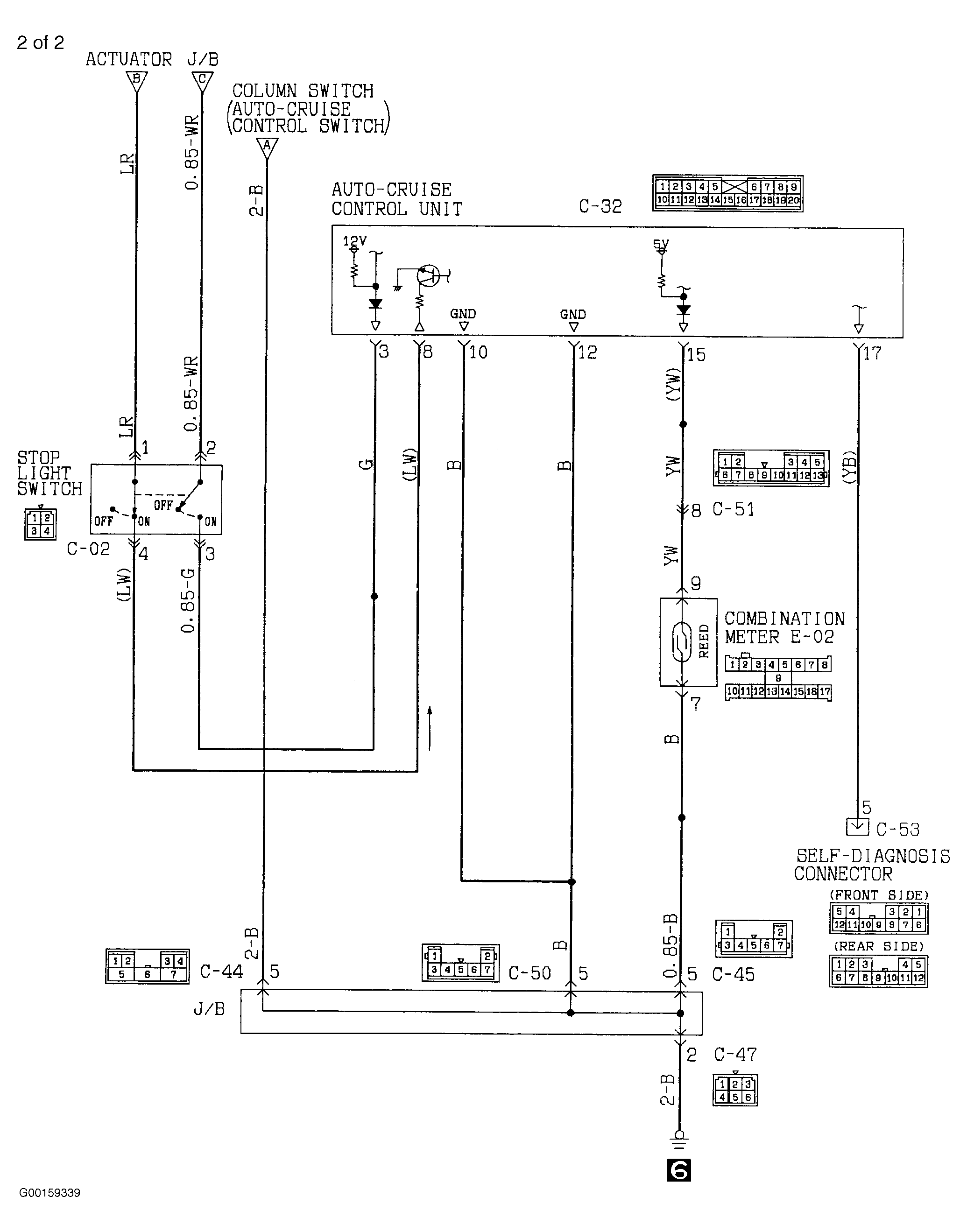

Fig 2: Auto-Cruise Control Circuit - 1.6L Engine (M/T - 2 Of 2)
Courtesy of CHRYSLER CORP.

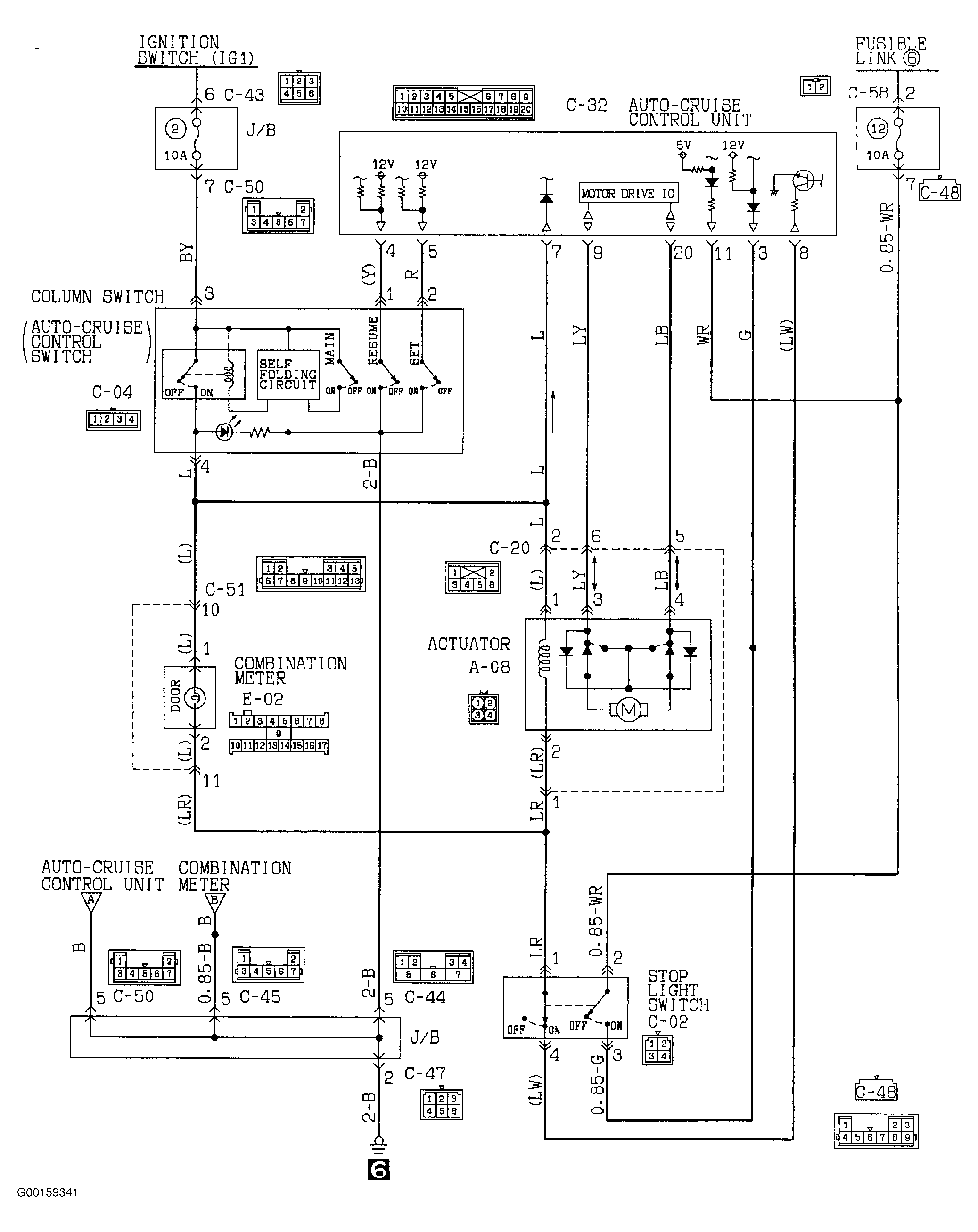

Fig 3: Auto-Cruise Control Circuit - 1.6L Engine (A/T - 1 Of 2)
Courtesy of CHRYSLER CORP.

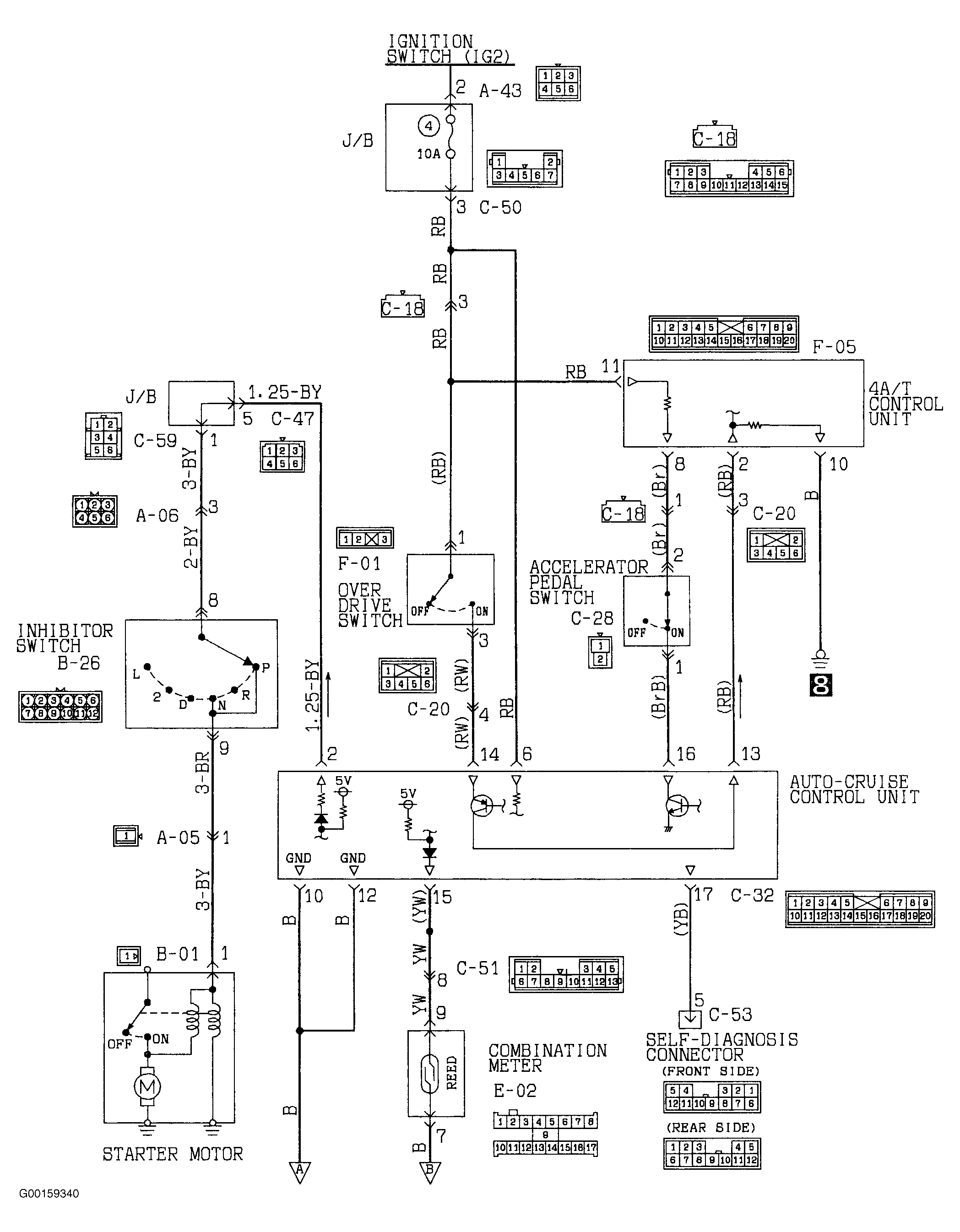

Fig 4: Auto-Cruise Control Circuit - 1.6L Engine (A/T - 2 Of 2)
Courtesy of CHRYSLER CORP.
