Steering Column: Reassembly

  1. To reassemble, reverse disassembly procedure. Align steering lock with column boss. Ensure steering lock is operational. Tighten bolt until bolt head breaks off. Install column bracket bolt and tighten until head breaks off. Apply adhesive to outside of bearing prior to installation in column tube. Apply multipurpose grease to bearing prior to installation.

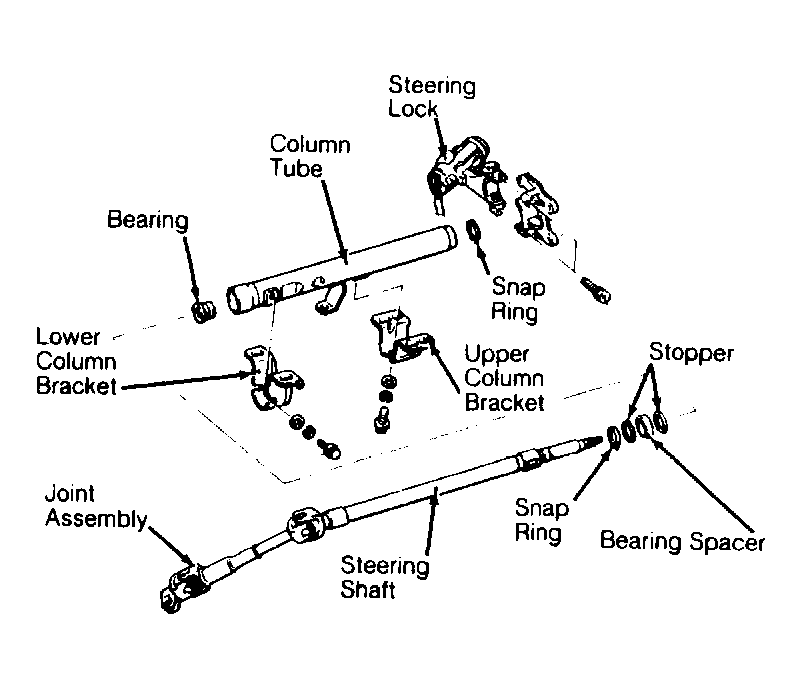

Fig 1: Exploded View of Steering Column
G90J01400Courtesy of CHRYSLER MOTORS
