Removal And Installation: Removal

  1. Place the steering wheel is in the central position and the wheels are straight.
  2. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
    GC0171654Courtesy of CHRYSLER GROUP, LLC
  3. Release the lever (1) and remove the steering column lower cover bolts (2).
  4. Remove the lower steering column cover (3).
    GC0171387Courtesy of CHRYSLER GROUP, LLC
  5. Release the retainers (1b) and remove the side panel (1a).
  6. Remove the upper steering column cover screws.

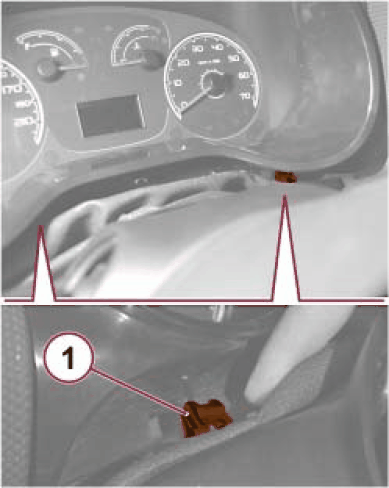

    GC0171884Courtesy of CHRYSLER GROUP, LLC
  7. Release the retaining clips (1) for the dust cover for the steering column upper trim.
    GC0171782Courtesy of CHRYSLER GROUP, LLC
  8. Release and remove the upper steering column cover (1).
