Switch, Evaporative Emissions System Monitor: Removal

The Evaporative System Integrity Monitor (ESIM) switch is located on the vapor canister.

1. Disconnect and isolate negative battery cable.
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

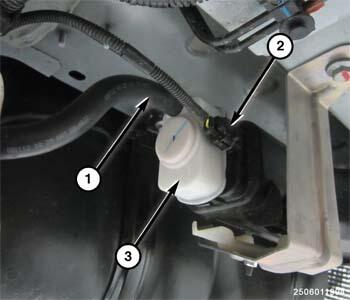

   Courtesy of CHRYSLER GROUP, LLC

3. Disconnect electrical connector (2) from ESIM switch.
4. Remove vapor canister filter line (1) from ESIM switch.

   Courtesy of CHRYSLER GROUP, LLC

5. A lock tab (1) is used on the back of the switch. Push lock tab towards switch while rotating switch counterclockwise 1/4 turn for removal.

   Courtesy of CHRYSLER GROUP, LLC

6. Remove the ESIM from the EVAP canister.
