Rear Outboard

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

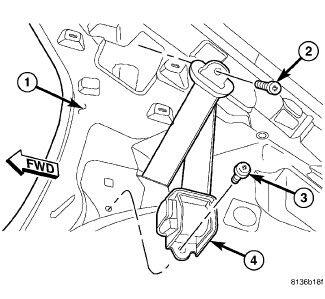

GC0207777Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear outboard seat belt and retractor unit (4) onto the inner C-pillar. Be certain to engage the retractor upper bracket T-tab into the keyed slot in the inner C-pillar.
  2. Install and tighten the screw (3) that secures the retractor lower bracket to the inner C-pillar. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  3. Position the seat belt turning loop onto the upper inner C-pillar. Be certain the seat belt webbing is not twisted between the retractor and the turning loop.
  4. Install and tighten the screw (2) that secures the seat belt turning loop to the inside of the upper C-pillar. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Install the trim panel onto the upper quarter inner panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .

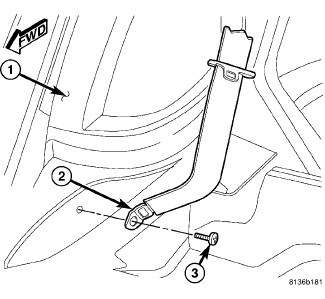

    GC0080217Courtesy of CHRYSLER GROUP, LLC
  6. Position the rear outboard seat belt lower anchor (2) to the quarter inner panel just forward of the rear wheel housing (1). Be certain the seat belt webbing is not twisted between the upper C-pillar and the lower anchor.
  7. Install and tighten the screw (3) that secures the rear outboard seat belt lower anchor to the quarter inner panel. Tighten the screw to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
