Rear Center

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

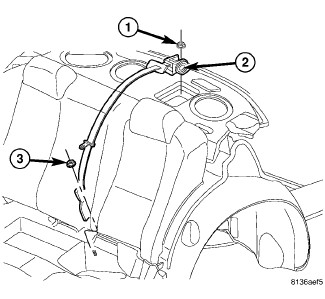

GC0080220Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear center seat belt and retractor unit (2) over the stud on the rear shelf panel support. Be certain to engage the anti-rotation tab on the retractor bracket into the clearance hole in the shelf panel support.
  2. Install and tighten the nut (1) that secures the retractor to the stud on the shelf panel support. Tighten the nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  3. Install the trim onto the rear shelf panel support. Refer to PANEL, REAR SHELF, INSTALLATION .
  4. Position the rear center seat belt and left rear seat belt buckle unit lower anchor plate over the mounting stud on the rear floor panel. The rear center seat belt shares the lower anchor plate with the left rear seat belt buckle. Be certain the seat belt webbing is not twisted between the retractor and the lower anchor plate.
  5. Install and tighten the nut (3) that secures the rear center seat belt and buckle unit lower anchor plate to the rear floor panel. Tighten the nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  6. Install the rear seat cushion into the vehicle. Refer to COVER, SEAT CUSHION, REAR, INSTALLATION .
