Module, Transmission Control: Installation: Installation
- Place the TCM in position on mounting plate.
Courtesy of CHRYSLER GROUP, LLC

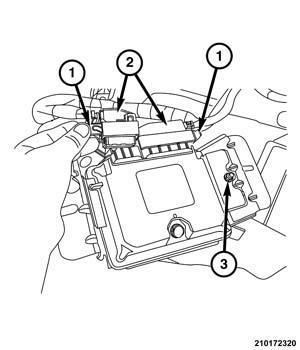

- Install the nut (3) to hold the TCM to the mounting plate.
- Connect the wire connectors (2) to the TCM.
- Engage the locks (1) on the wire connectors.
Courtesy of CHRYSLER GROUP, LLC

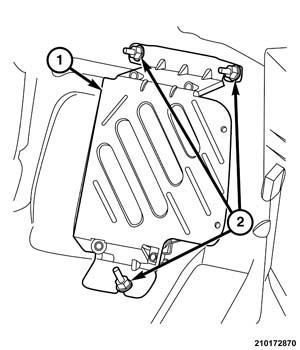

- Place the TCM mounting plate (1) in position on the floor, TCM down.
- Install the nuts (2) to hold the TCM mounting plate (1) to the floor.
- Roll the carpet in position on the dash panel.
- Install the side panel on the passenger side of the center floor console.
- Connect the battery negative cable clamp.
- Close the hood and road test the vehicle to verify the repair.
