Sensor, Active Damping: Installation: Front

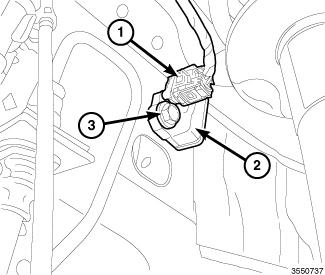

Fig 1: Damping Sensors
GC0152129Courtesy of CHRYSLER GROUP, LLC
NOTE:

Right side shown in illustration, left side similar.

  1. Position the sensor (2), install the sensor retaining bolt (3) and tighten to 9 N.m (80 in. lbs.).
  2. Connect the wiring harness connector (1) and seat the terminal locking tab.
