Module, Power Liftgate Control: Description: Description

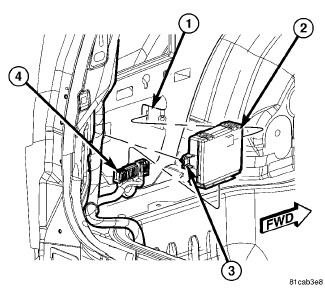

Vehicles equipped with a power liftgate system utilize a power liftgate control module (2). This module is located on the left side of the vehicle behind the quarter trim panel and below the quarter glass. The power liftgate control module receives and monitors logic inputs from all the power liftgate system switches. This module also contains the software technology to detect liftgate obstructions and stop or reverse the door accordingly.
