Module, Glow Plug: Installation: Installation

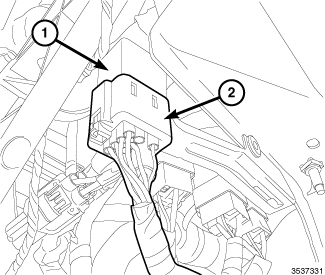

Fig 1: Glow Plug Module Wire Harness Connector & Glow Plug Module

Courtesy of CHRYSLER GROUP, LLC

1. Position the glow plug module (1) and install the push pin retainer.
2. Connect the glow plug module wire harness connector (2).
3. Install the left wheel house splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION or SHIELD, SPLASH, LEFT REAR WHEELHOUSE, INSTALLATION .
4. Install the left front wheel and tire. Refer to INSTALLATION .
5. Connect the negative battery cable.
