B1427-Remote Radio Switch Input Circuit High: Notes

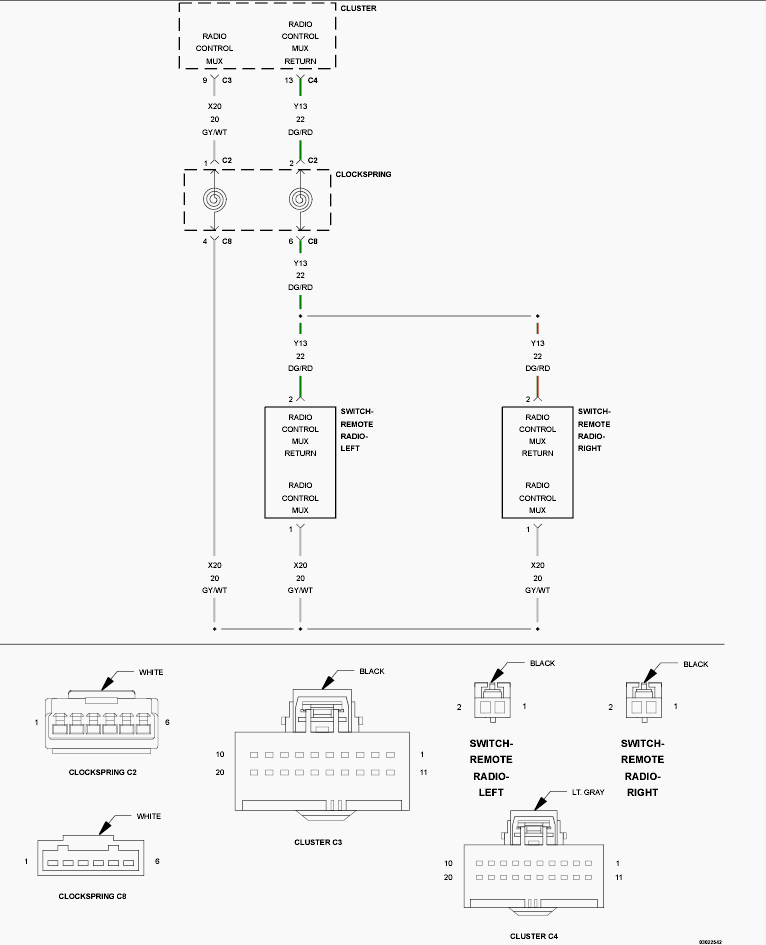

Fig 1: Remote Radio Switch Input Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
