Left Hand Drive

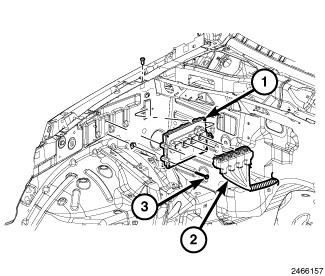

Fig 1: PCM, Screws & Electrical Connectors
GC0138954Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the PCM electrical connectors (2).
  3. Remove the PCM mounting screws (3).
  4. Remove the PCM (1) from vehicle.
