Installation - NGC Controller

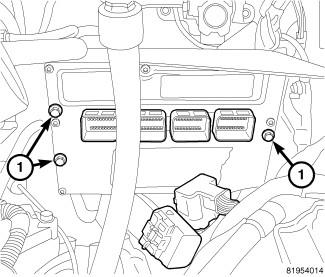

Fig 1: MOUNTING SCREWS/ELECTRICAL CONNECTORS

Courtesy of CHRYSLER LLC

NOTE: USE THE SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.

Install PCM to bracket with 3 fasteners (1).

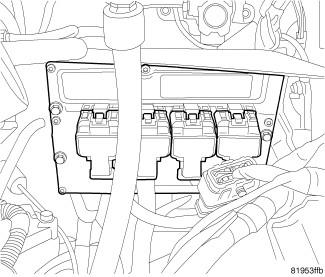

Fig 2: PCM INSTALLED
Courtesy of CHRYSLER LLC
Install and lock the 4 electrical connectors to the PCM.
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
Use the scan tool to reprogram new PCM with vehicles original Identification Number (VIN) and original vehicle mileage.
