Transfer Case Selector Switch Connector End View

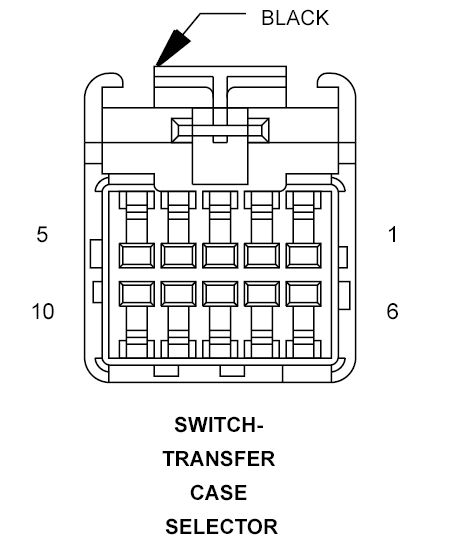

SWITCH-TRANSFER CASE SELECTOR - BLACK 10-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K77 22BR/WT |
TRANSFER CASE POSITION SENSOR INPUT |
| 2 |
- |
- |
| 3 |
Y13 22VT/YL |
SIGNAL RETURN |
| 4 |
E12 20OR/GY |
PANEL LAMPS DRIVER |
| 5 |
Z911 20BK/VT |
GROUND |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
