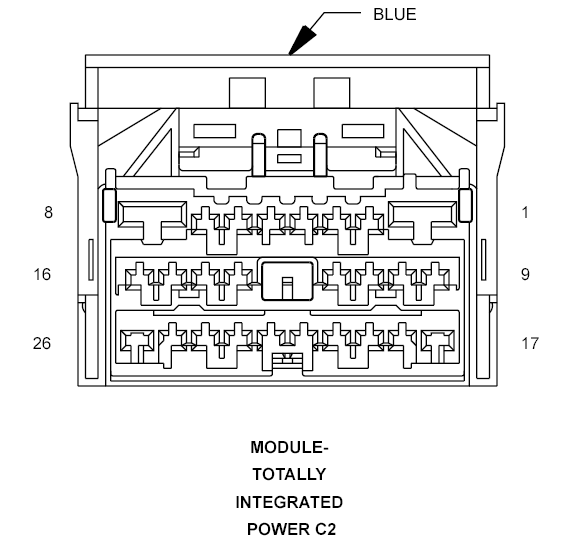

Totally Integrated Power Module Connector End View (C2)
MODULE-TOTALLY INTEGRATED POWER C2 - BLUE 26-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | F344 16BR/GY | FUSED ASD RELAY OUTPUT |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | F942 18PK/LG | |
| 8 | T750 12YL/GY | STARTER RELAY OUTPUT |
| 9 | A209 18RD | FUSED B(+) |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | K51 20BR/WT | ASD RELAY CONTROL |
| 14 | K51 20WT/LB | ASD RELAY CONTROL (4.0L) |
| 15 | - | - |
| 16 | - | - - |
| 17 | Z933 14BK | GROUND |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | F202 20PK/GY | FUSED RUN/START RELAY OUTPUT |
| 23 | - | - |
| 24 | T752 20DG/OR | STARTER RELAY CONTROL |
| 25 | - | - |
| 26 | T16 16YL/OR | TRANSMISSION CONTROL OUTPUT |
| 26 | T16 14YL/OR | TRANSMISSION CONTROL OUTPUT (4.0L) |
