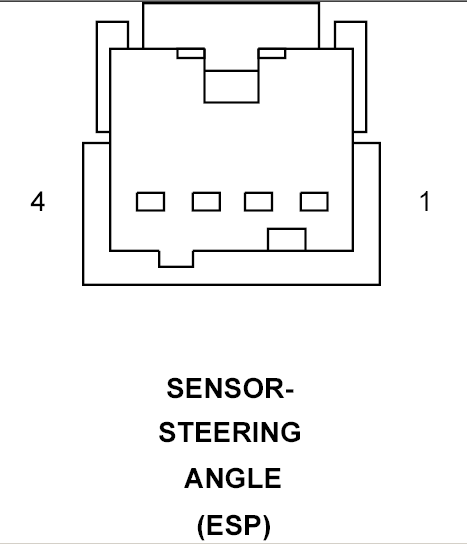

Steering Angle Sensor (Electronic Stability Program) Connector End View
SENSOR-STEERING ANGLE - 4-WAY (ESP) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | D65 20WT/BK | CAN C BUS (+) |
| 2 | D64 20WT/LB | CAN C BUS (-) |
| 3 | Z910 20BK/RD | GROUND (EVIC) |
| 3 | Z910 20BK/RD | GROUND (EXCEPT EVIC/EXCEPT REAR SEAT VIDEO) |
| 3 | Z910 20BK/TN | GROUND (EXCEPT EVIC/REAR SEAT VIDEO) |
| 4 | F943 18PK/LG | FUSED RUN/START RELAY OUTPUT |
