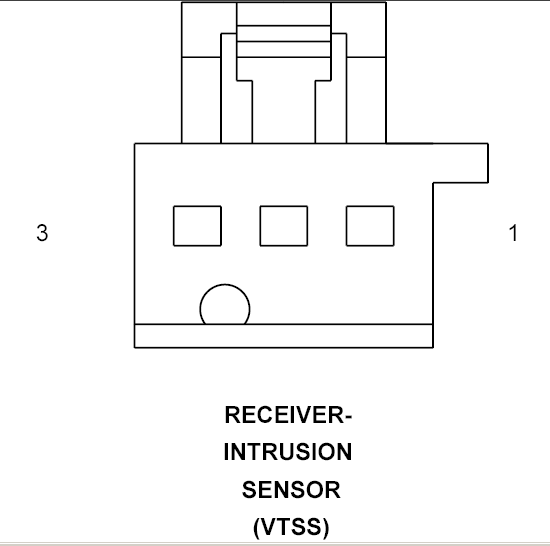

Intrusion Sensor Vehicle Theft Security System Receiver Connector End View
RECEIVER-INTRUSION SENSOR - 3-WAY (VTSS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
G460 20DG/VT |
INTRUSION RECEIVER SENSOR SIGNAL |
| 3 |
G946 20LG/VT |
INTRUSION RECEIVER SENSOR GROUND |
