Infrared Sensor Connector End View

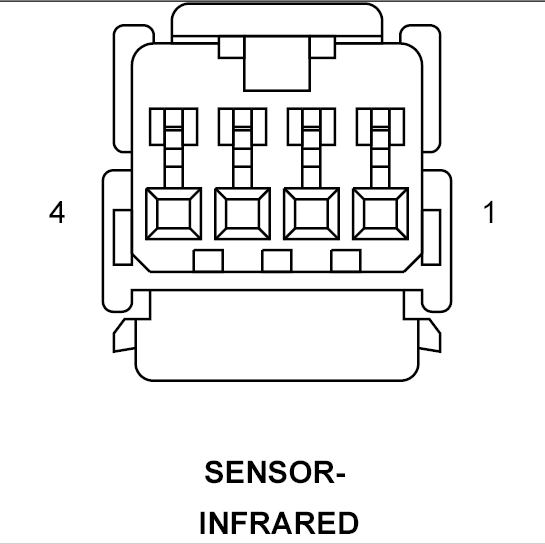

SENSOR-INFRARED - 4-WAY

GKA880374Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F921B 20PK/YL FUSED RUN RELAY OUTPUT
2 - -
3 C83 22DB/LG INFRARED SENSOR SIGNAL
4 C830 22DB/YL IR SENSOR RETURN
